Installation Procedure

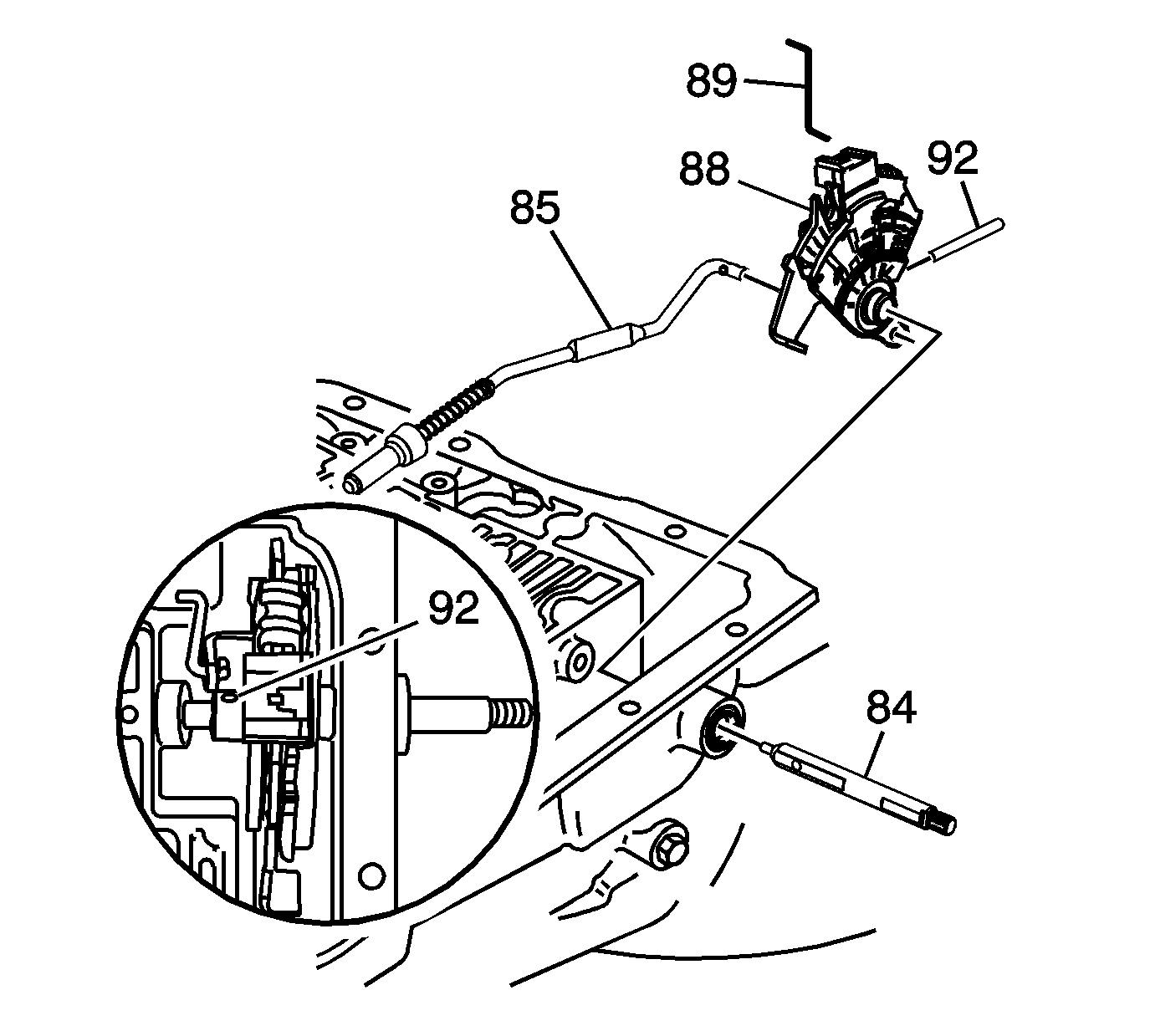

    Fig 1: Identifying Manual Shift Detent Lever with Shaft Position Switch Assembly Components
    GM2035543Courtesy of GENERAL MOTORS CORP.
  1. Inspect the following items:
    • Manual shaft (84) for damage or burrs
    • Parking lock actuator assembly (85) for damage
    • Manual shift detent lever with shaft position switch assembly (88) for damage or cracks
    • Manual valve link (89) for damage
    • Manual shift detent lever pin (92) discard - Do NOT reuse.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the following items:
    • Manual shift detent lever with shaft position switch assembly (88)
    • Parking lock actuator assembly (85)
    • Manual shaft (84) (model dependent)
    • NEW manual shift detent lever pin (92)
    • Manual valve link (89)

      Tighten the nut to 31 N.m (23 lb ft).

  3. Install the transmission oil pan and filter. Refer to Automatic Transmission Fluid and Filter Replacement .
