Clearance Lamp




Component Connector End Views

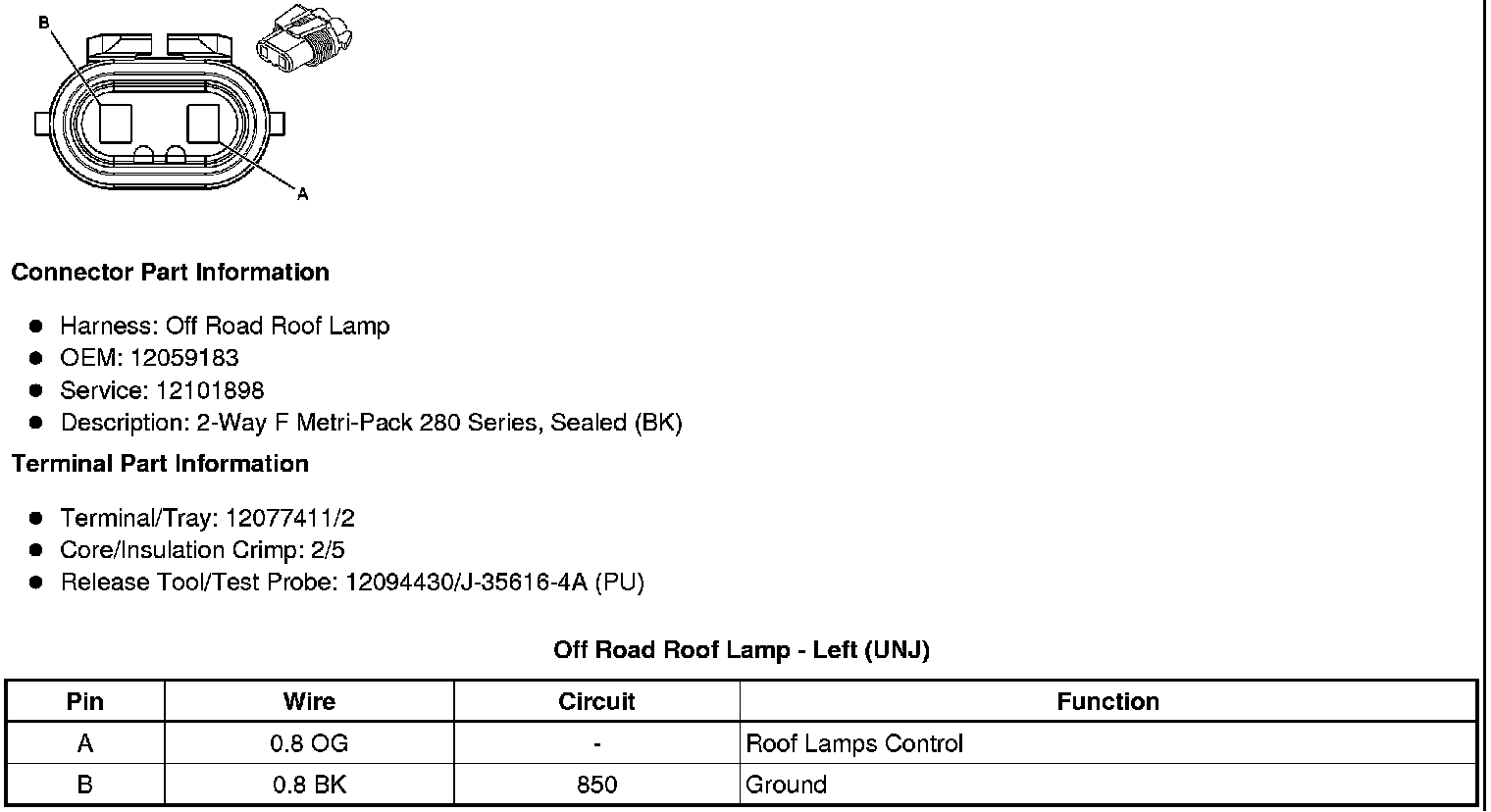

Off Road Roof Lamp - Left (UNJ)






Off Road Roof Lamp - Right (UNJ)

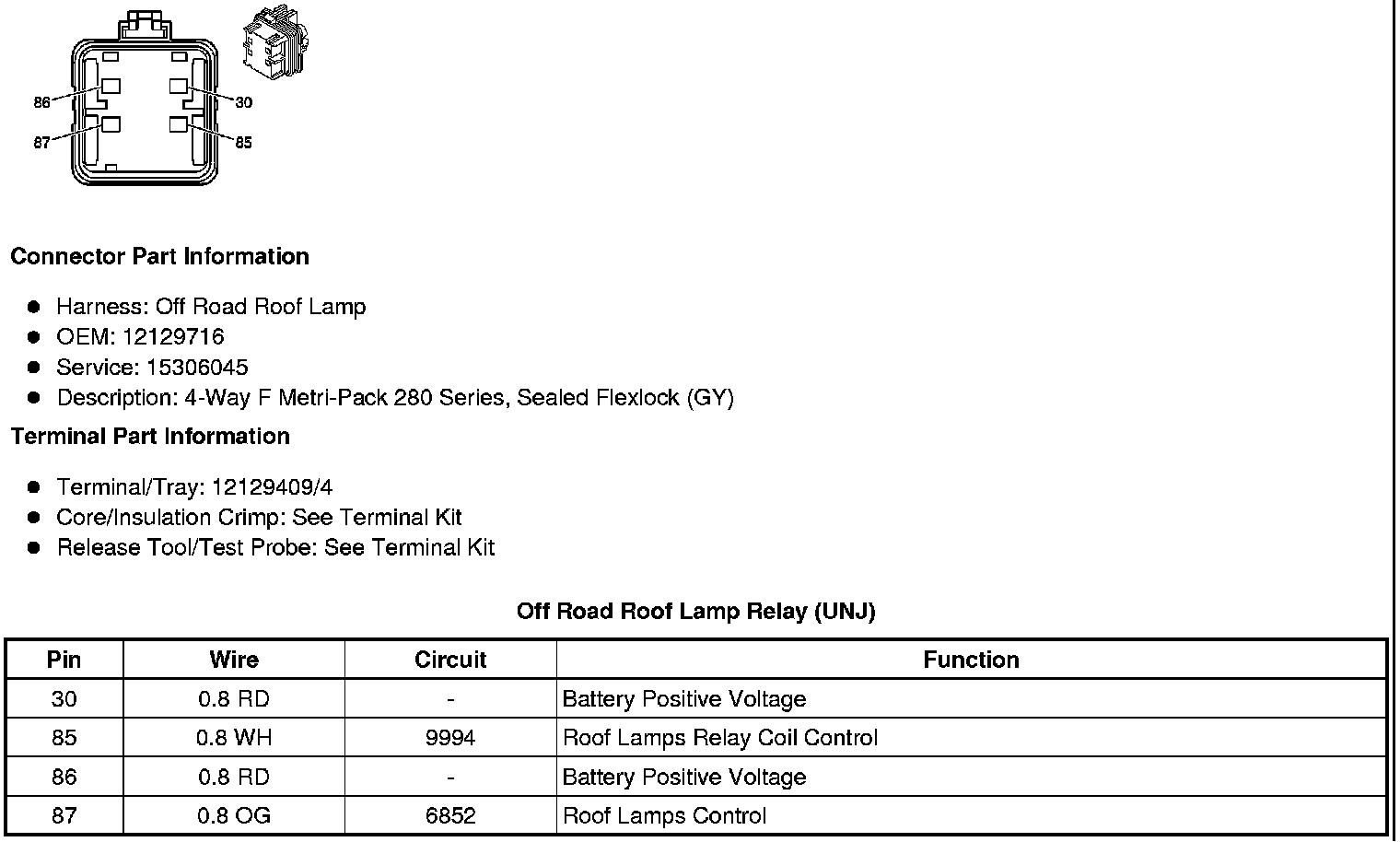

Off Road Roof Lamp Relay (UNJ)

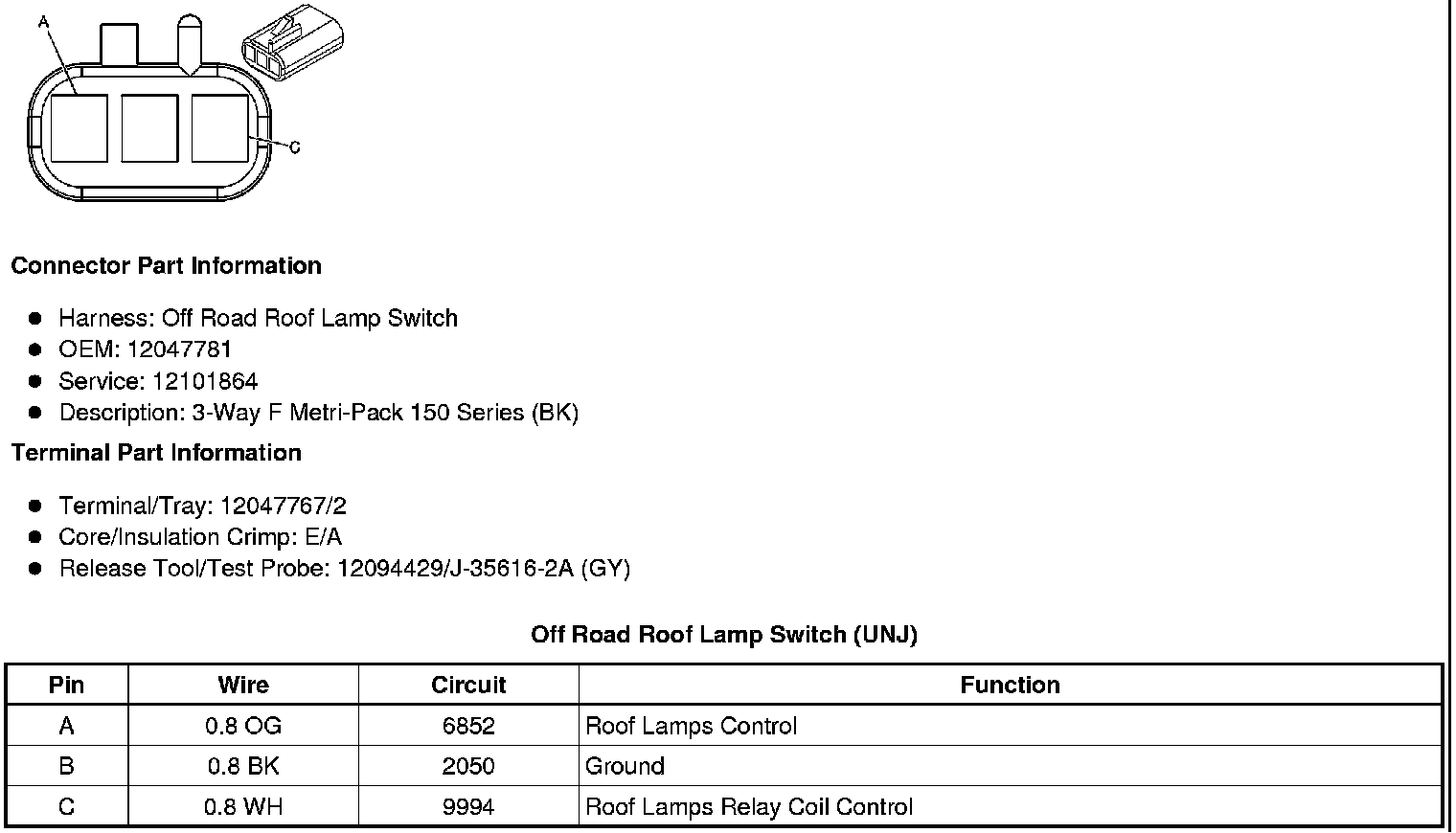

Off Road Roof Lamp Switch (UNJ)

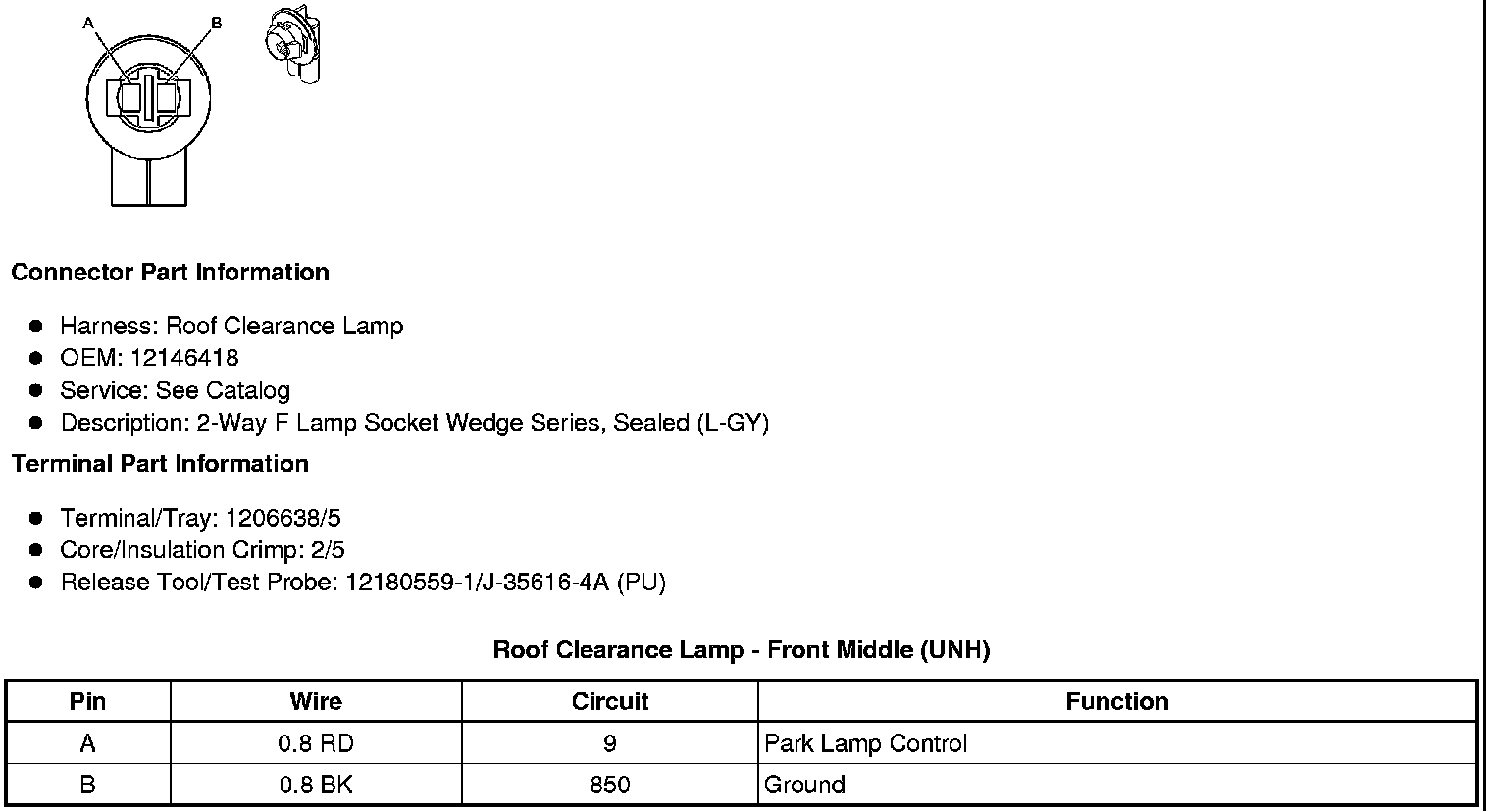

Roof Clearance Lamp - Front Middle (UNH)

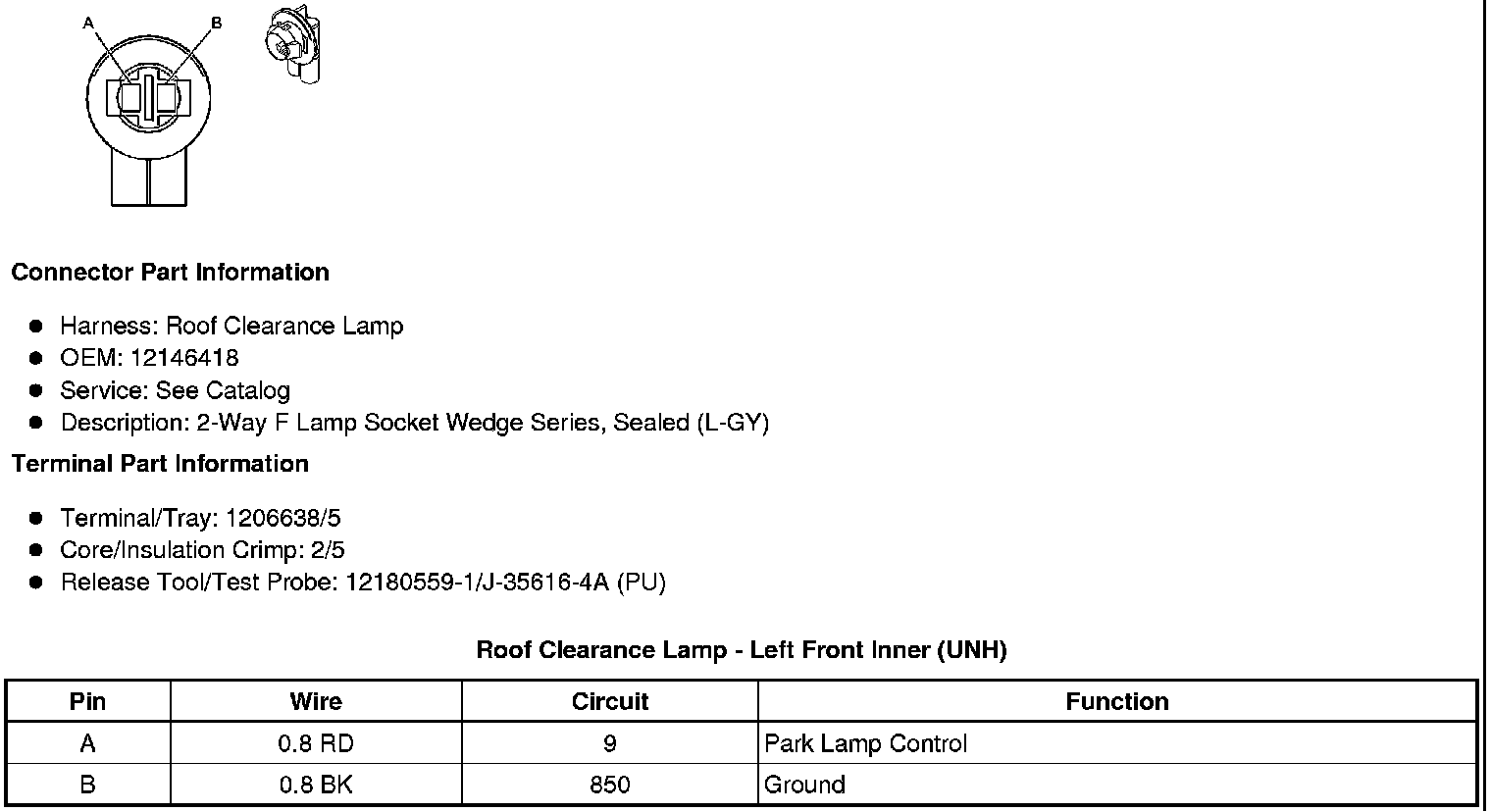

Roof Clearance Lamp - Left Front Inner (UNH)






Roof Clearance Lamp - Left Front Outer (UNH)






Roof Clearance Lamp - Right Front Inner (UNH)






Roof Clearance Lamp - Right Front Outer (UNH)
