Power Door Lock Actuator




Component Connector End Views

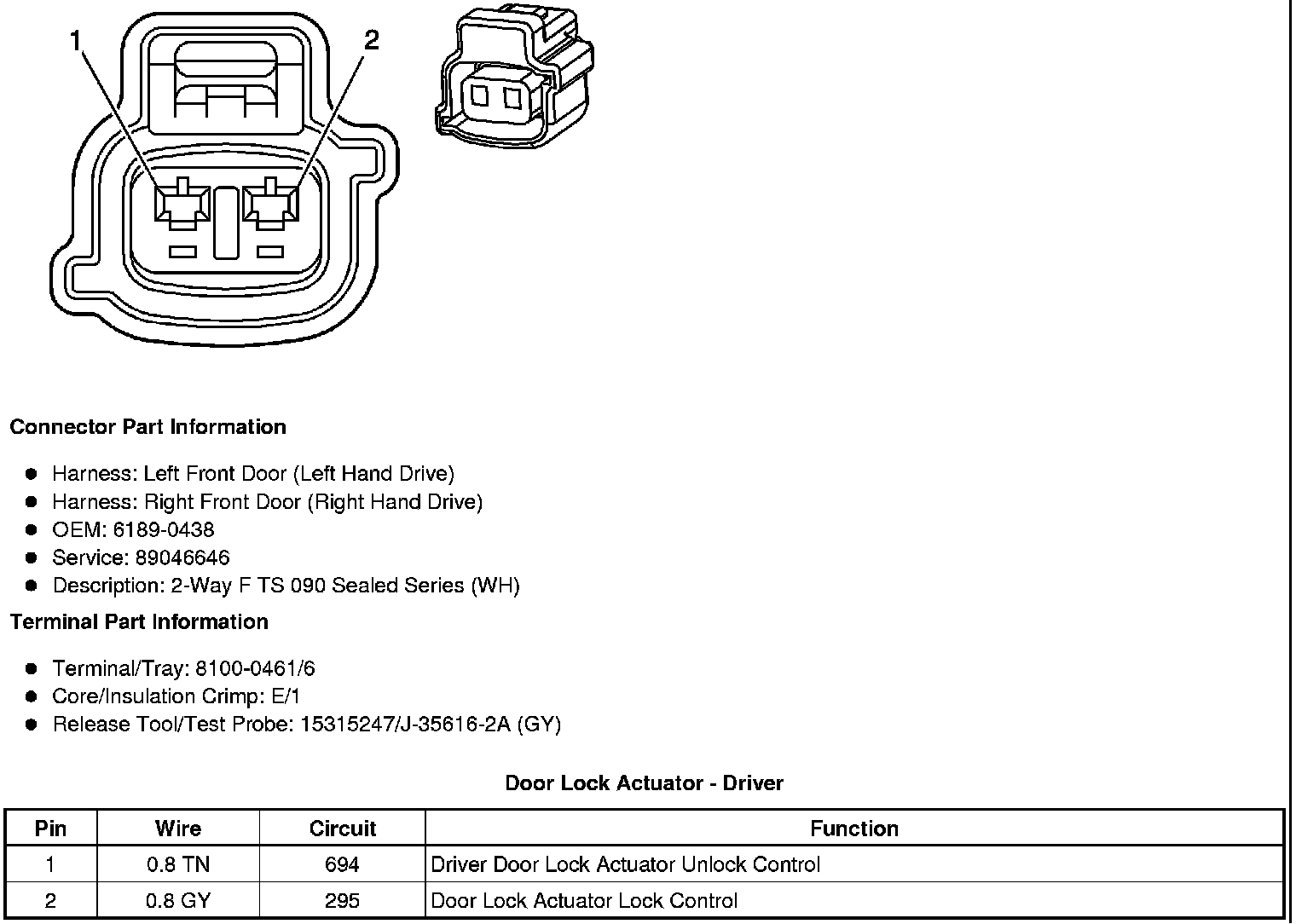

Door Lock Actuator - Driver

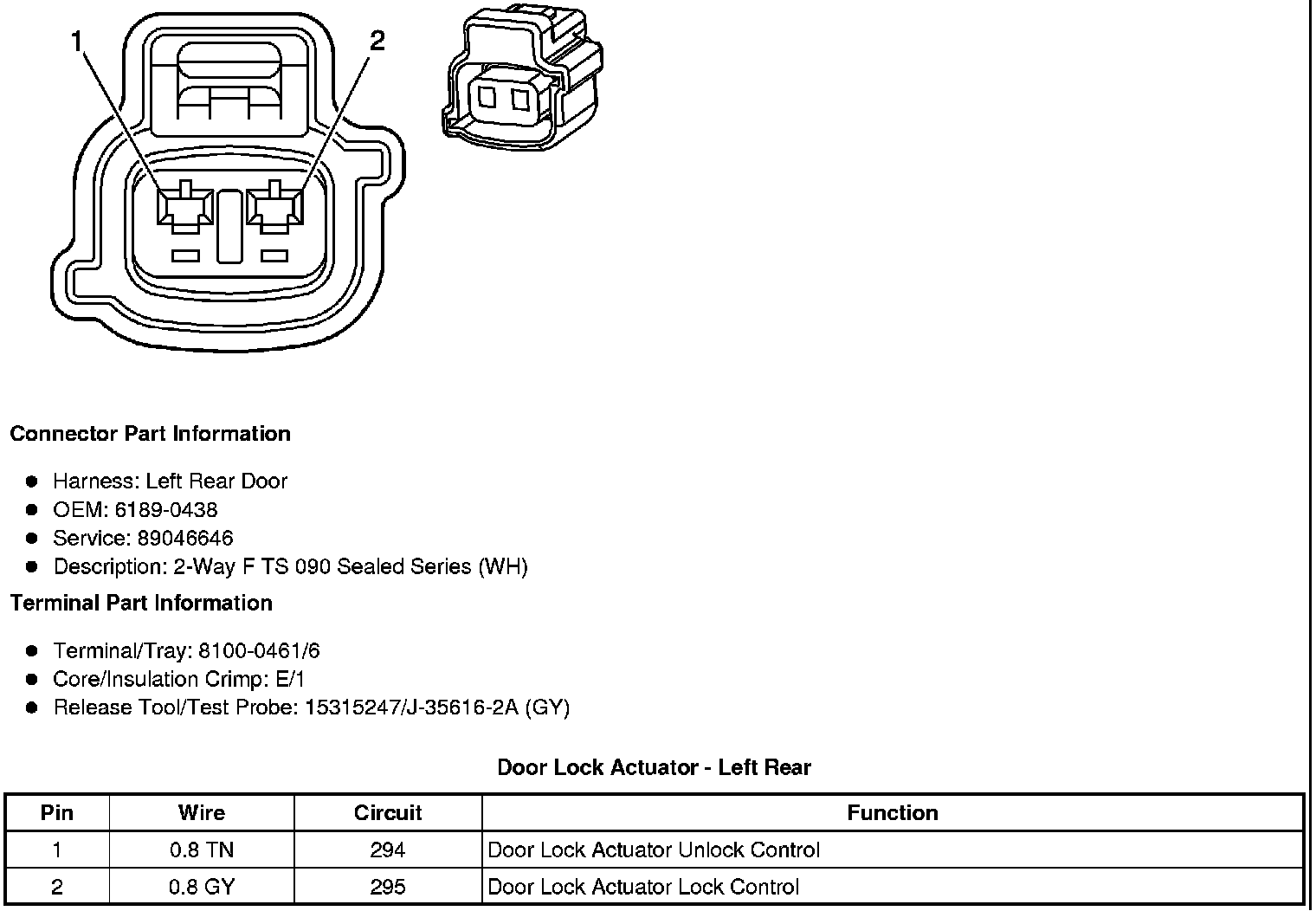

Door Lock Actuator - Left Rear

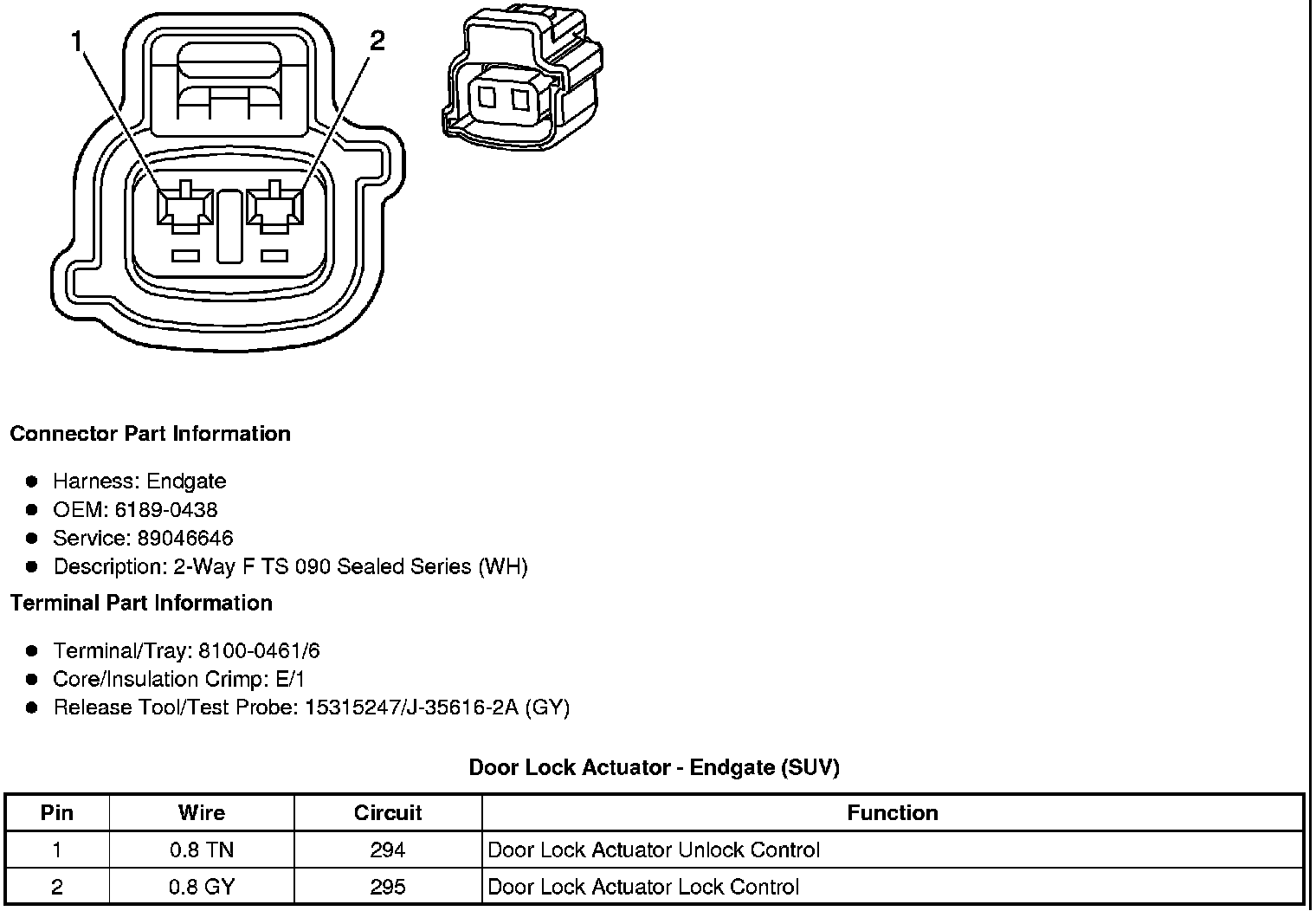

Door Lock Actuator - Endgate (SUV)

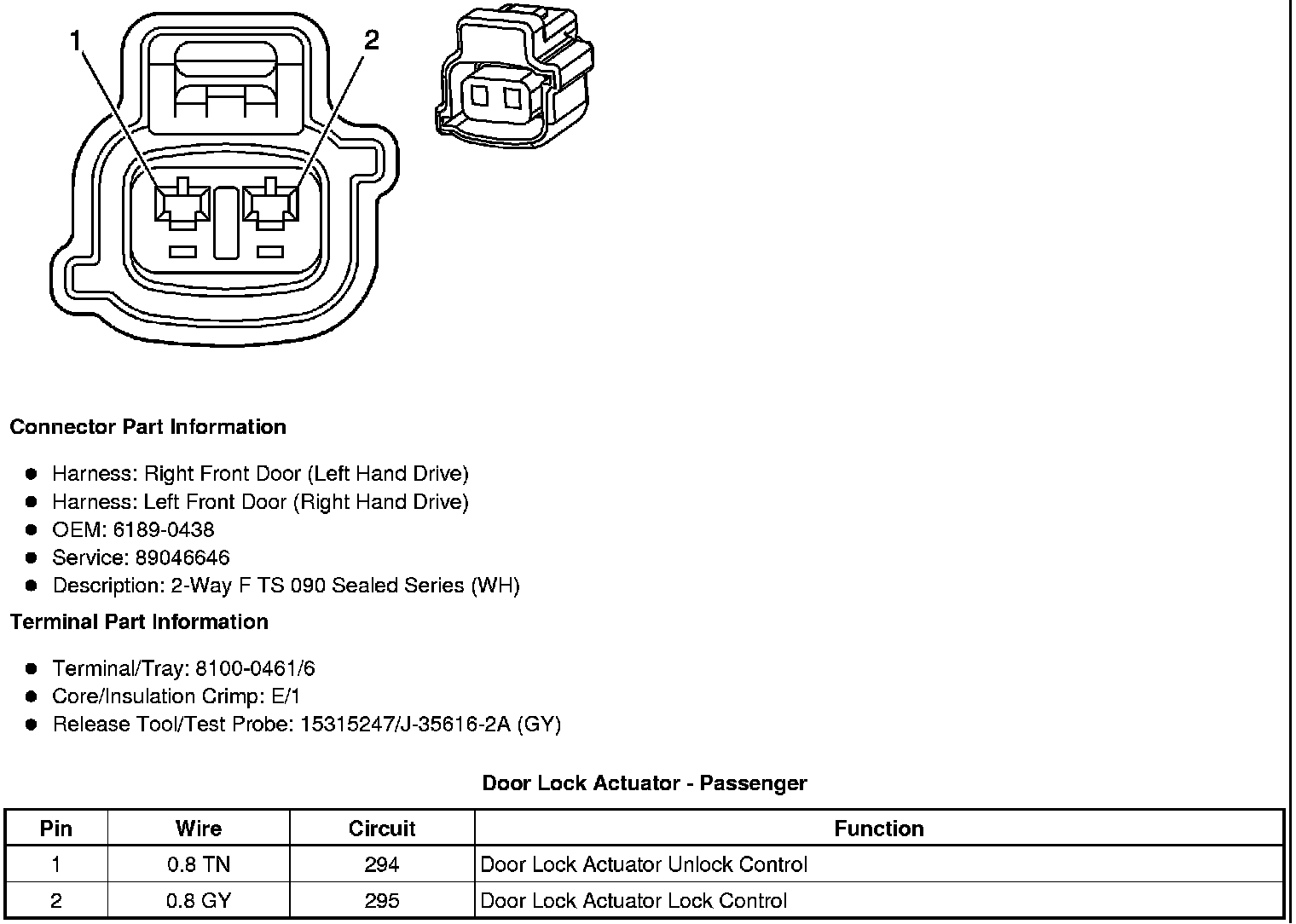

Door Lock Actuator - Passenger






Door Lock Actuator - Right Rear
