Power Seat Motor




Component Connector End Views

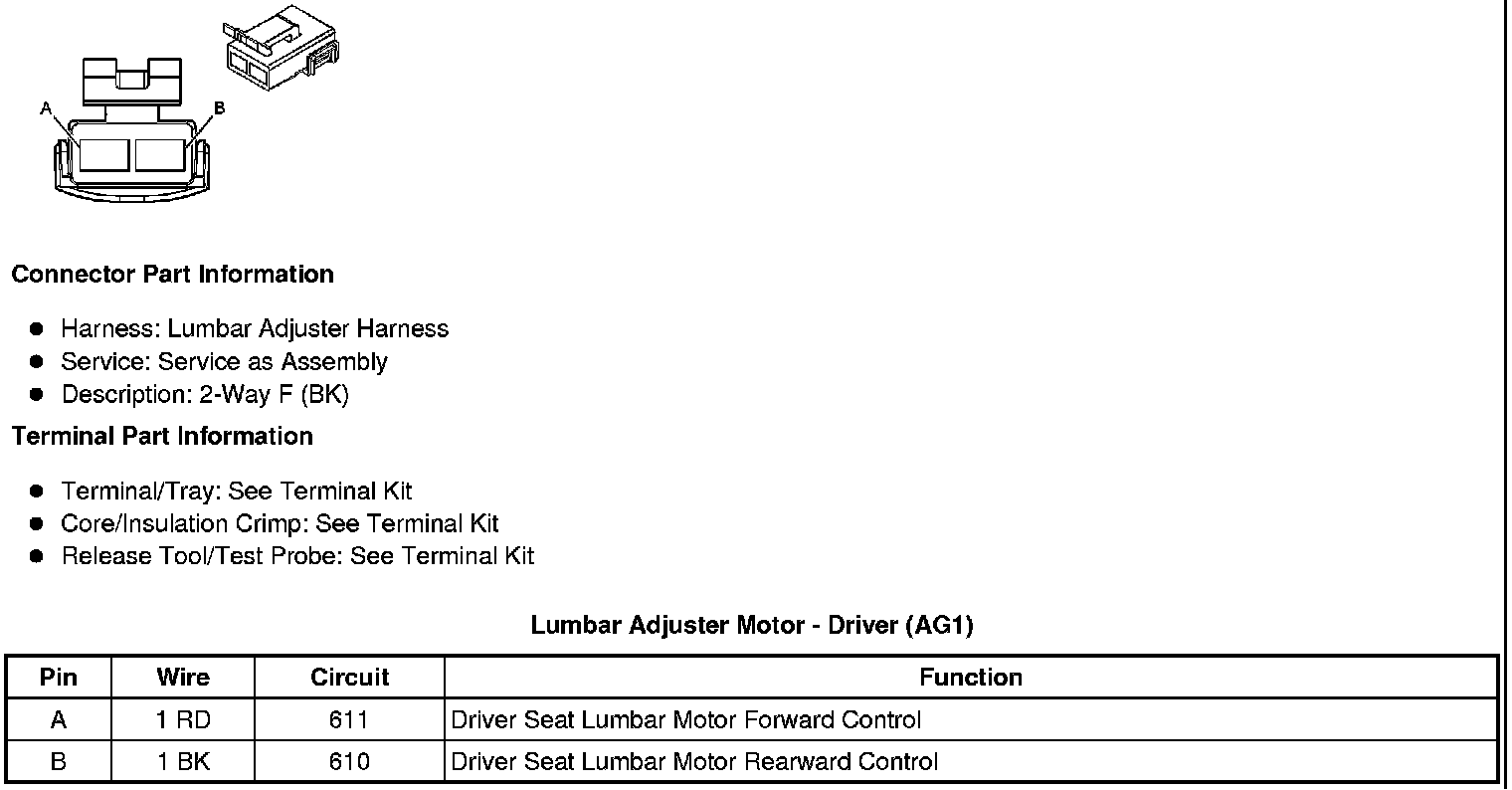

Lumbar Adjuster Motor - Driver (AG1)






Lumbar Adjuster Motor - Passenger (AG2)

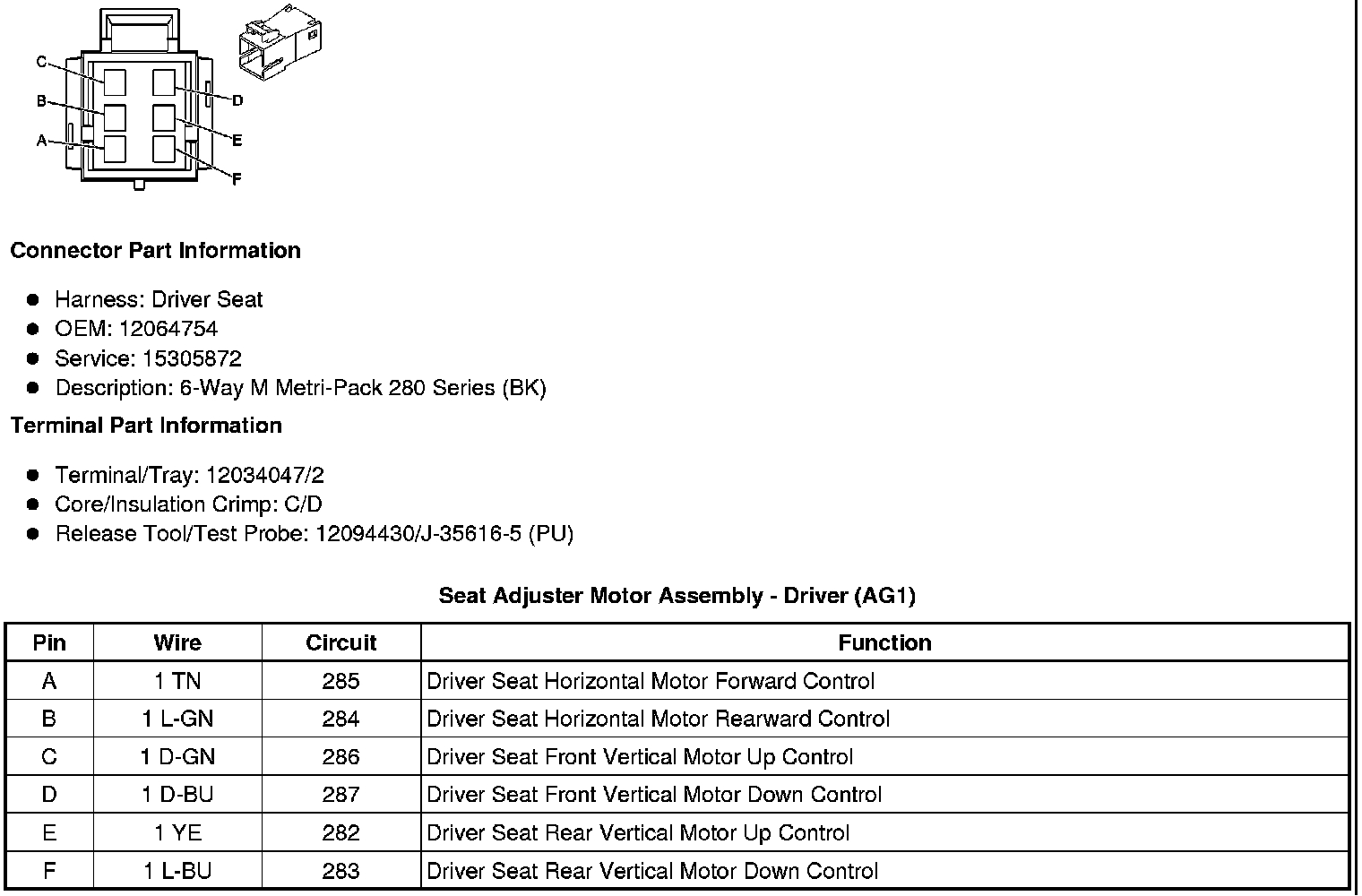

Seat Adjuster Motor Assembly - Driver (AG1)

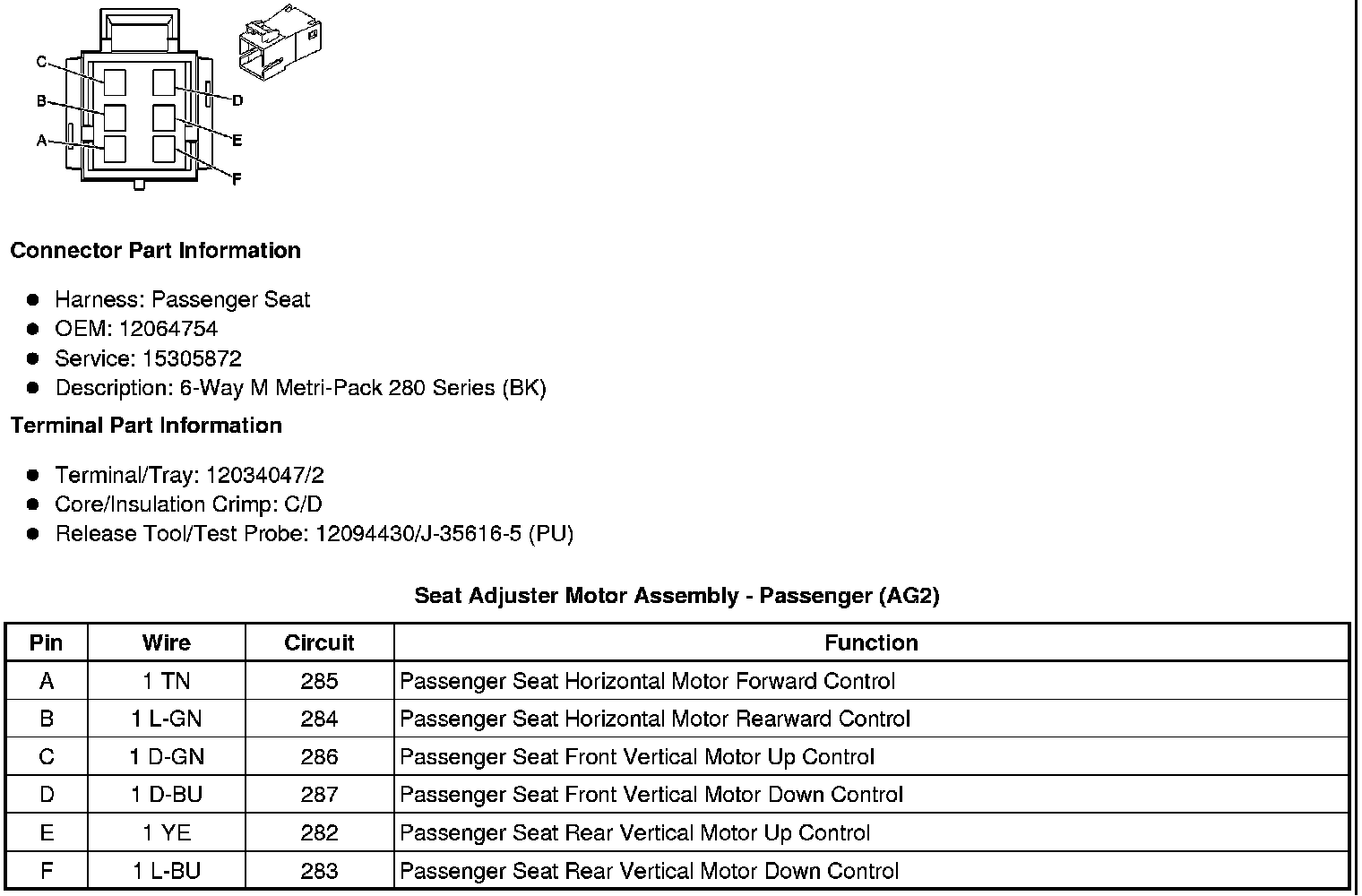

Seat Adjuster Motor Assembly - Passenger (AG2)
