Refrigerant Pressure Sensor / Switch: Service and Repair

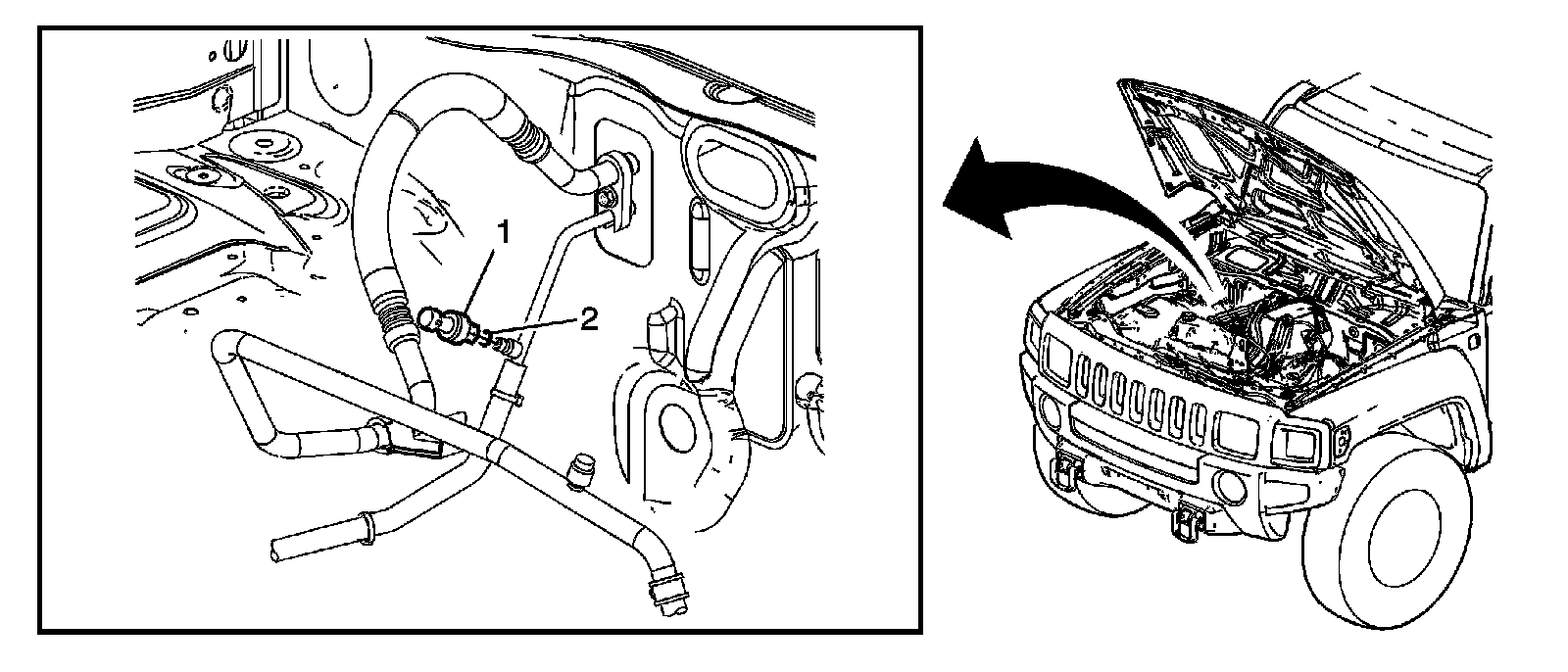

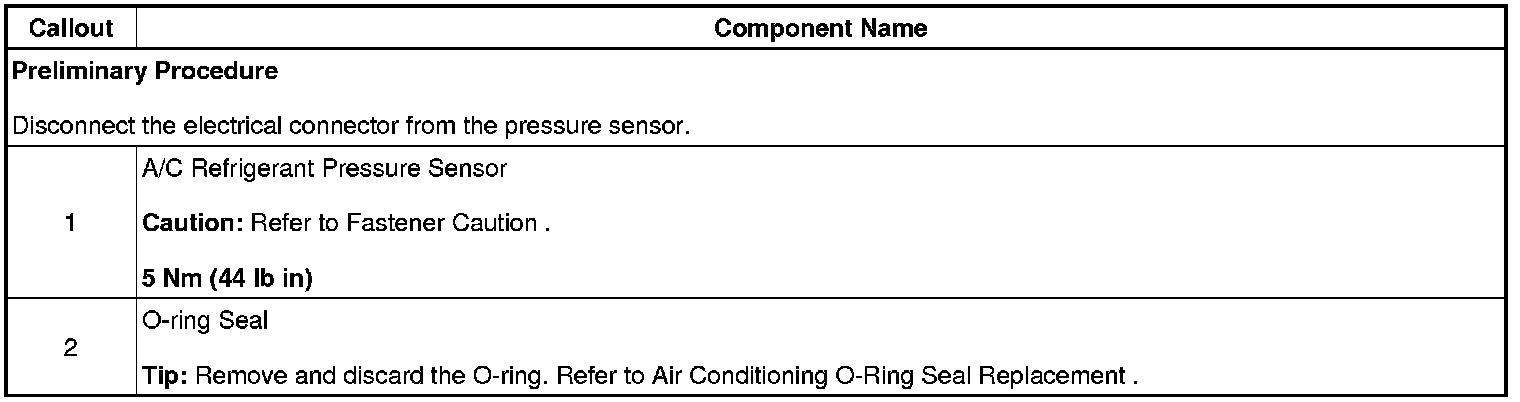

Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LLR) (3.7L)
