I/P Harness Routing

Harness Routing Views

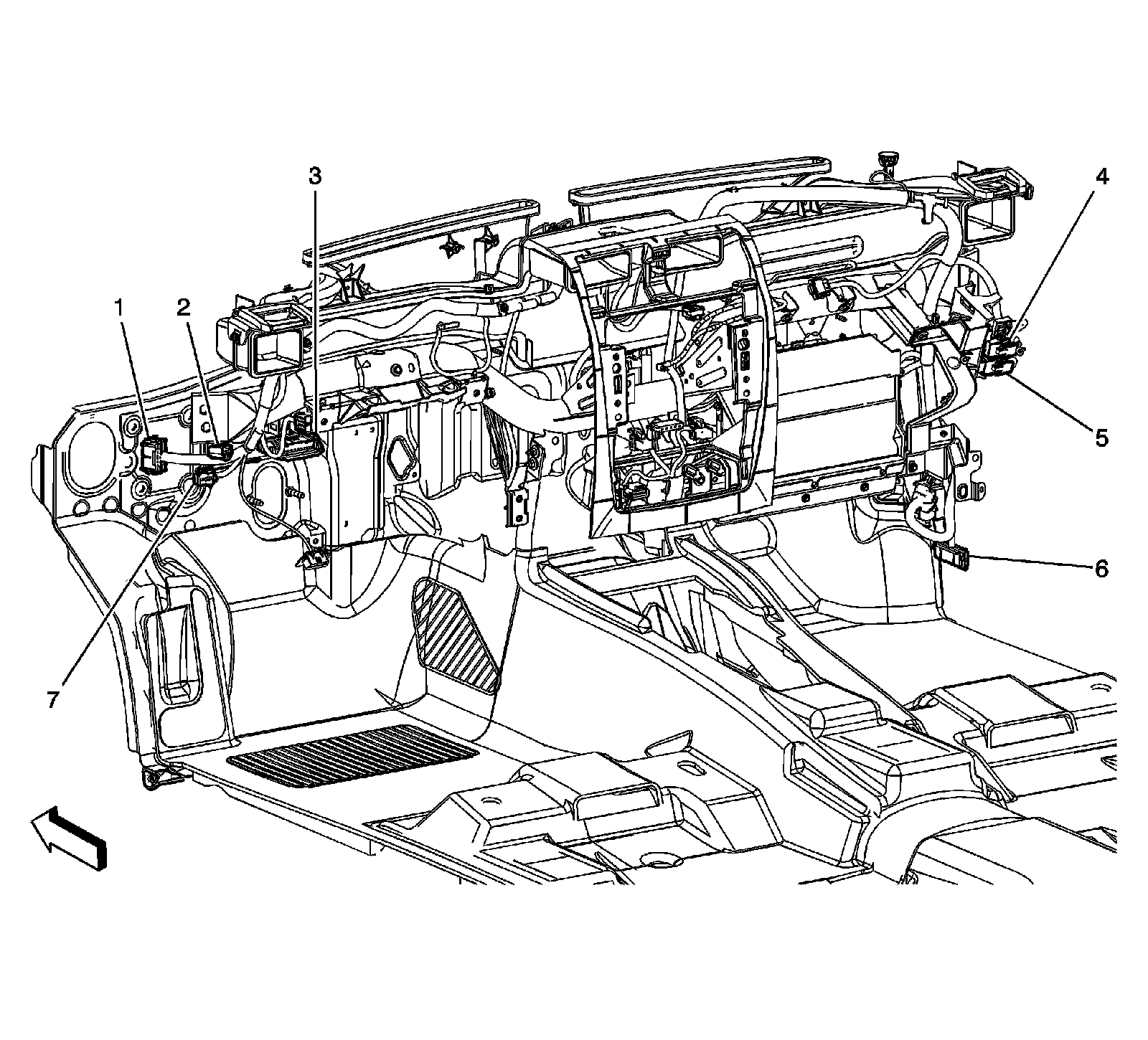

I/P Harness Routing (Left Hand Drive)




1 - X200
2 - X207
3 - X201
4 - X203
5 - X205
6 - X204
7 - X208

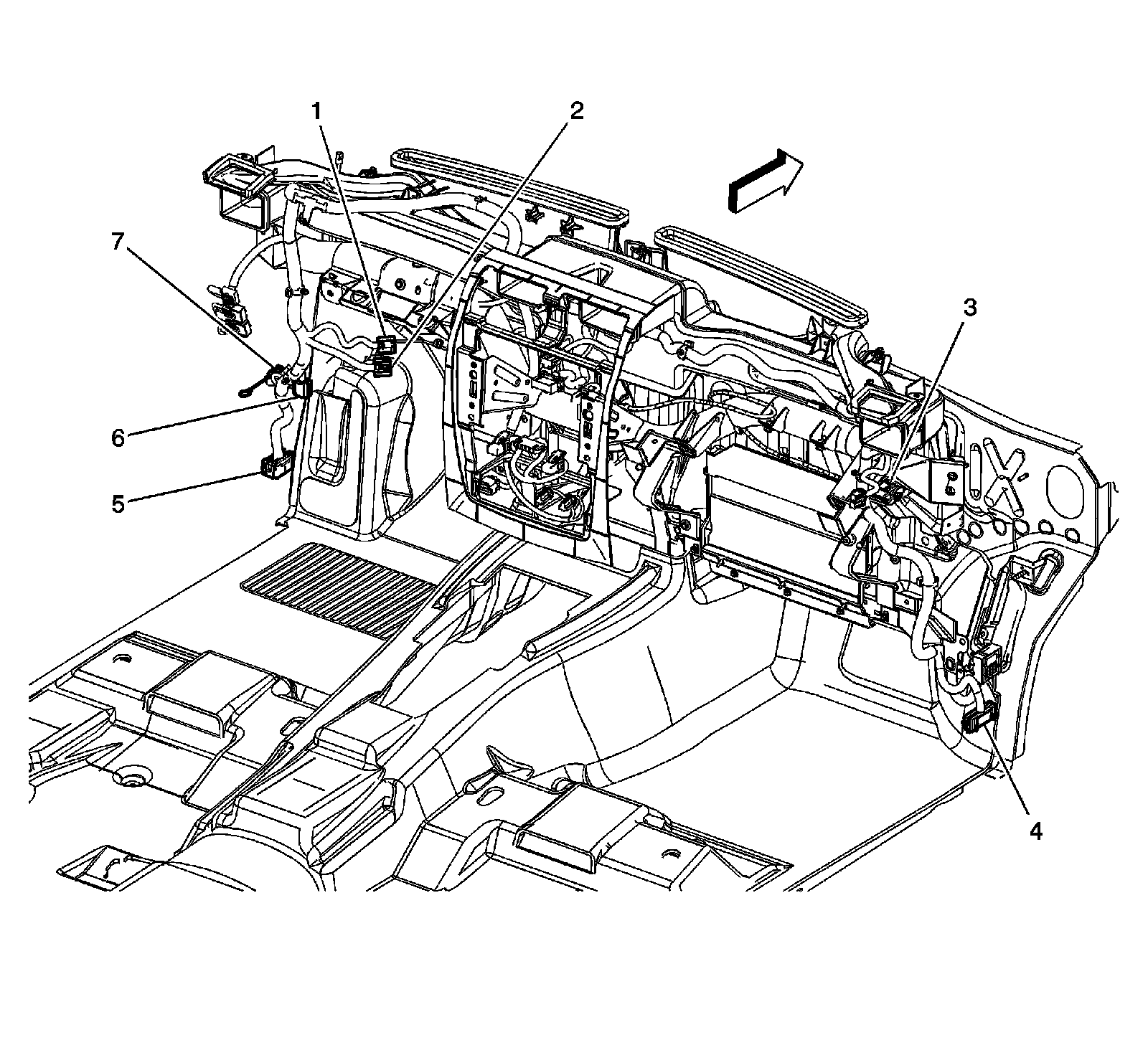

I/P Harness Routing (Right Hand Drive)




1 - X203
2 - X205
3 - X201
4 - X204
5 - X200
6 - X207
7 - X208
