Seat Position Sensor: Service and Repair

Inflatable Restraint Seat Position Sensor Replacement

Removal Procedure

1. Remove the seat from the vehicle. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket).
2. Ensure that the seat is in the full rear position.

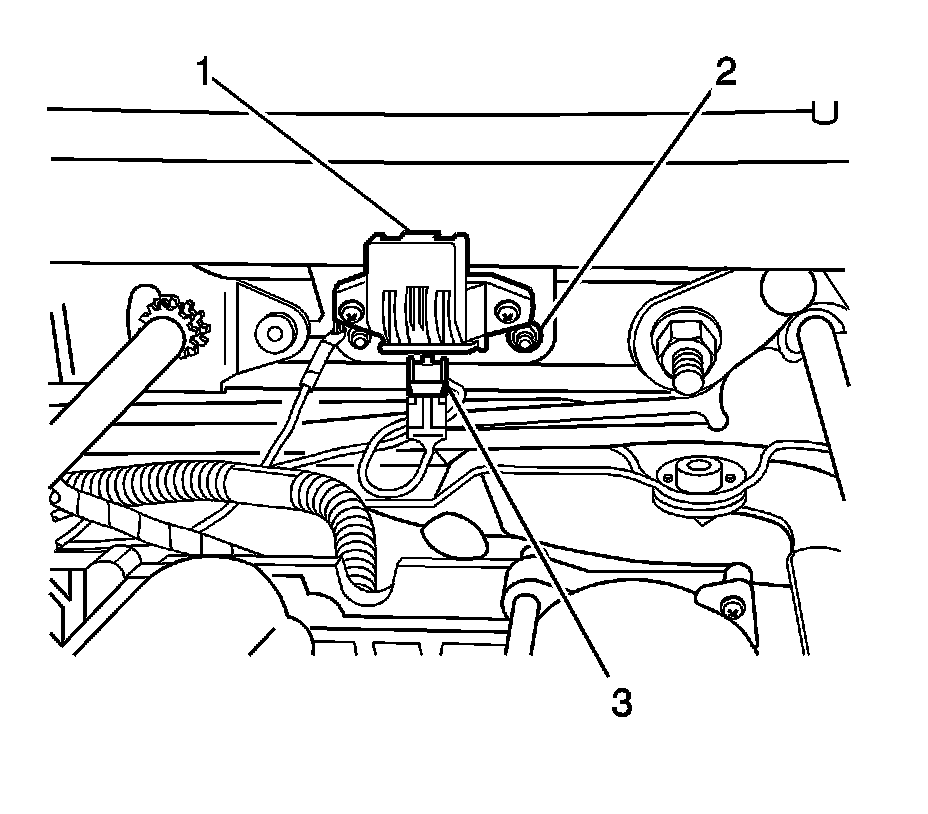

3. Locate the seat position sensor (1) under the seat on the inside of the inner seat rail.
4. Disconnect the electrical connector (3) from the seat position sensor (1).
5. Remove the 2 screws that retain the seat position sensor to the seat rail.
6. Remove the seat position sensor from the seat.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the seat position sensor (1) to the seat rail with 2 screws.

Tighten the seat position sensor screws to 9 Nm (79 lb in).

2. Connect the electrical connector (3) to the seat position sensor (1).
3. Install the seat in the vehicle. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket).
