Manual Detent Spring Installation




Manual Detent Spring Installation

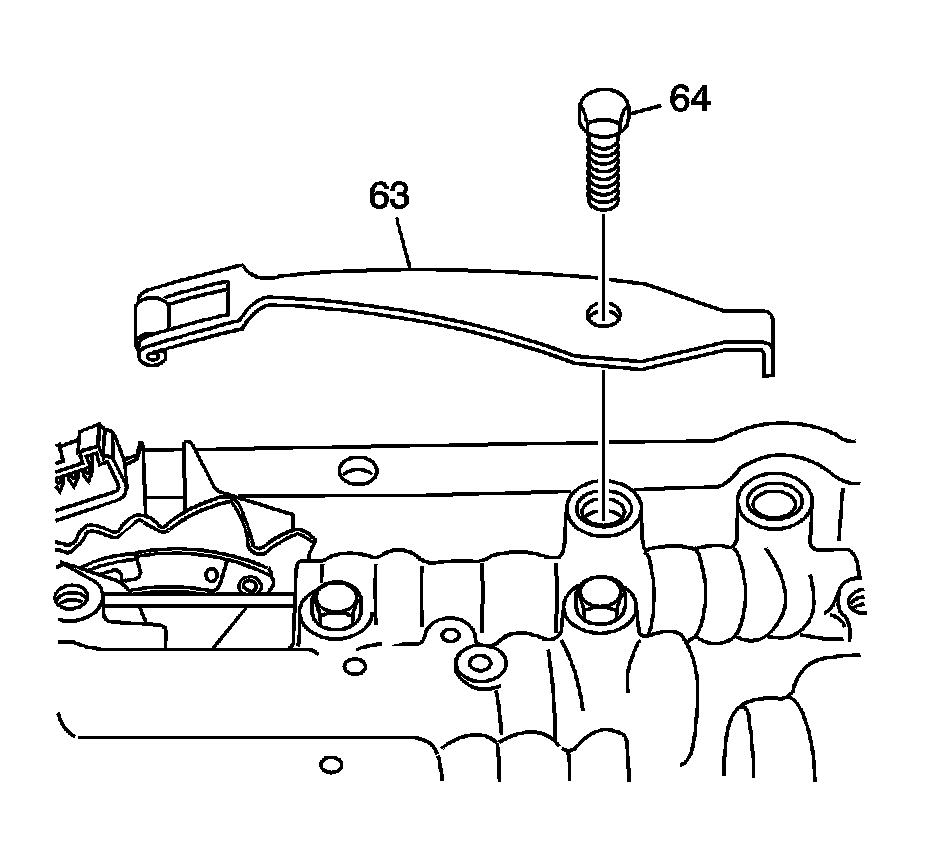

1. Inspect the manual detent spring assembly (63) for cracks or damage.
2. Install the manual detent spring assembly (63).

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the manual detent spring bolt (64). Tighten the bolt to 20-27 Nm (15-20 lb ft).
