Moveable Window Schematics

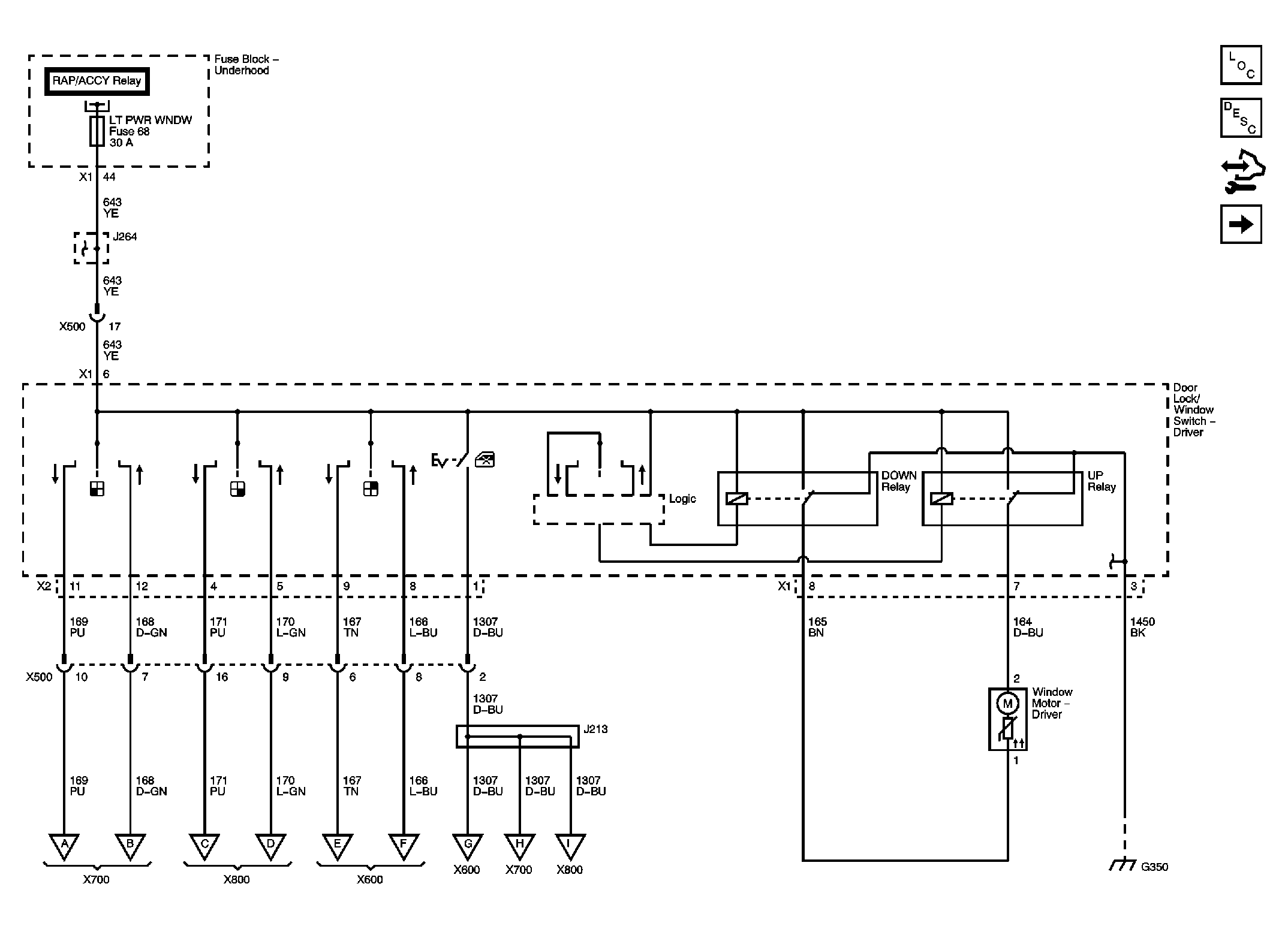

Fig 1: Driver Door (Left Hand Drive)

GM2244025

Courtesy of GENERAL MOTORS CORP.

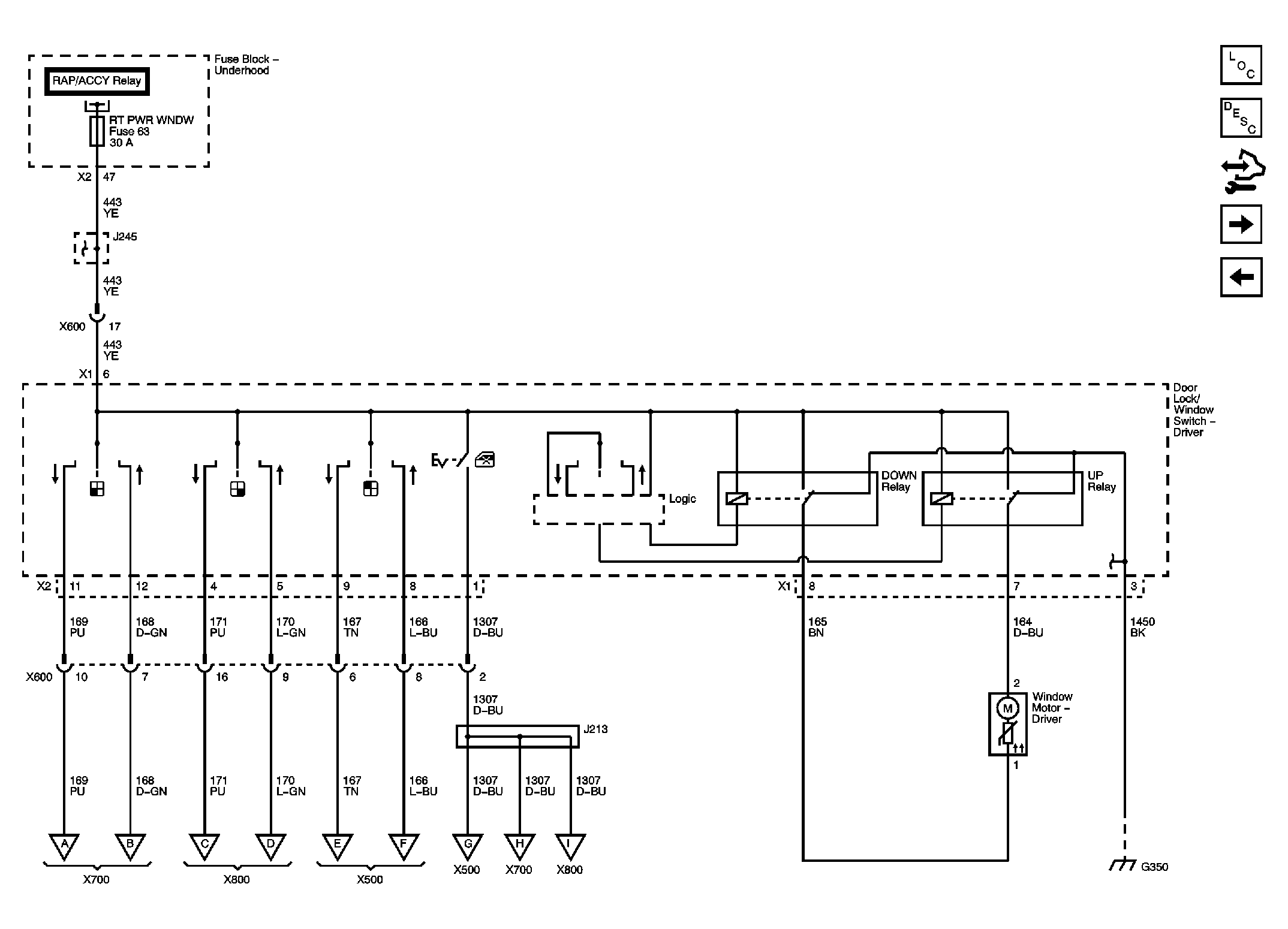

Fig 2: Driver Door (Right Hand Drive)

GM2244027

Courtesy of GENERAL MOTORS CORP.

Fig 3: Passenger Door (Left Hand Drive)

GM2244028

Courtesy of GENERAL MOTORS CORP.

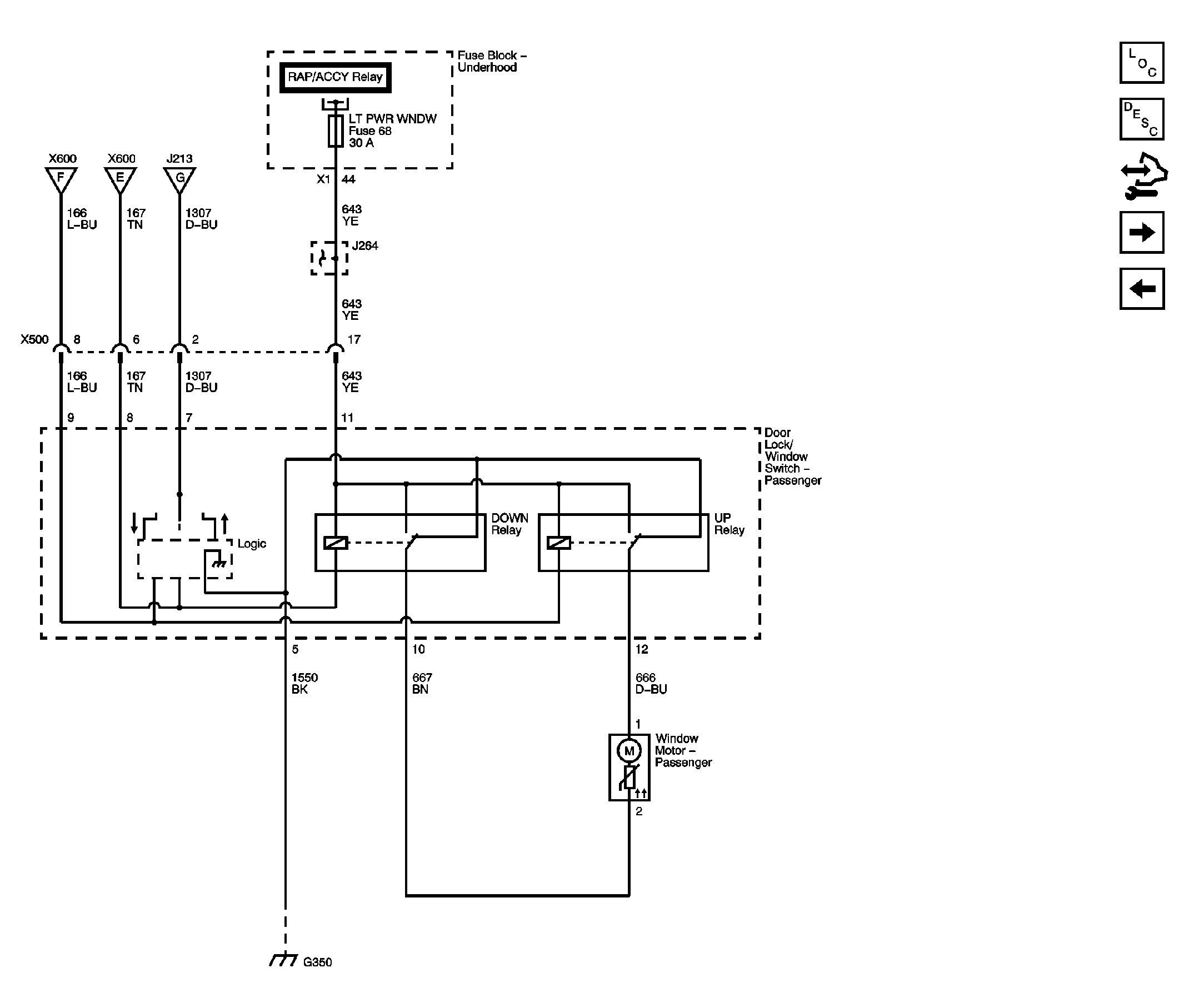

Fig 4: Passenger Door (Right Hand Drive)

GM2244029

Courtesy of GENERAL MOTORS CORP.

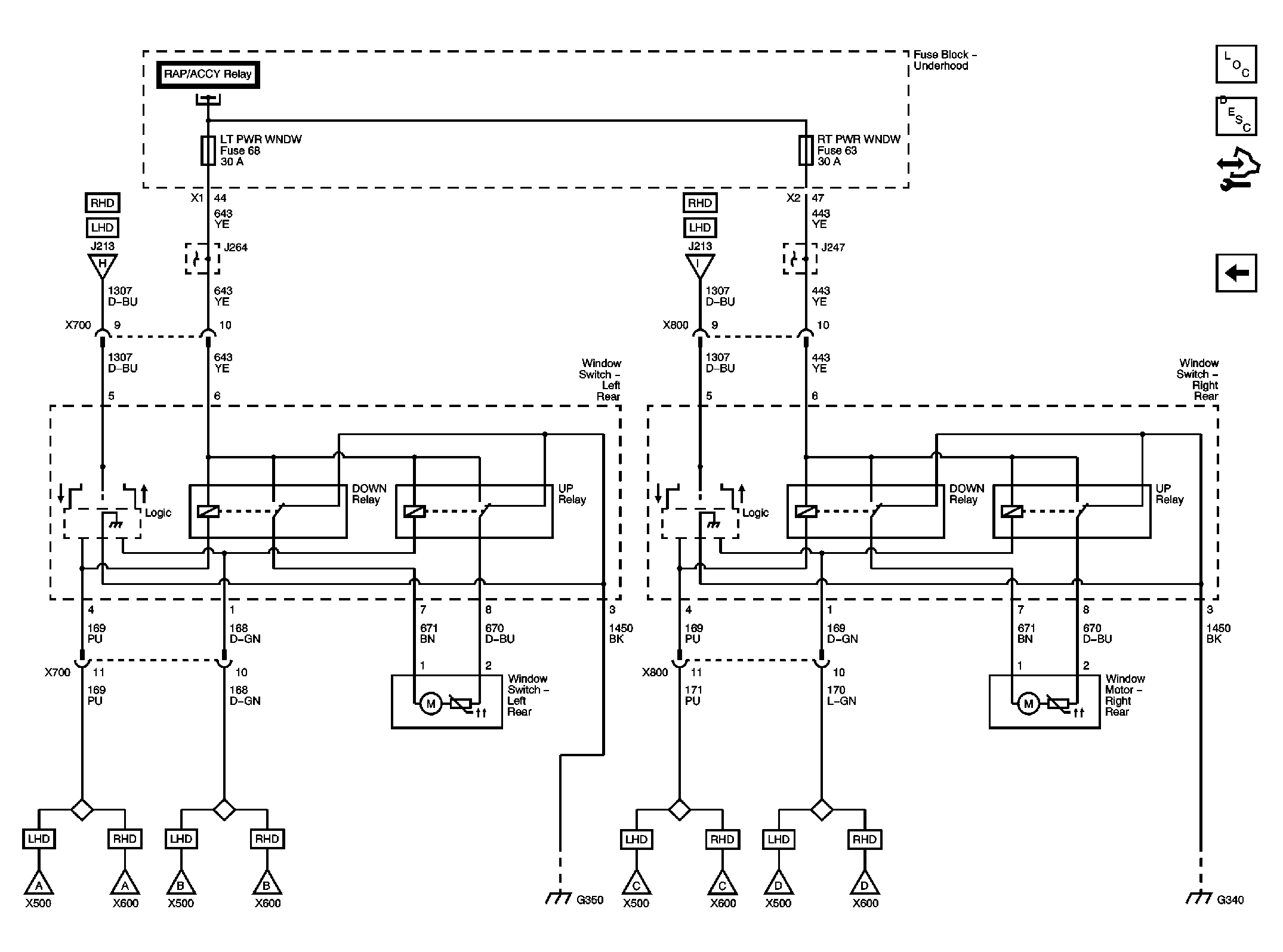

Fig 5: Rear Doors

GM2244030

Courtesy of GENERAL MOTORS CORP.
