Frontview Camera (UVF)

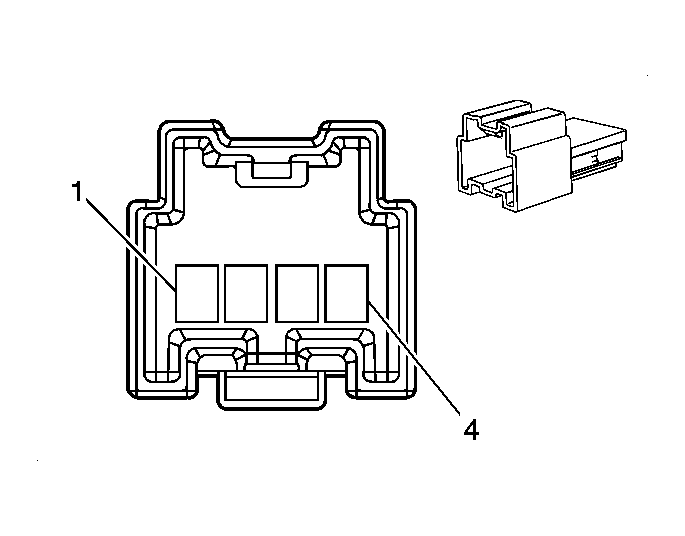

Fig 1: Frontview Camera (UVF)
GM1566804Courtesy of GENERAL MOTORS CORP.
Frontview Camera (UVF)

Pin Wire Circuit Function
1 0.5 RD 6201 6-Volt Reference
2 0.5 TN/BK 6202 Ground
3 0.5 WH 6798 Camera Video Signal (+)
4 0.5 BARE 6799 Camera Video Signal (-)
Connector Part Information
  • Harness: Frontview Camera Body
  • OEM: 6098-4903
  • Service: 88988639
  • Description: 4-Way M (BK)
Terminal Part Information
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
