Turn Signal Switch Bracket Replacement

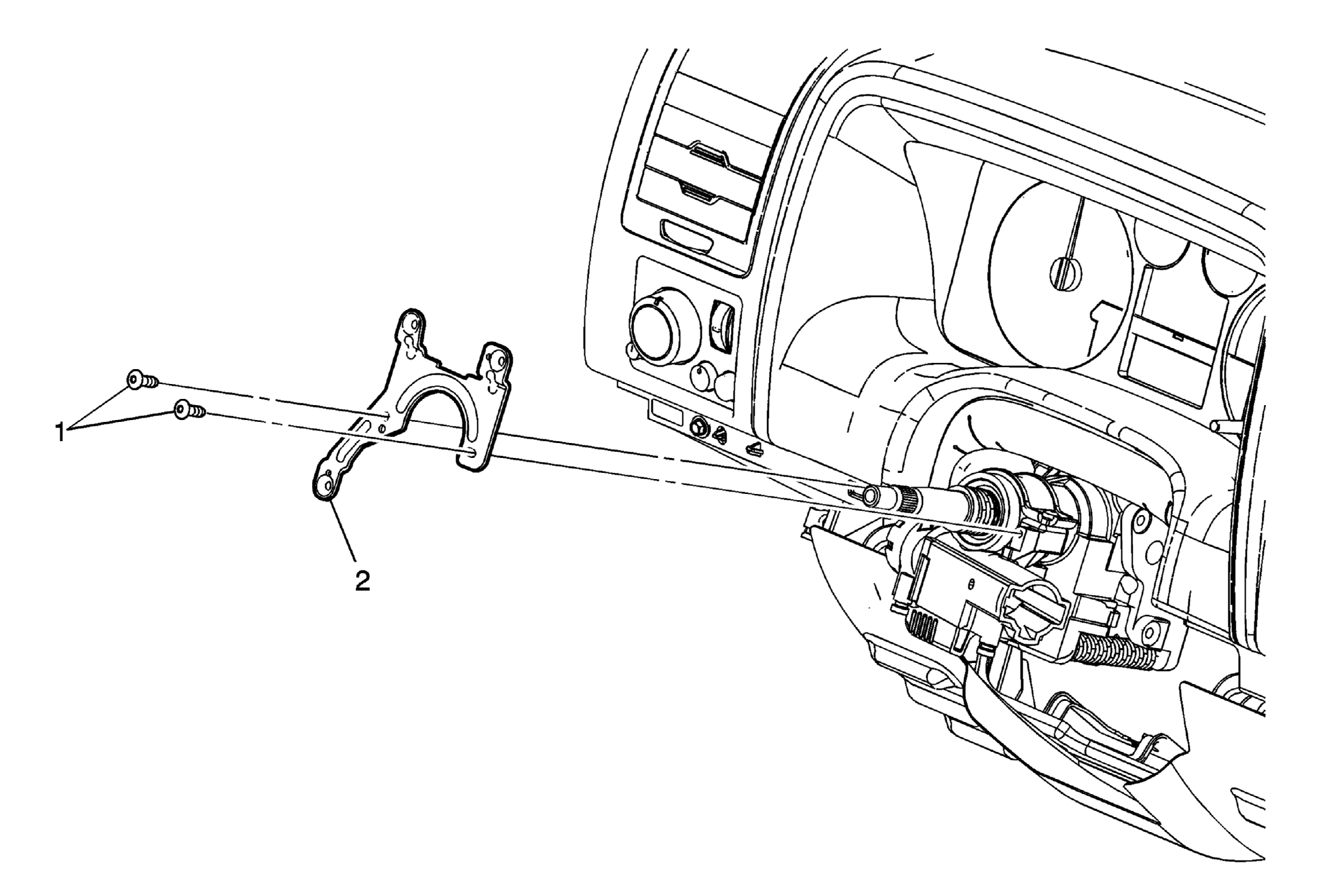

Fig 1: Turn Signal Switch Bracket
GM2083265Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the turn signal multifunction switch. Refer to Turn Signal Multifunction Switch Replacement .
1 Turn Signal Bracket Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  2.5 N.m (22 lb in)
2 Turn Signal Bracket
