Rear Reflector Replacement

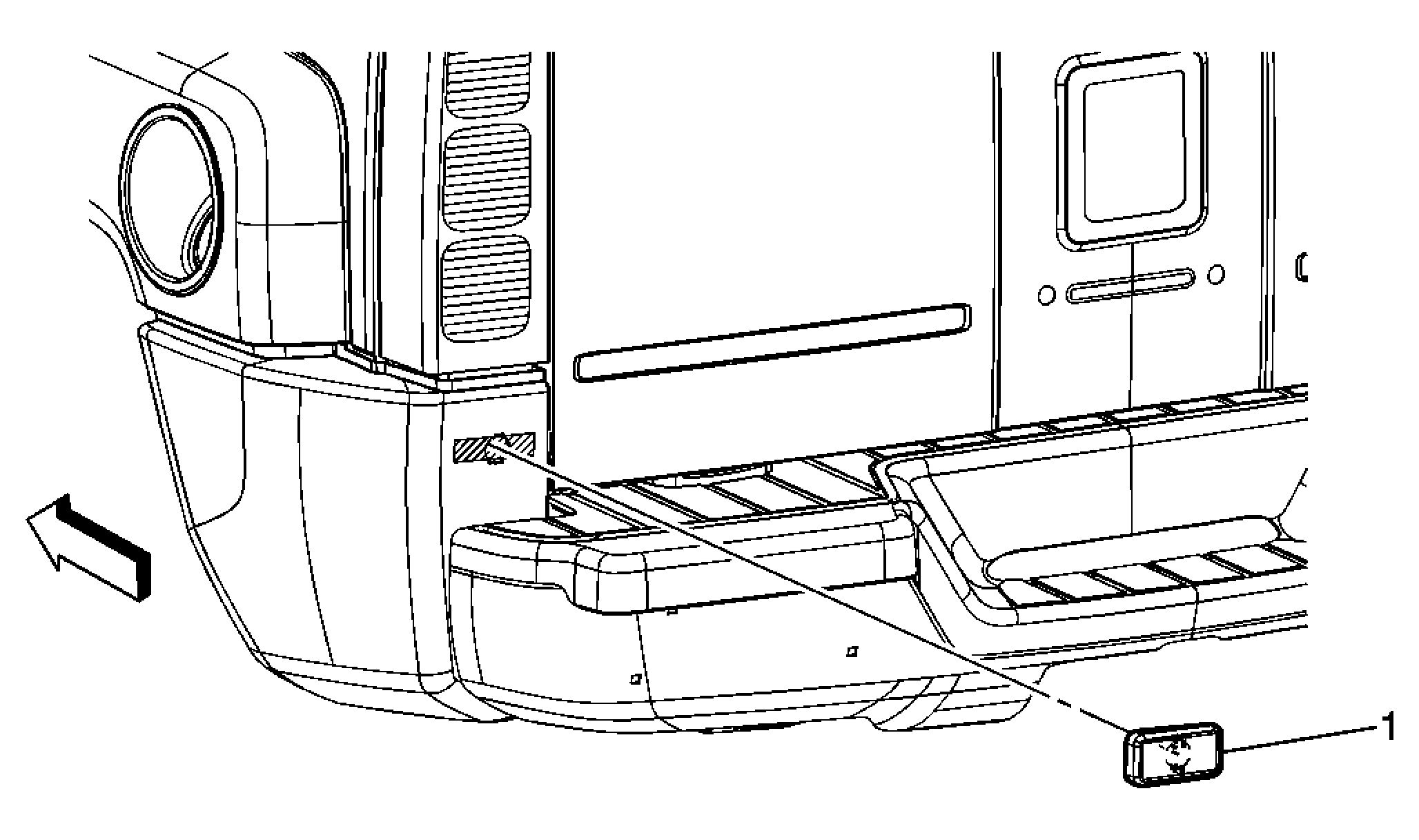

Fig 1: Rear Reflector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Bumper Impact Bar Extension Reflector Assembly CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength. Use a J 25070 Heat Gun or equivalent to remove the old reflector. Clean all the adhesive residue from the bumper extension and wipe the surface dry with a clean lint-free towel prior to installing new reflector. When removing protective liners from adhesive backed reflectors, be careful not to touch the tape with hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion. Remove the protective liner from the back side of the adhesive tape. Align the reflector to the bumper extension and press to ensure full adhesion is made to the rear bumper impact bar extension.

Callout

Component Name

Rear Bumper Impact Bar Extension Reflector Assembly

CAUTION: Refer to Exterior Trim Emblem Removal Caution .

Procedure

The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
Use a J 25070 Heat Gun or equivalent to remove the old reflector. Clean all the adhesive residue from the bumper extension and wipe the surface dry with a clean lint-free towel prior to installing new reflector.
When removing protective liners from adhesive backed reflectors, be careful not to touch the tape with hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion.
Remove the protective liner from the back side of the adhesive tape.
Align the reflector to the bumper extension and press to ensure full adhesion is made to the rear bumper impact bar extension.
