Installation Procedure

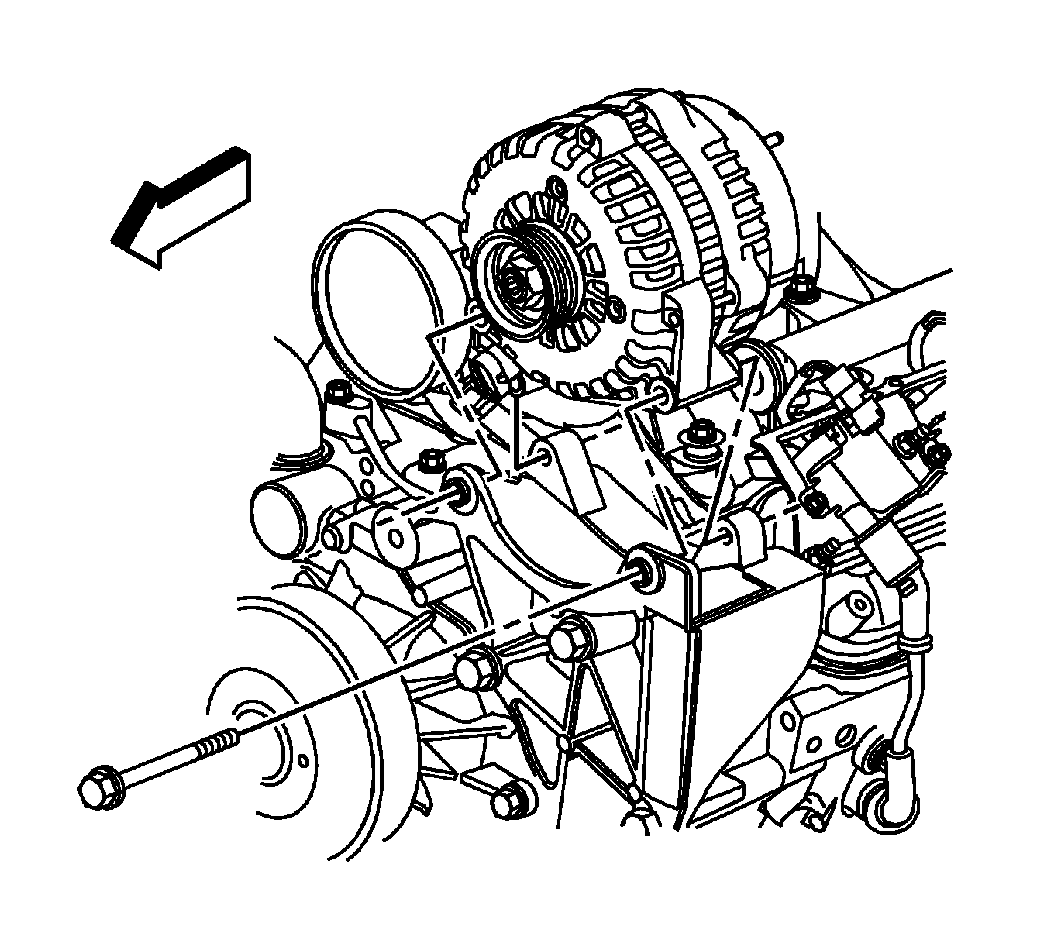

    Fig 1: Generator & Bolts
    GM899619Courtesy of GENERAL MOTORS CORP.
  1. Install the generator.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the generator bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

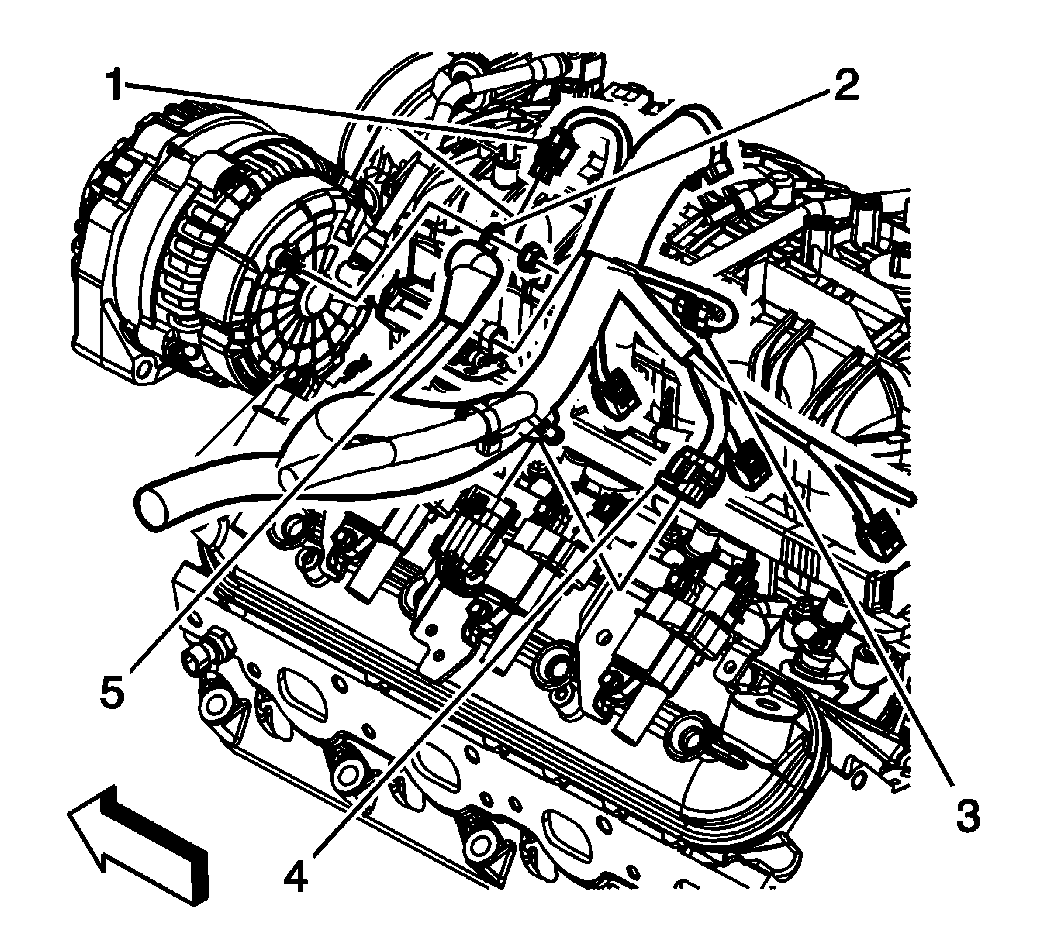

    3. Fig 2: Engine Wiring Harness Electrical Connector & Generator
    GM1897776Courtesy of GENERAL MOTORS CORP.
  3. Install the engine wiring harness/positive battery cable (2) to the generator.
  4. Install the engine wiring harness/positive battery cable nut to the generator.

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

  5. Position the engine wiring harness/positive battery cable boot (5).
  6. Connect the engine wiring harness electrical connector (1) to the generator.
  7. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
  8. Install the intake manifold cover. Refer to Upper Intake Manifold Sight Shield Replacement .
  9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
