Fuel System JSV/ESV/DSV - Torque Specifications (1-31-003)

Publication date: 1988-01-01
Reference number: 1-31-003

FUEL SYSTEM JSV/ESV/DSV - TORQUE SPECIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 1-31-003, Date of Issue: January, 1988

TORQUE SPECIFICATIONS JET SOLENOID VALVE (JSV) ENRICHMENT SOLENOID VALVE (ESV) DECELERATION SOLENOID VALVE (DSV)

Model: ALL HYUNDAI EXCEL

Group: FUEL SYSTEM

Bulletin No: 1-31-003

Date: January, 1988

SERVICE INFORMATION

When reassembling 3 Solenoid Carburetors or installing new Carburetor Control Solenoids, please use the following torque specification. Figs 1, 2 and 3 contain views of each type of valve.

Carburetor Control Solenoid torque specification 22-30 In. Lbs.

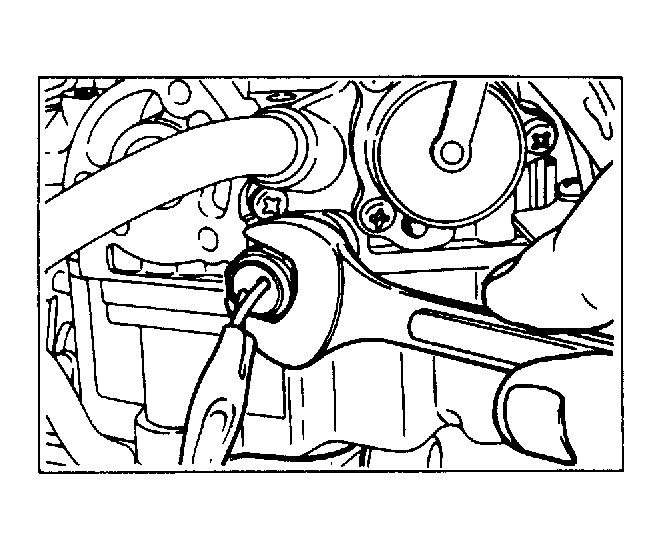

Fig 1: Enrichment Solenoid Valve

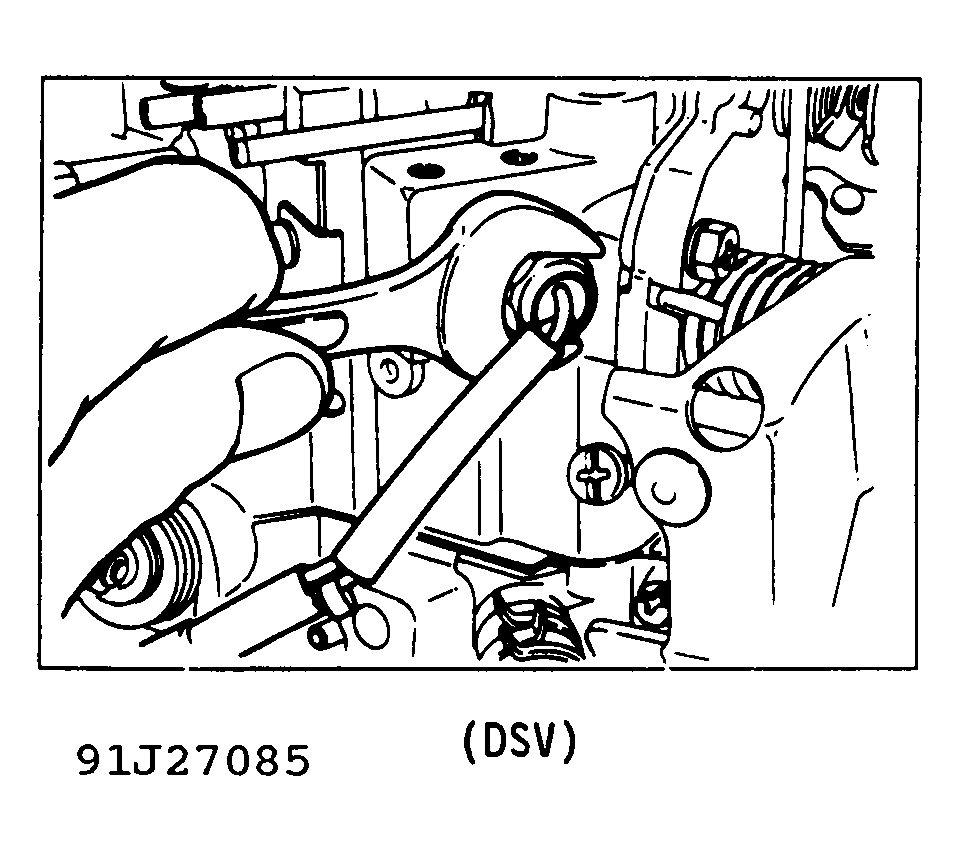

Fig 2: Jet Solenoid Valve

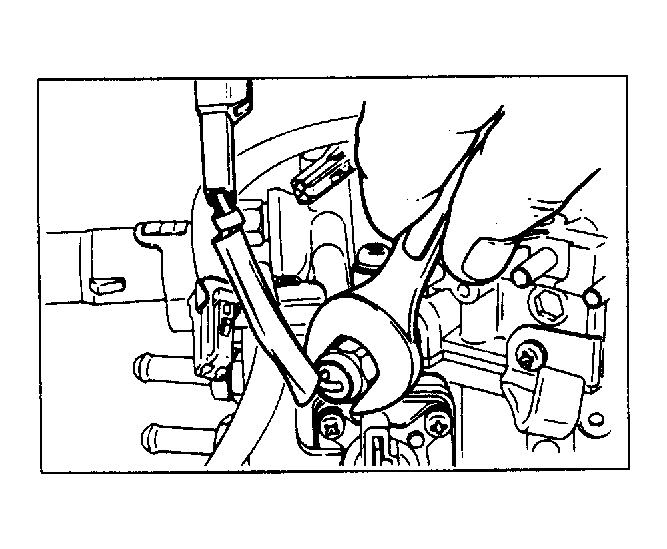

Fig 3: Deceleration Solenoid Valve
