A/C SYSTEM MODIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 1-97-006, Date of Issue: September, 1988

Model: 1989 HYUNDAI EXCEL

Group: Climate Control

Bulletin No.: 1-97-006

Date: September, 1988

The following changes have been made to the A/C system condenser assembly and associated vehicle support structure:

The physical size of the A/C condenser has been changed by increasing the thickness from 26mm to 44mm and by reducing the overall length (Fig 1 ). A condenser fan motor shroud has been added to improve condenser efficiency.
The power radiator support member assembly the radiator reinforcement assembly (Fig 2 ), and the air guide,have been altered to accommodate the new size condenser.
NOTE: Because of these changes, the new condenser will not fit into vehicles built prior to April 18, 1988.)

Fig 1: Change in A/C Condenser

Fig 2: Radiator Reinforcement Assembly

Fig 3: Modified Air Guide
The power steering suction hose and hose mounting clip have been revised to facilitate installation of the new condenser. See Fig 4

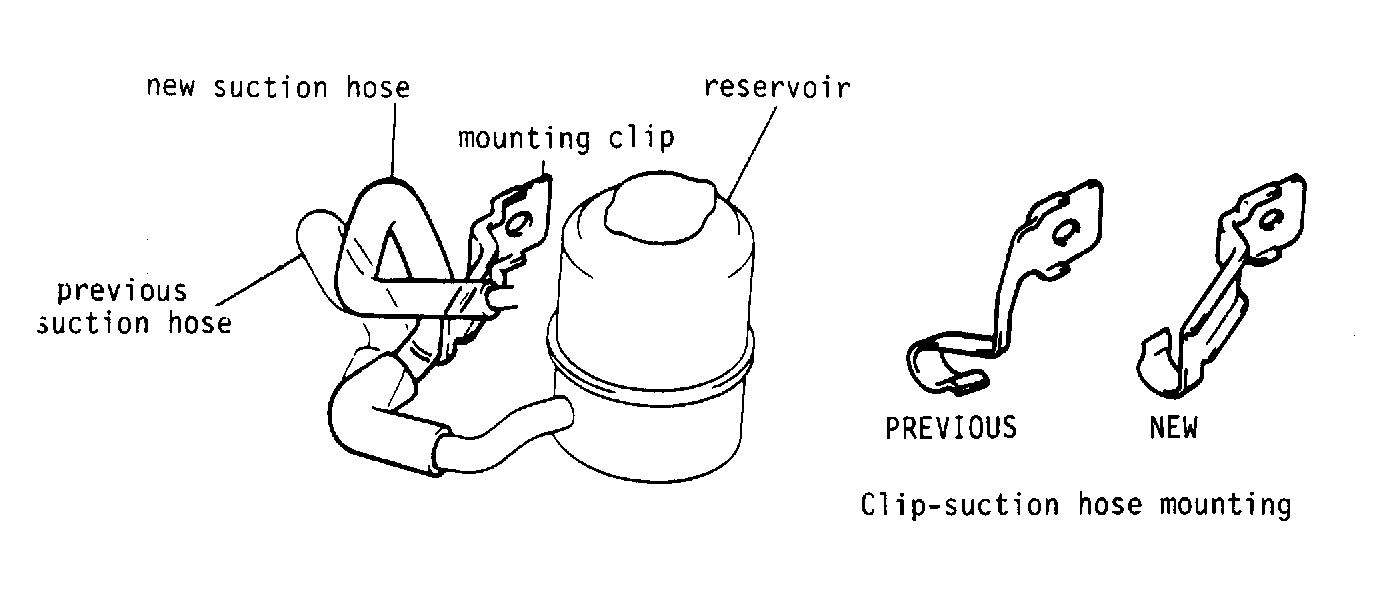

Fig 4: Modified Suction Hose & Hose Mounting

PRODUCTION EFFECTIVE

DATE	COMPONENT	MANUFACTURER	MODEL
4-18-88	Condenser and Fan Assembly	DKK	5 Door
4-18-88 5-1-88	Condenser and Fan Assembly	DKK	4 Door
4-27/28-88 (2 days only)	Condenser and Fan Assembly	Mando	4 Door
5-1-88	Condenser and Fan Assembly	Mando	4 Door
7-7-88	Condenser and Fan Assembly	Mando	3 Door
4-6-88	Reinforcement Ass'y Member Ass'y Panel Ass'y	HMC	3/4/5 Door
4-7-88	Air Guide	3/4/5 Door

PART INFORMATION

Date	Description	Part Number
4-10-88	Power Steering Suction Hose and Clip	LD31JlJU213014 LF31J8JU423502 LA32JlJU281189

PART INFORMATION

PART NAME	PREVIOUS P/N	NEW P/N	MANUFACTURER
Condenser Ass'y	97606-21503	97706-21600	DKK
97605-21251		97606-21300	Mando
Blower Ass'y (Condenser)	25380-21811	NOT SUPPLIED	DKK
25380-21250		NOT SUPPLIED	Mando
Motor (Condenser)	25386-21500	25391-21000	DKK
25386-21500		25391-21250	Mando
Shroud (Condenser)	25350-21600	97735-21000	DKK
25350-21600		97735-21250	Mando
Fan (Condenser)	25231-21500	97737-21000	DKK
25231-21500		25231-21250	Mando

INTERCHANGEABILITY

Old <--------X--------> New

DKK and Mando new parts are interchangeable.

PART INFORMATION (CONTINUED)

INTERCHANGEABILITY

Old --------X--------> New

<----------------

PART INFORMATION (CONTINUED)

PART NAME	PREVIOUS P/N	NEW P/N
New Suction Hose (Power Steering)	57531-21010	57531-21011
Clip	57215-21000	57215-21001

INTERCHANGEABILITY

Old <--------X--------> New
