Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block Under left side of dash.
Fusible Links At positive terminal of battery.
Relay Blocks

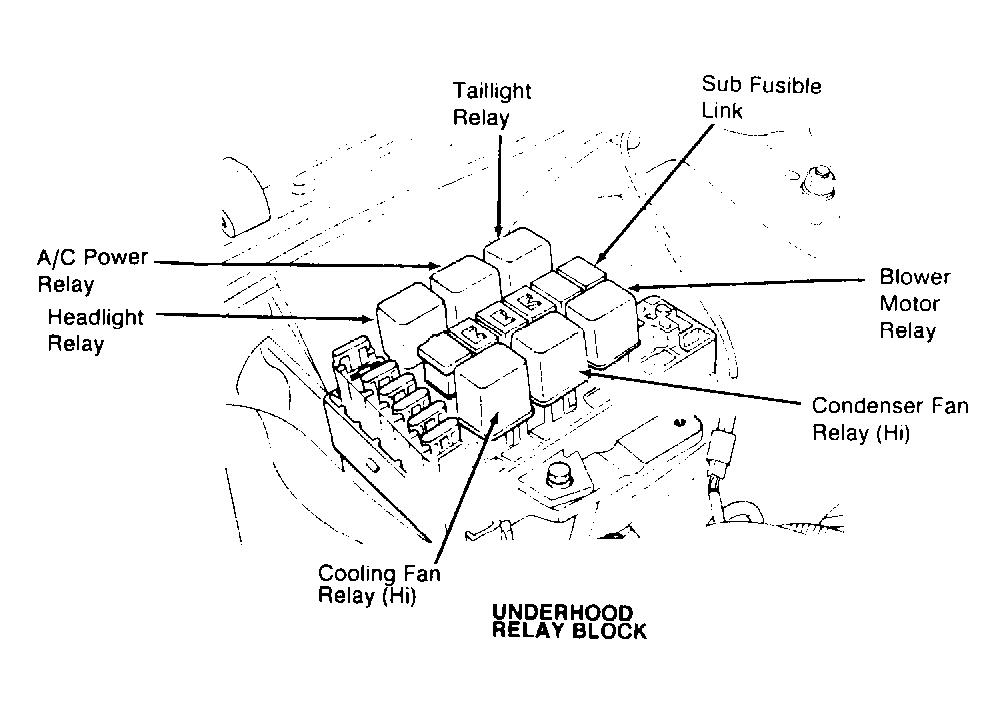

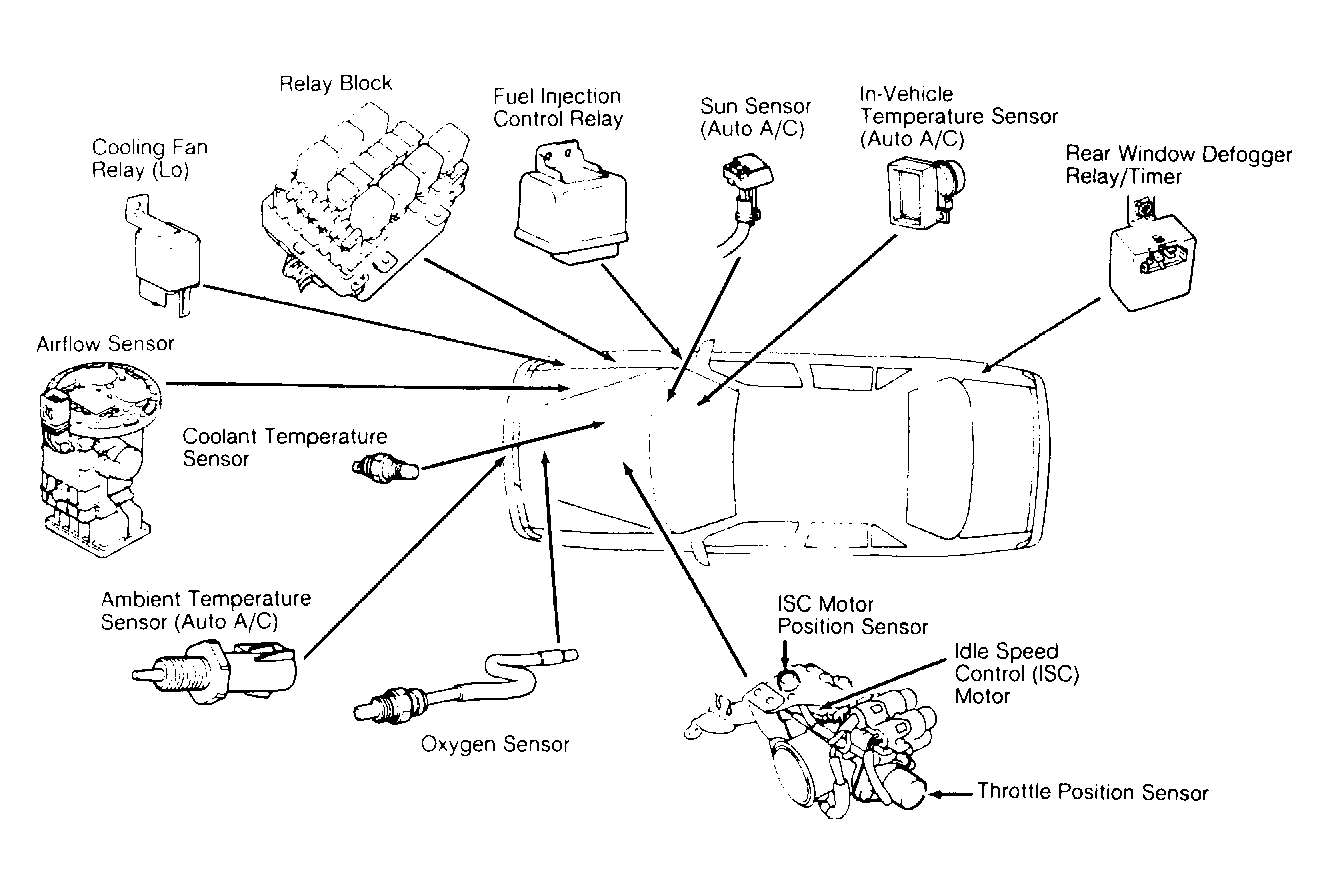

Engine Compartment Above right inner fender. See Figure & Figure .
Passenger Compartment Under left side of dash.
Sub-Fusible Link In engine compartment relay box, between relay banks. See Figure .
