Audio System Error Codes (01-90-010)

Publication date: 2001-09-01
Reference number: 01-90-010

AUDIO SYSTEM ERROR CODES

TECHNICAL SERVICE BULLETIN

Reference Number(s): 01-90-010, Date of Issue: September, 2001

HYUNDAI:	1990-2002 All Models
GROUP:	Electrical

Audio System Error Codes

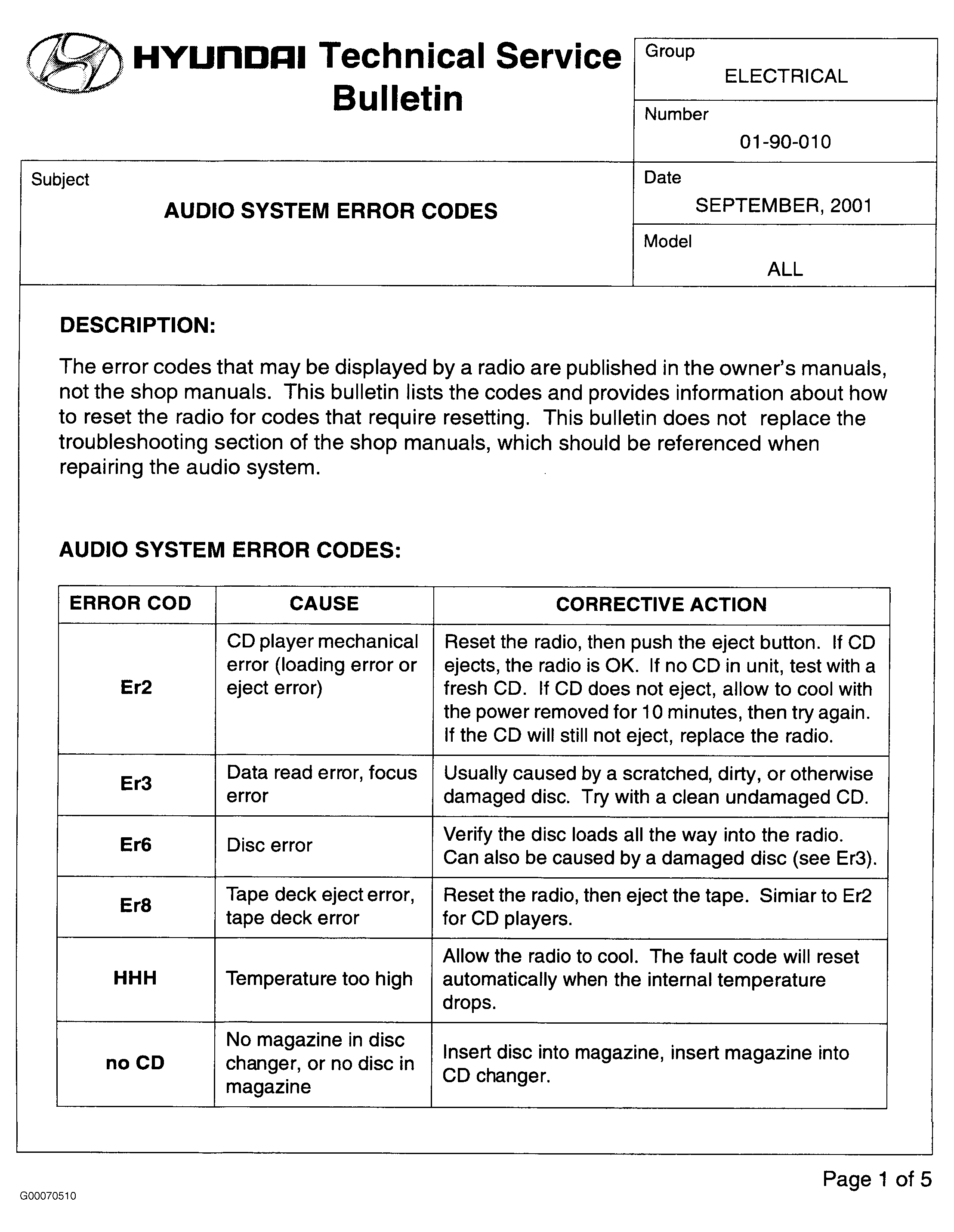

Fig 1: Page 1 of Bulletin

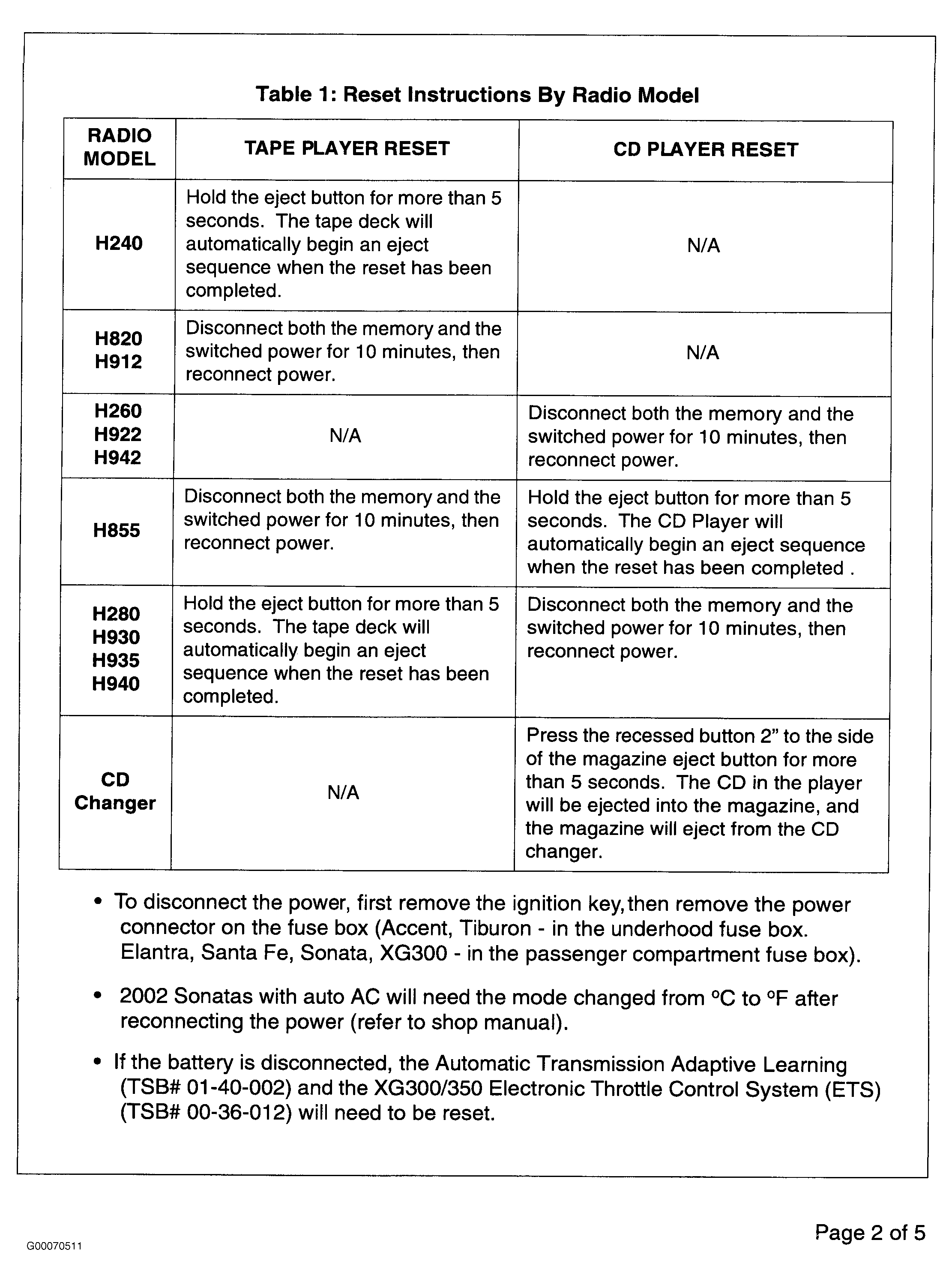

Fig 2: Page 2 of Bulletin

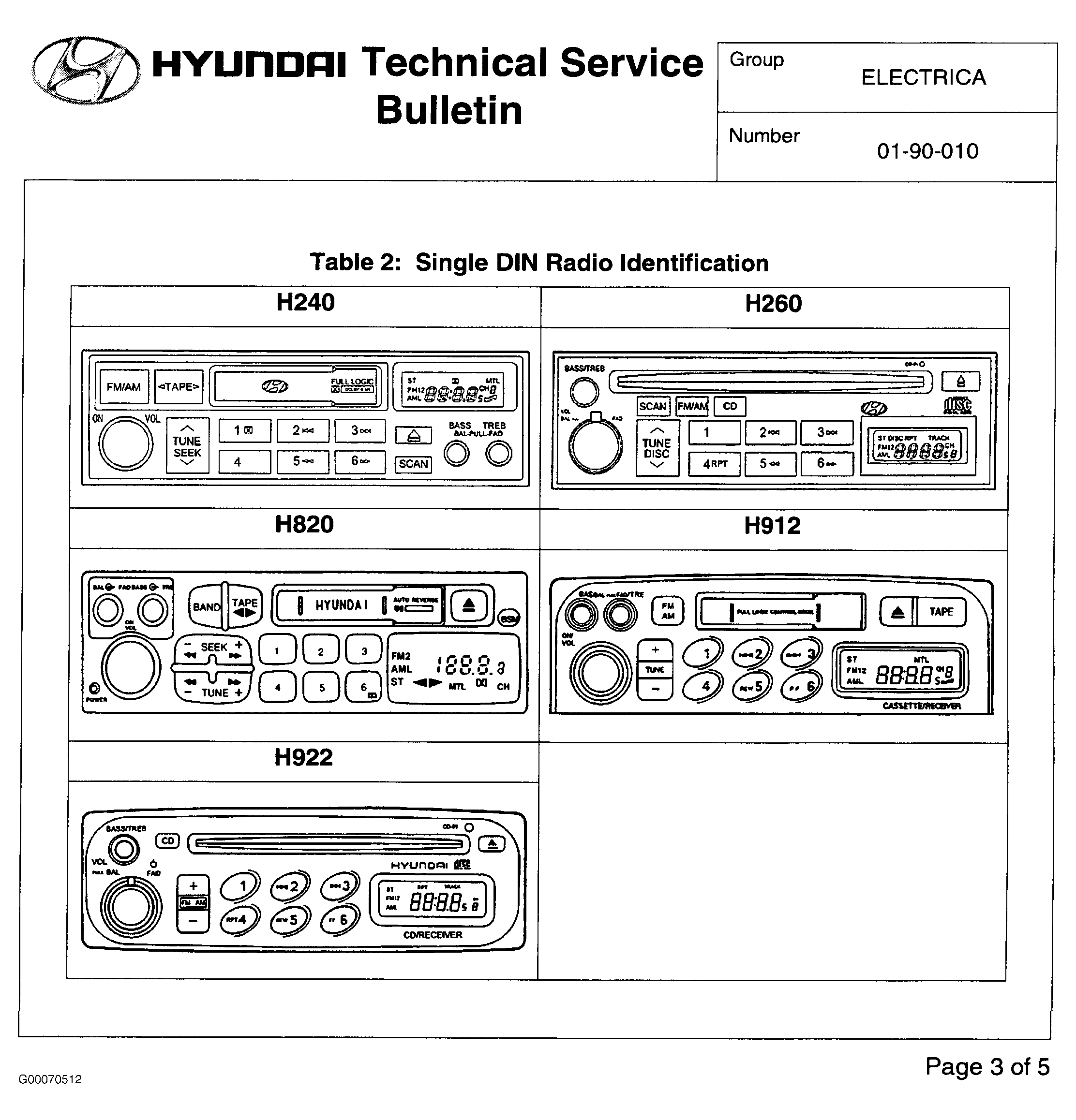

Fig 3: Page 3 of Bulletin

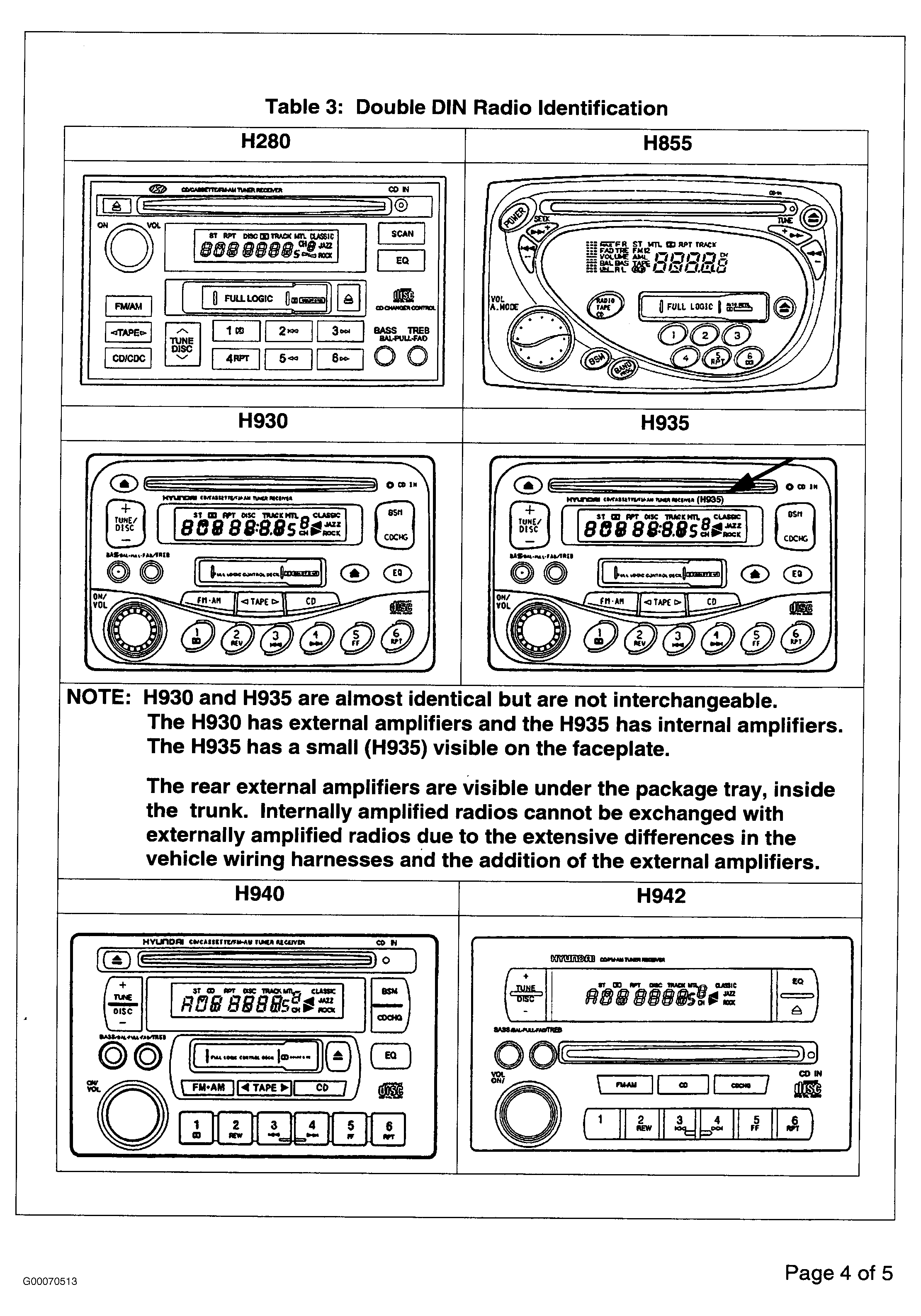

Fig 4: Page 4 of Bulletin

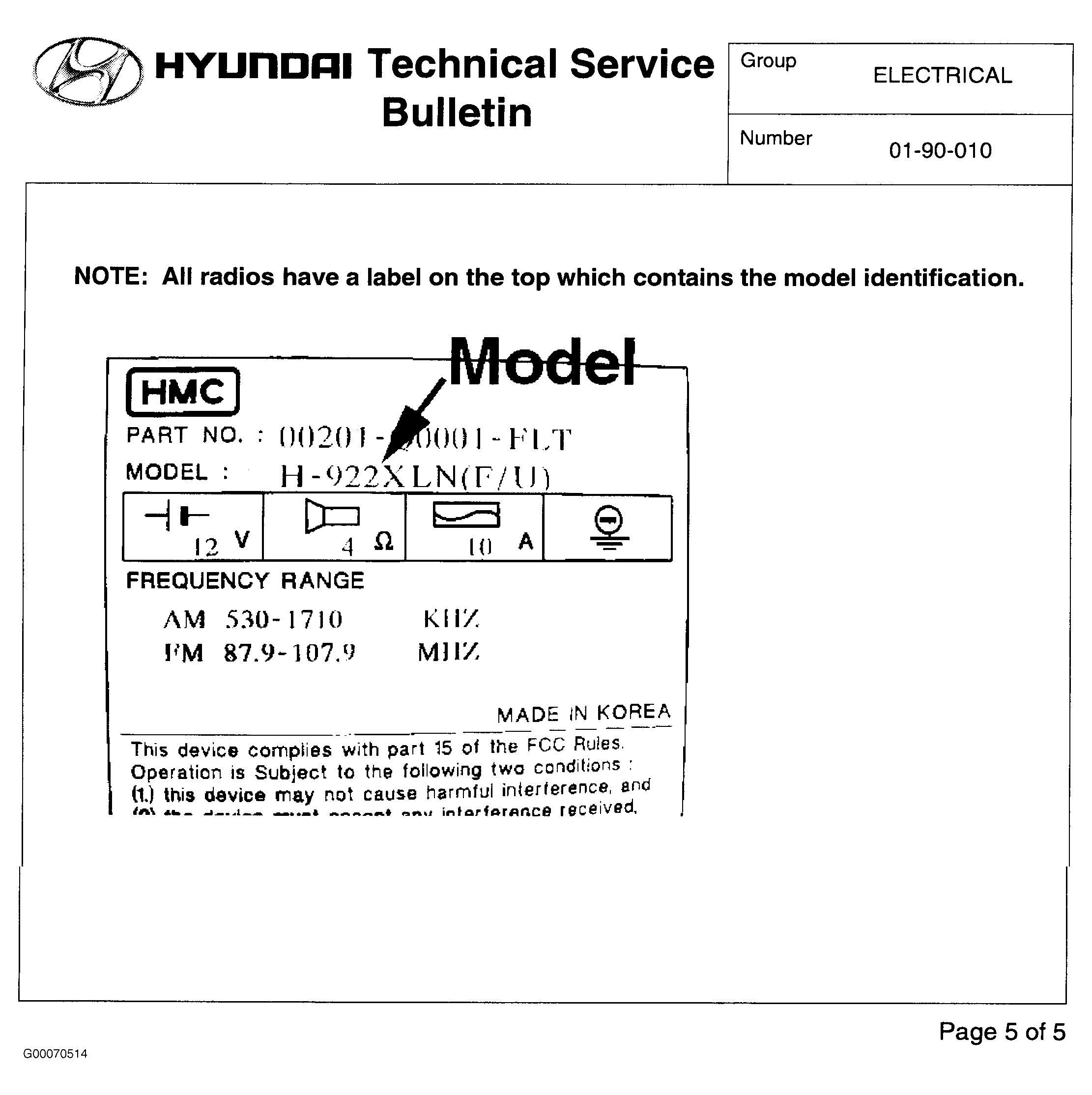

Fig 5: Page 5 of Bulletin
