Service Point Locations

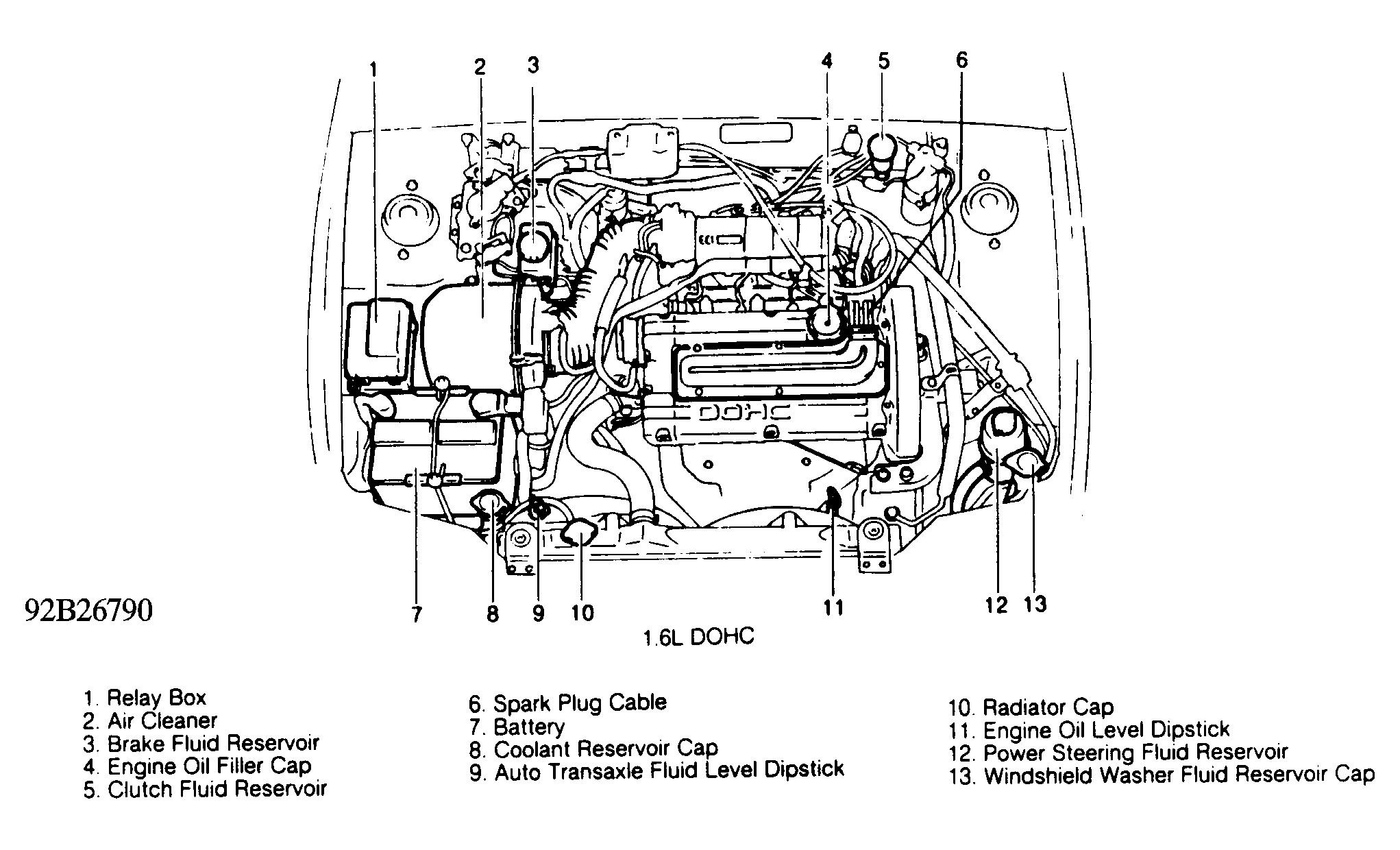

Fig 1: Service Point Locations
G92B26790Courtesy of HYUNDAI MOTOR CO.

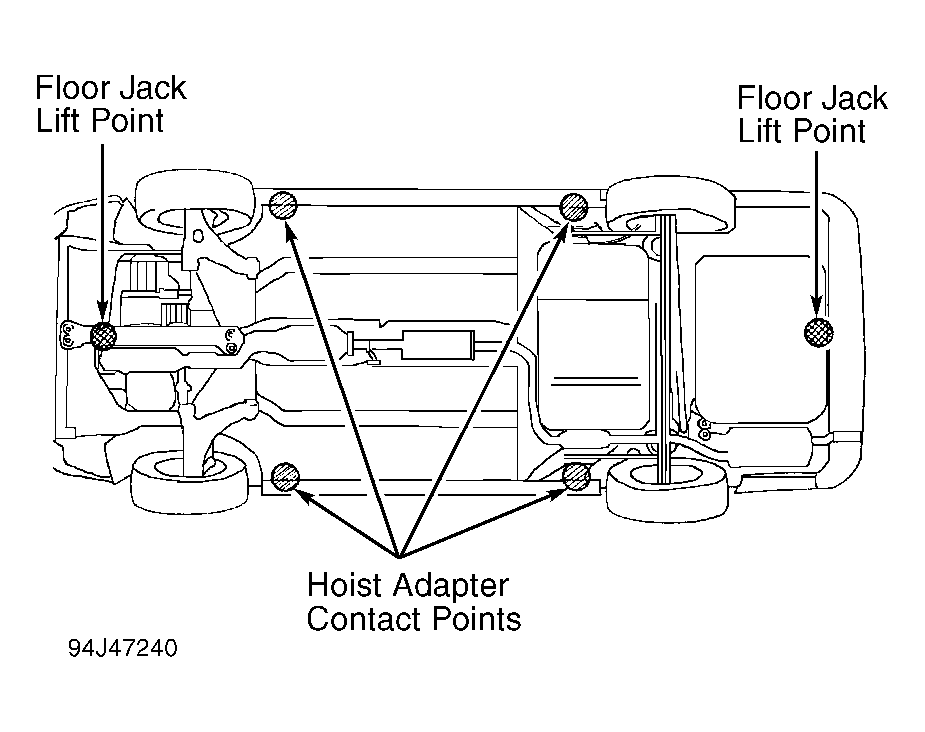

Fig 2: Lift Point Locations
G94J47240Courtesy of HYUNDAI MOTOR CO.
