Component Locations
NOTE:
For more information on fuse information, see FUSES & CIRCUIT BREAKERS
article in ELECTRICAL.

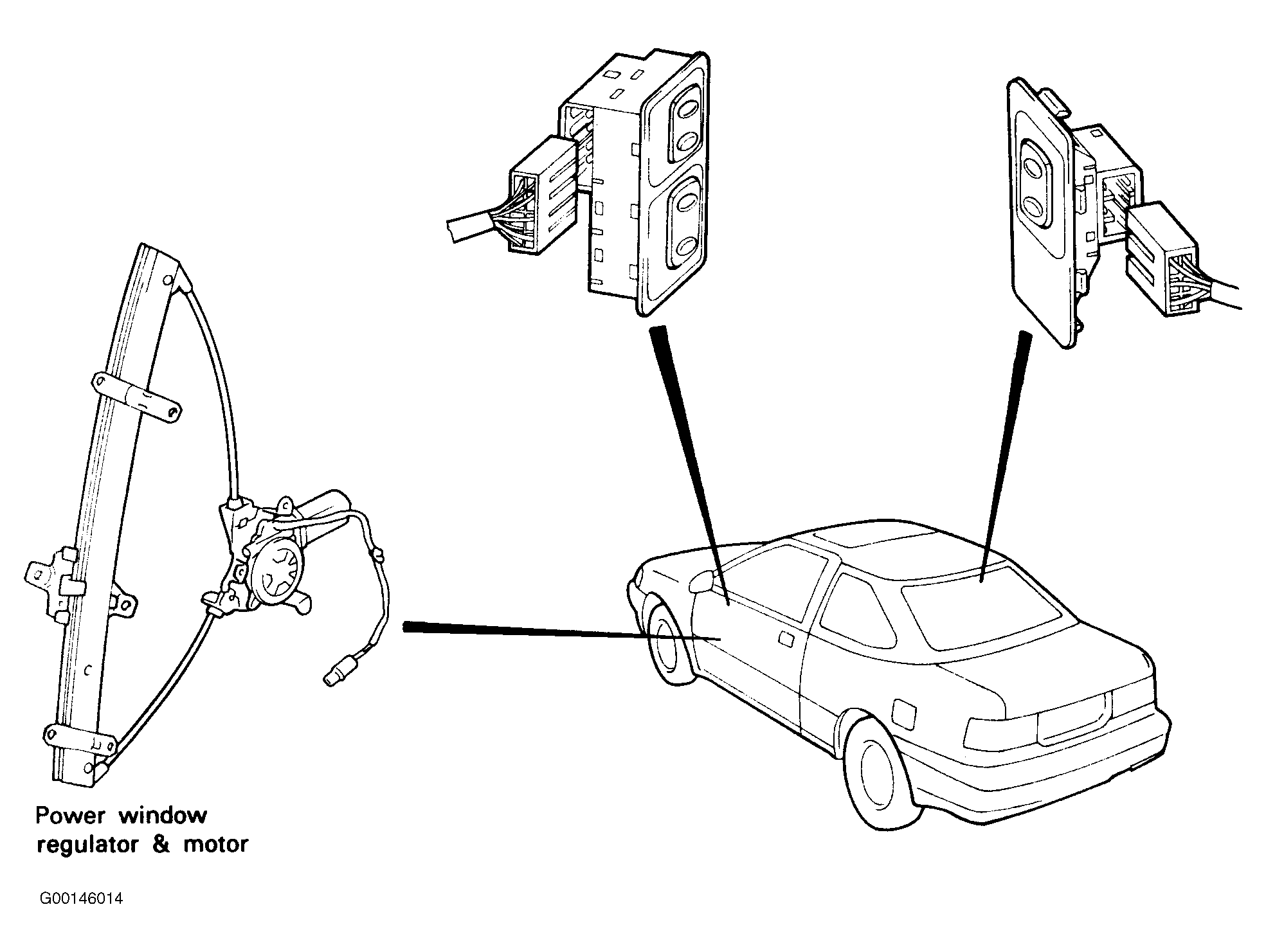

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Driver's Master Switch Assembly | On Driver's Door Panel |
| Fuse 11 | In Fuse Block, Left Side Of Dash |
| Fuse 12 | In Fuse Block, Left Side Of Dash |
| G200 | Left Side Of Dash, Above Fuse Block |
| Passenger Window Switch | On Passenger Door Panel |
| Window Motor | Inside Door |
