Power Window Switch: Sub-Switch

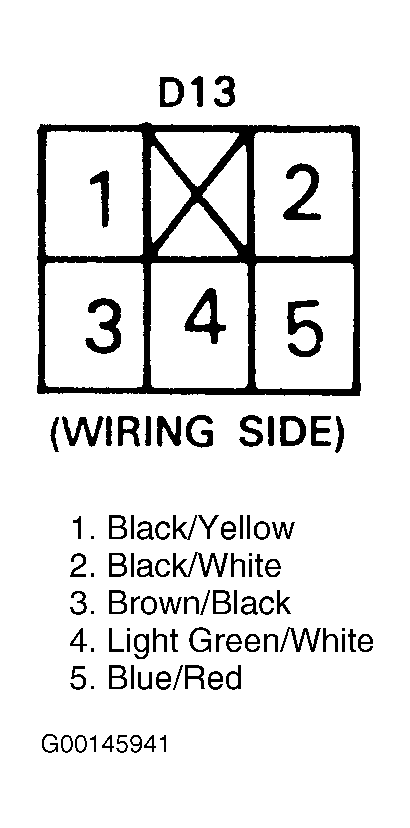

Remove power window sub-switch. Check continuity between specified terminals with switch in specified position. See SUB-SWITCH CONTINUITY table. See Fig 1 . If continuity is not as specified, replace sub-switch.
SUB-SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Up | 4 & 5; 2 & 1 |
| Off | 5, 2 & 1 |
| Down | 4 & 2; 5 & 1 |
