Coolant Temperature Sensor/Switch (For Computer): Locations

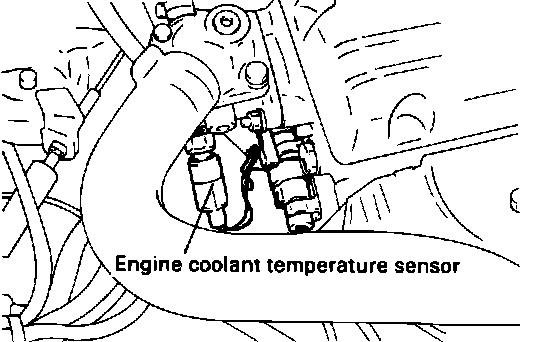

The engine coolant temperature sensor is in the intake manifold under the thermostat housing, on the left side of the engine.
