Steering Pump Pressure Test

NOTE: Procedure for pressure testing Excel is not available from manufacturer.
RELIEF PRESSURE SPECIFICATIONS

Application psi (kg/cm2 )
Excel 853 (60)

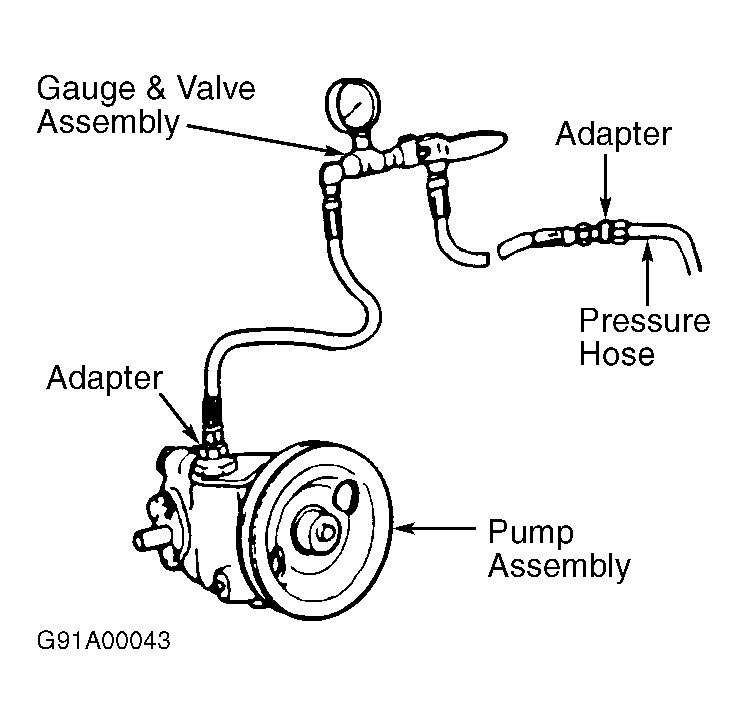

Fig 1: Connecting Pressure Gauge & Shutoff Valve
G91A00043Courtesy of HYUNDAI MOTOR CO.
