Repair and Diagnosis: Application and ID

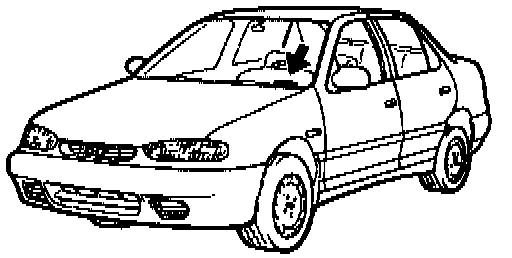

The vehicle identification number (VIN) is stamped on the upper left side of the crash pad.

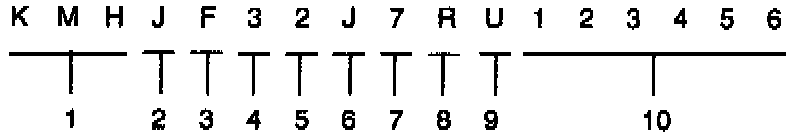

1. World manufacturer's identifier code:
KMH - Hyundai Motor Co., Korea

2. Drive line type:
J - ELANTRA

3. Body Type:
F - 4 Door sedan

4. Body style & version:
1 - Standard
2 - Deluxe
3 - Super deluxe

5. Restraint type:
1 - Active system
2 - Passive system

6. Engine type:
R - 1596cc
M - 1836 cc

7. Check digit:
Mathematically determined to validate frame numbers

8. Model year:
P - 1993, R - 1994, S - 1995

9. Plant code:
U - Ulsan plant

10. Serial number:
000001 through 999999
