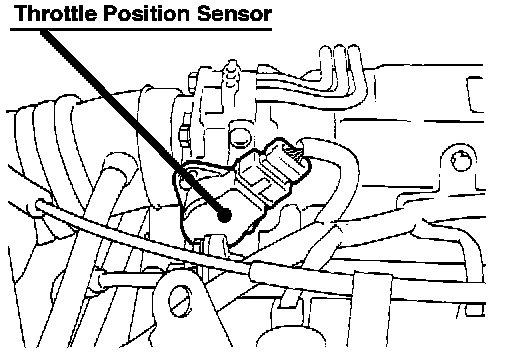

Throttle Position Sensor: Service and Repair

Removal:
1. Disconnect the harness connector.
2. Remove the connector from the bracket.
3. Remove the two phillips head screws.
4. Remove the sensor.

Installation:
1. Install the sensor.
2. Install the two phillips head screws.
3. Reconnect the harness connector.
4. Reinstall the connector in the bracket.
5. Adjust sensor.
