Transmission Position Sensor/Switch: Testing and Inspection

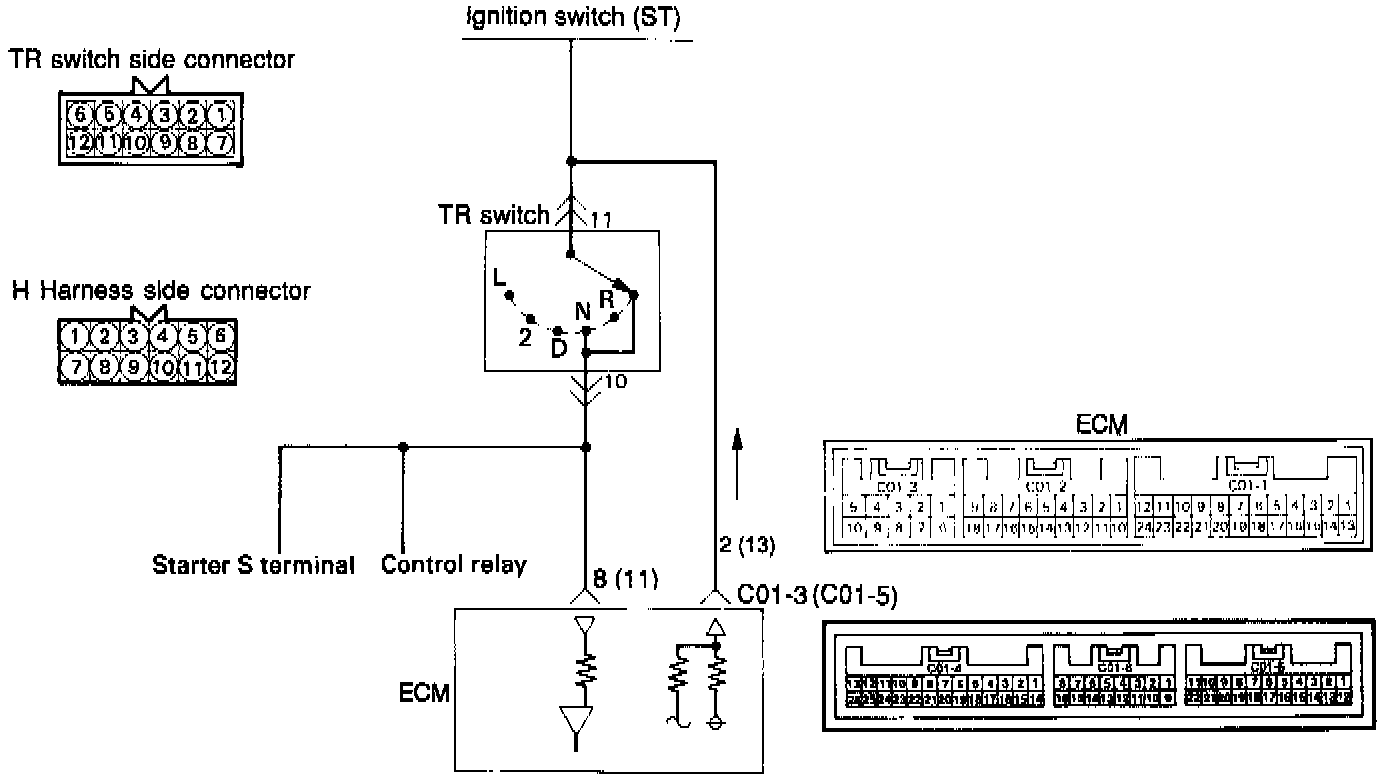

CIRCUIT DIAGRAM

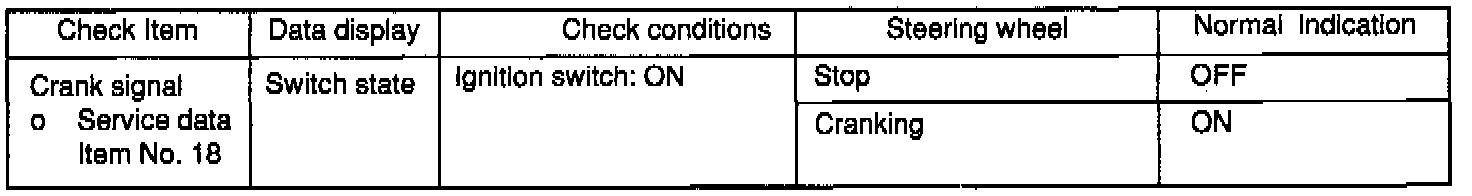

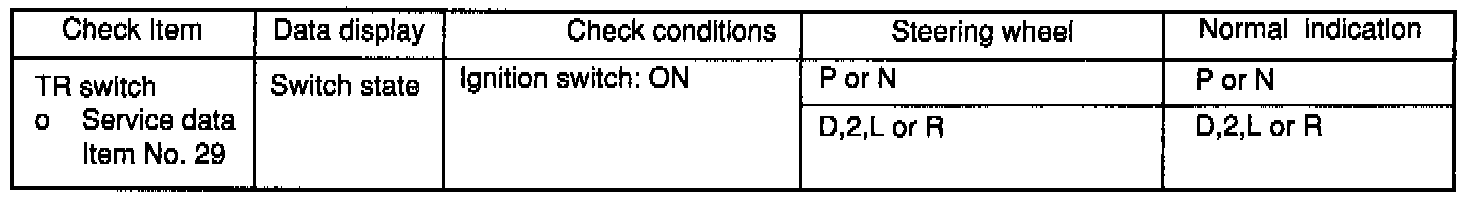

USING SCAN TOOL

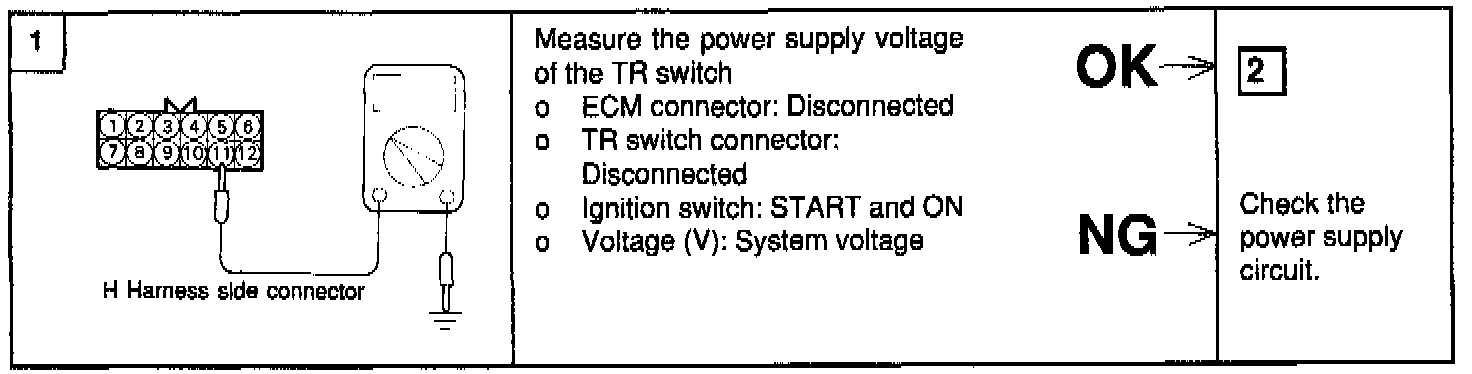

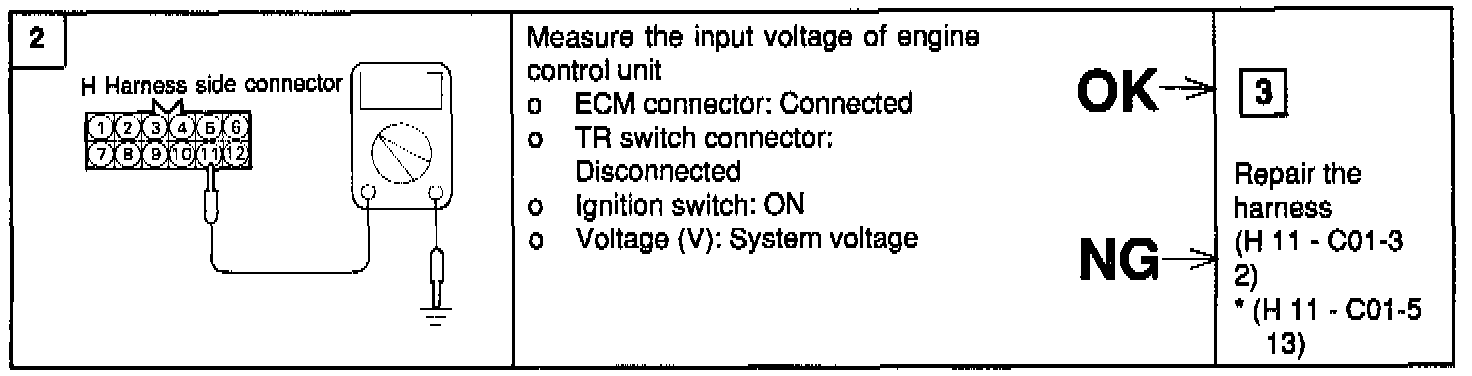

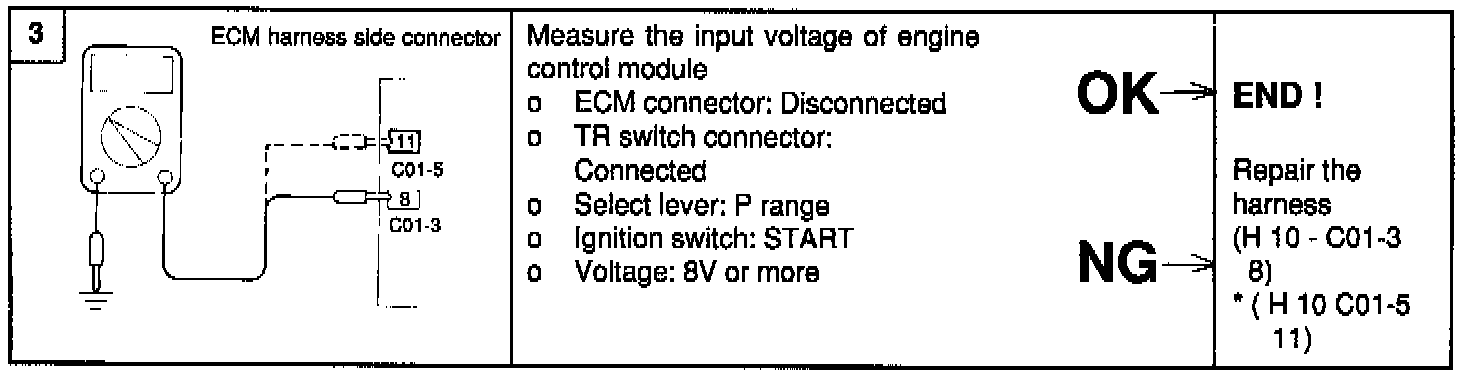

HARNESS INSPECTION

TROUBLESHOOTING HINTS
If the TR switch harness check is normal but the TR switch Output is abnormal, check for the control cable adjustment.
