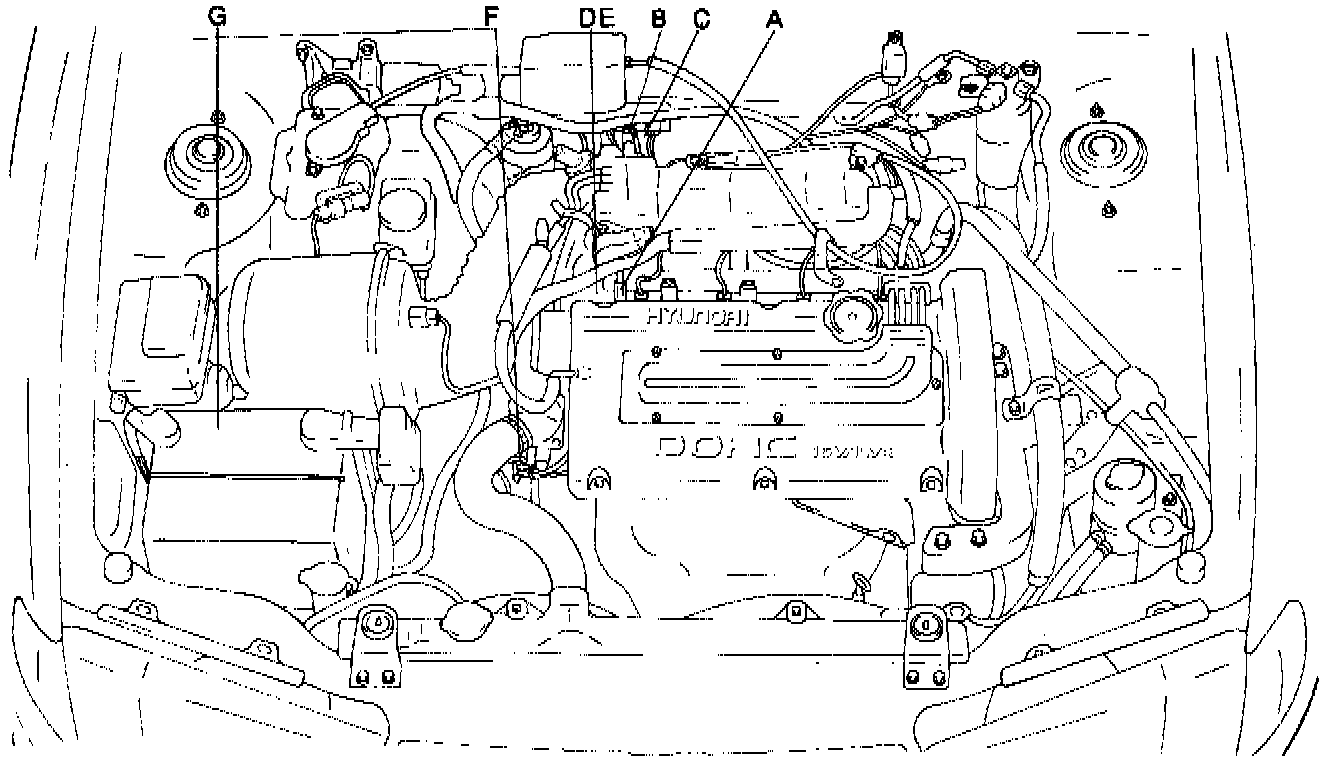

Emission Control Systems: Locations

A. PCV valve
B. EVAP Canister Purge Solenoid Valve
C. EGR solenoid valve (California only)
D. EGR valve
E. EGR temperature sensor (California only)
F. EGRTVV
G. EVAP Canister

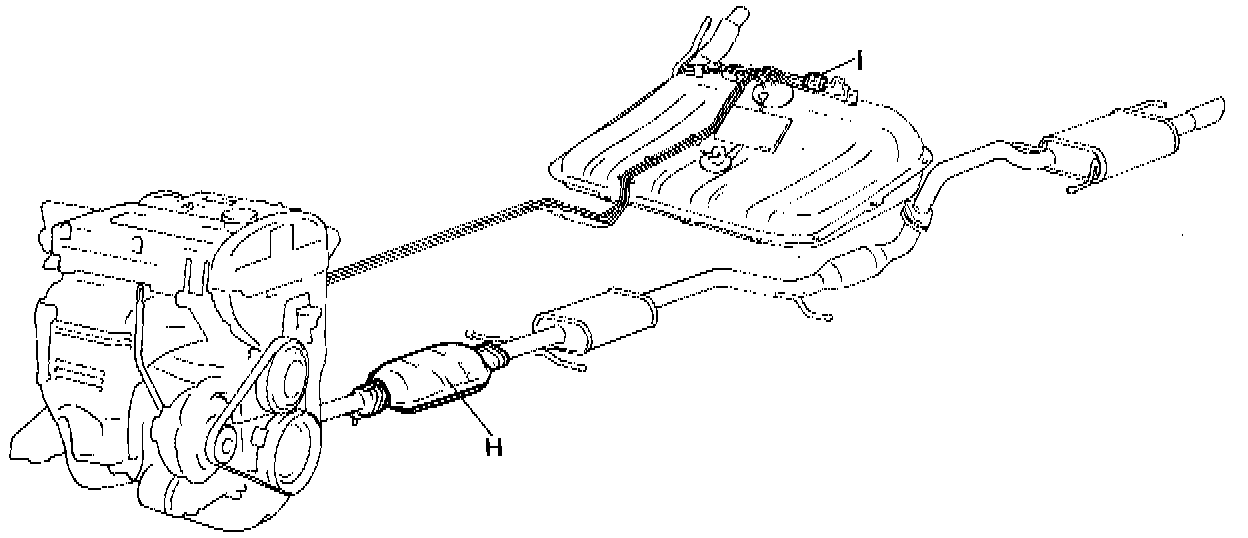

H. Catalytic converter
I. Two-way valve
