IGNITION SWITCH-ST AND TRANSAXLE RANGE SWITCH [A/T]
When the ignition switch is set ST position, the battery voltage is applied through the ignition switch and inhibitor switch to the ECM. If the selector lever is not P or N position, the battery voltage will not reach to the ECM.

Based on this signal, the ECM determines the automatic transaxle load and drives the idle speed control actuator to maintain optimum idle speed.

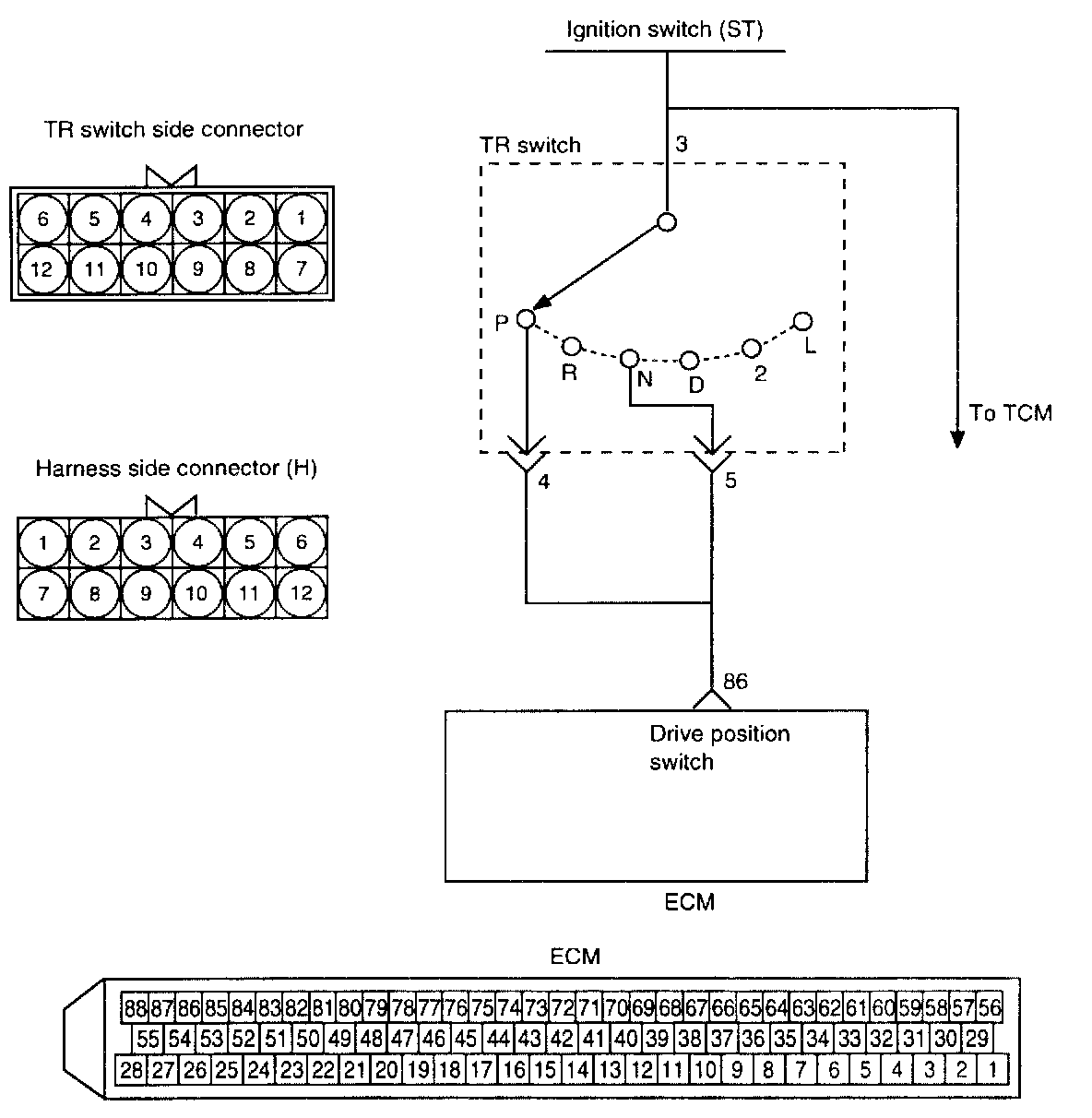

CIRCUIT DIAGRAM

TROUBLESHOOTING HINTS
It the park/neutral position switch harness check is normal but the park/neutral position switch output is abnormal, check for the control cable adjustment.

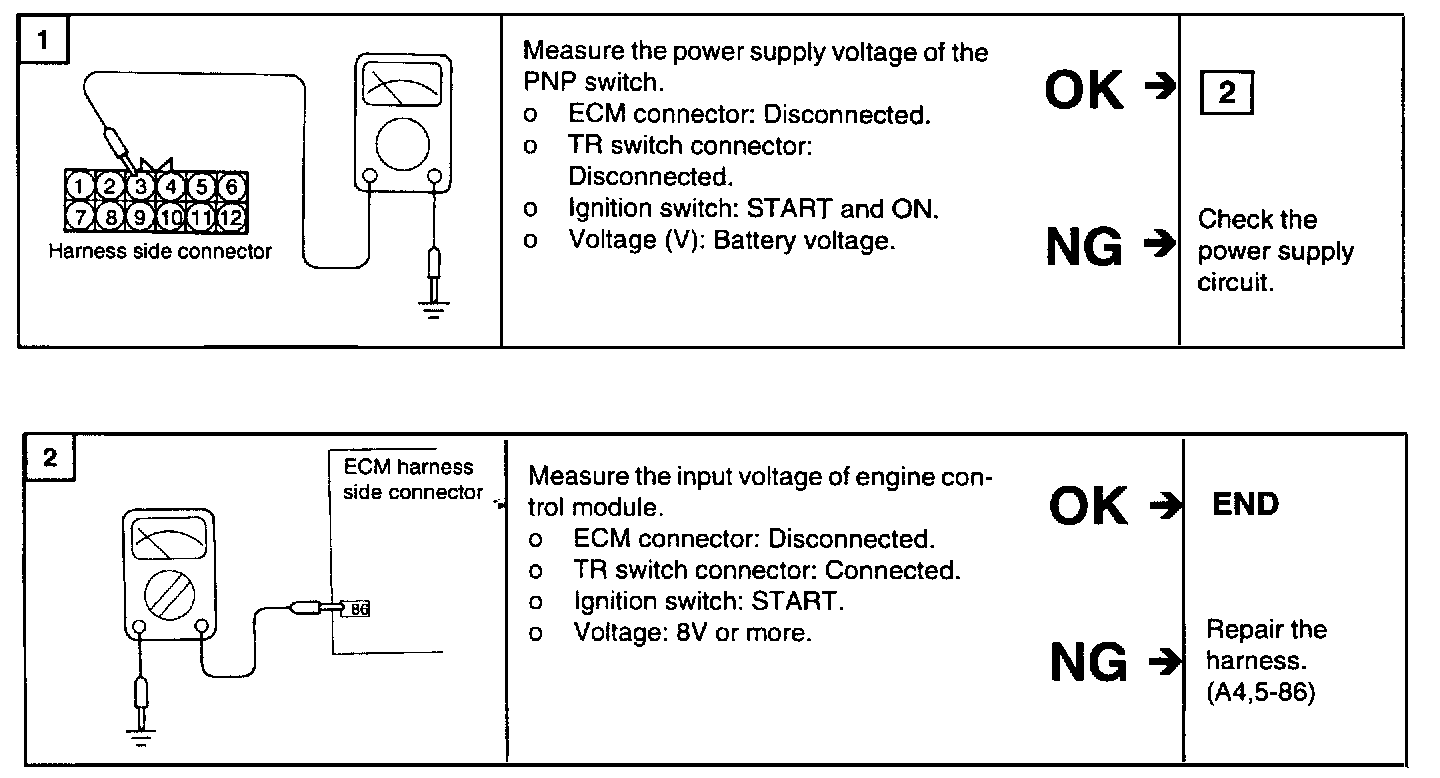

HARNESS INSPECTION
