Mode $06 Data For Wide Range O2 Sensor

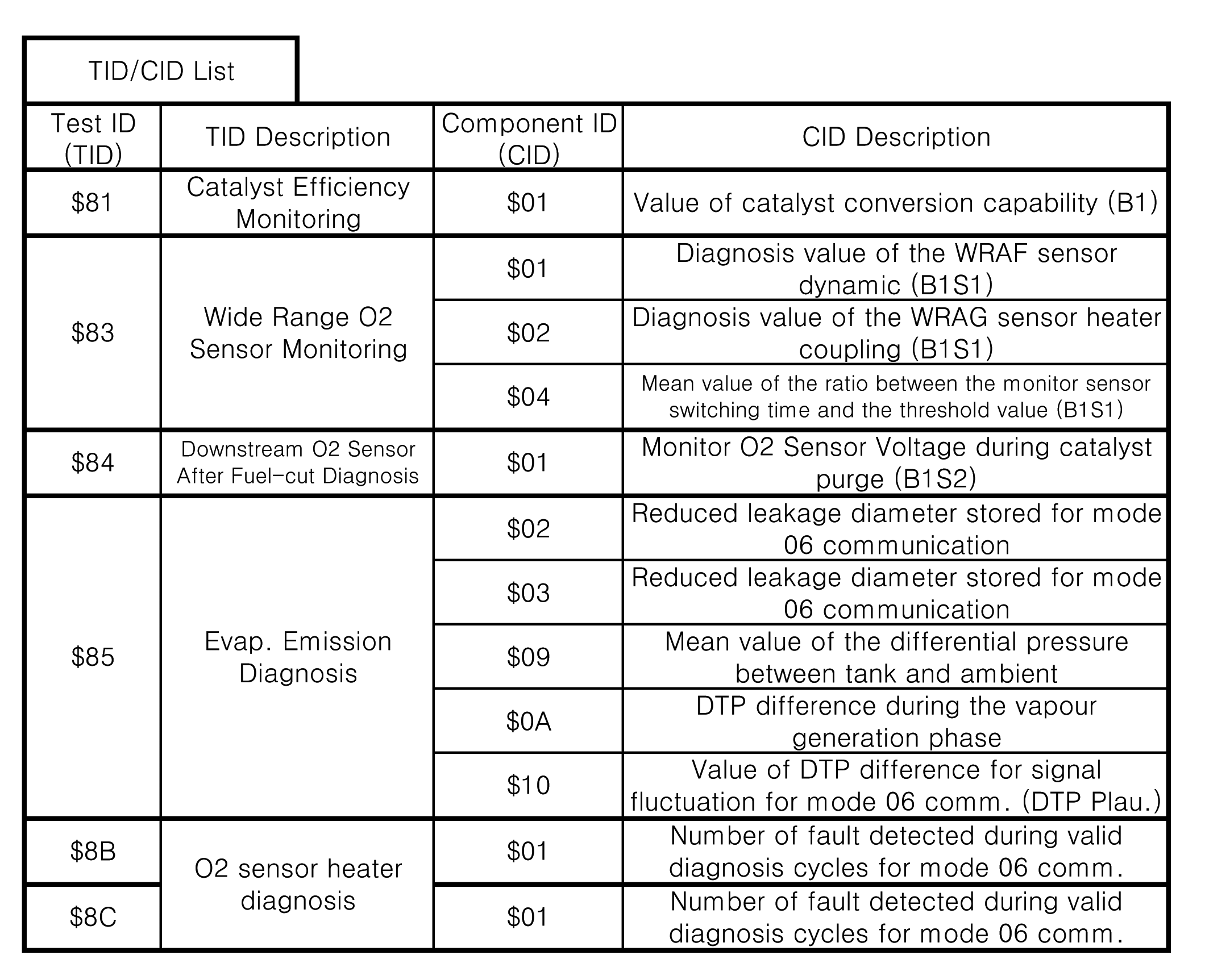

Fig 1: Mode $06 Test Identification

G00179449

Courtesy of HYUNDAI MOTOR CO.

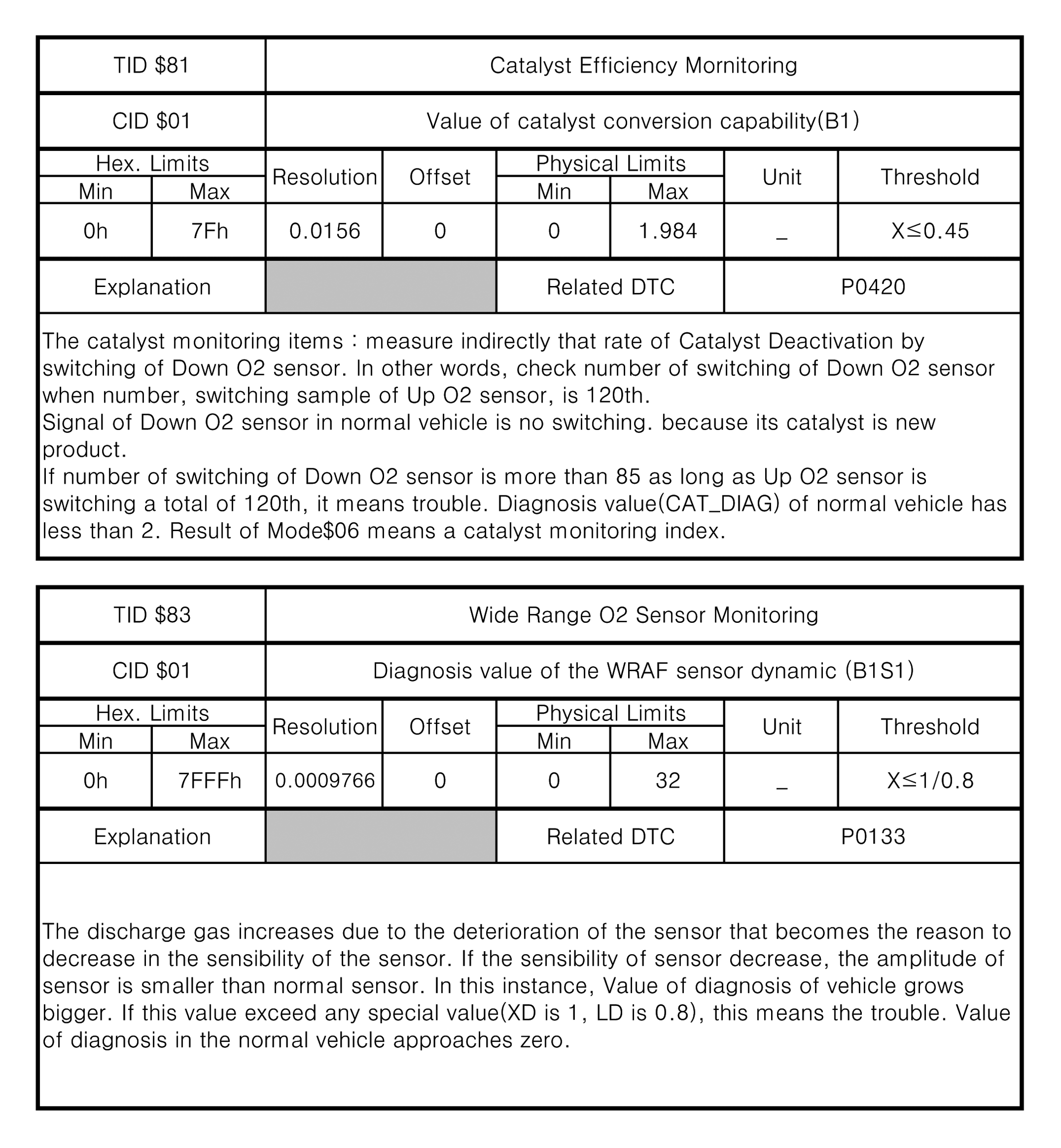

Fig 2: Mode $06 Test Information (1 Of 6)

G00179450

Courtesy of HYUNDAI MOTOR CO.

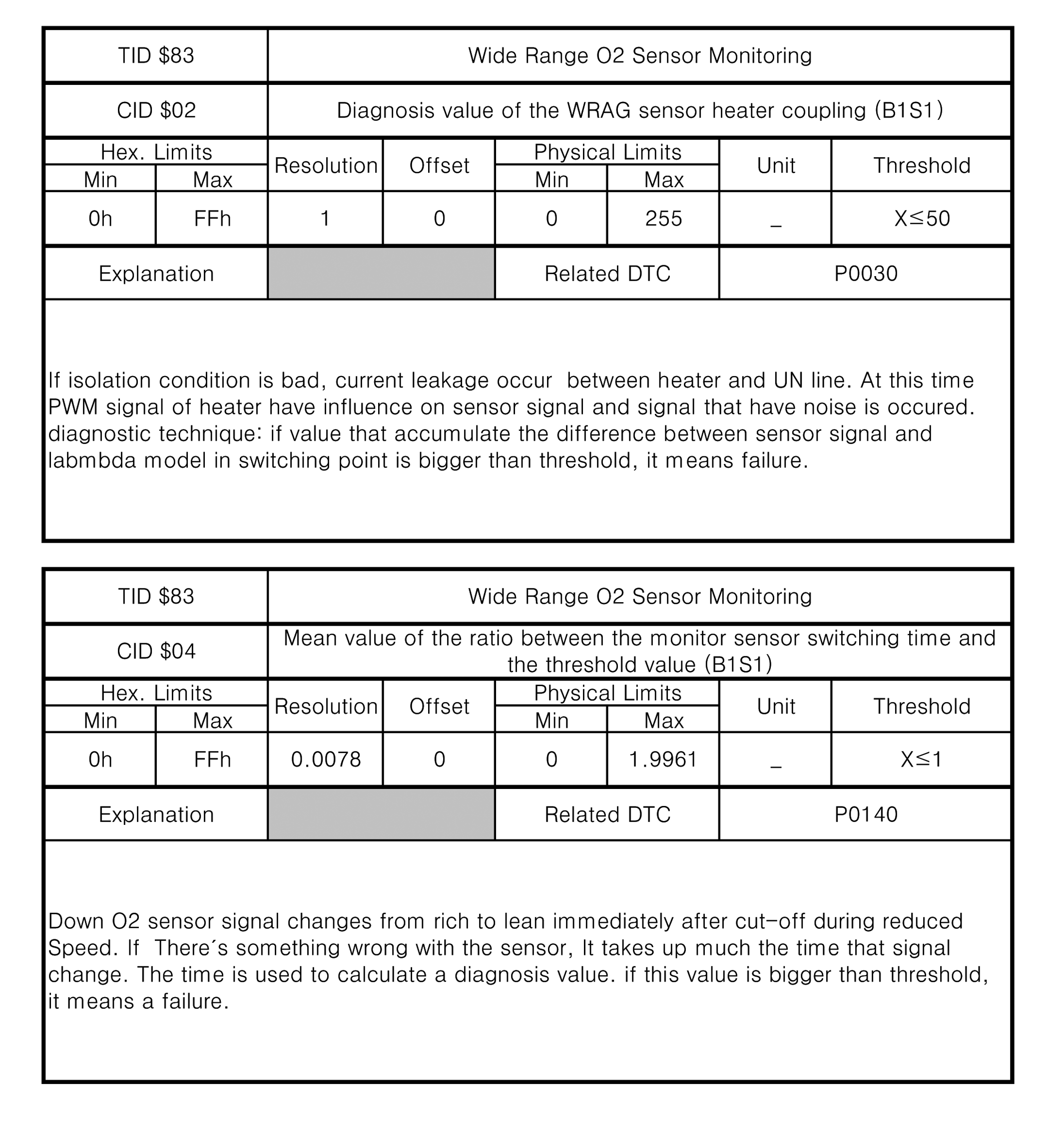

Fig 3: Mode $06 Test Information (2 Of 6)

G00179451

Courtesy of HYUNDAI MOTOR CO.

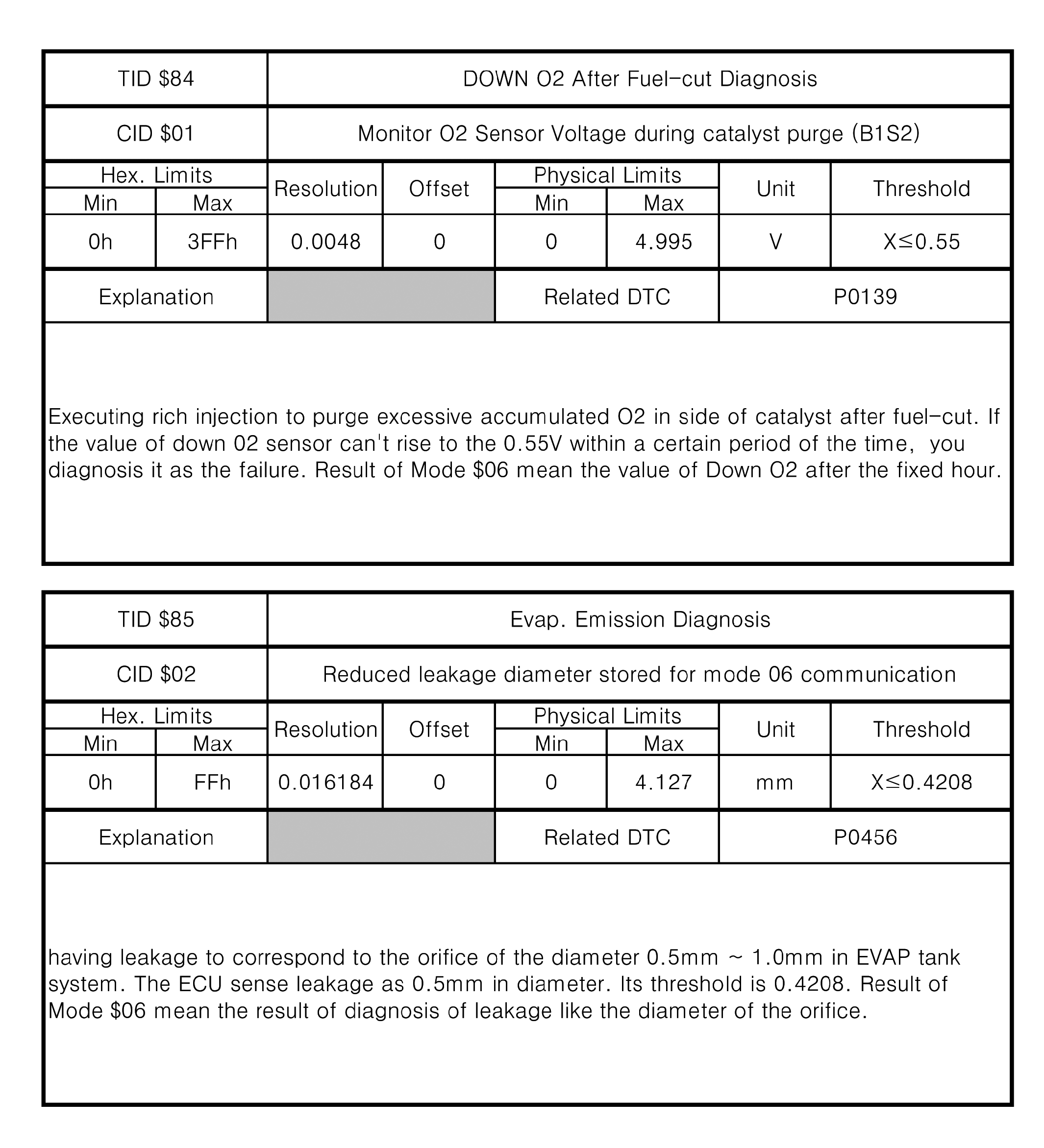

Fig 4: Mode $06 Test Information (3 Of 6)

G00179452

Courtesy of HYUNDAI MOTOR CO.

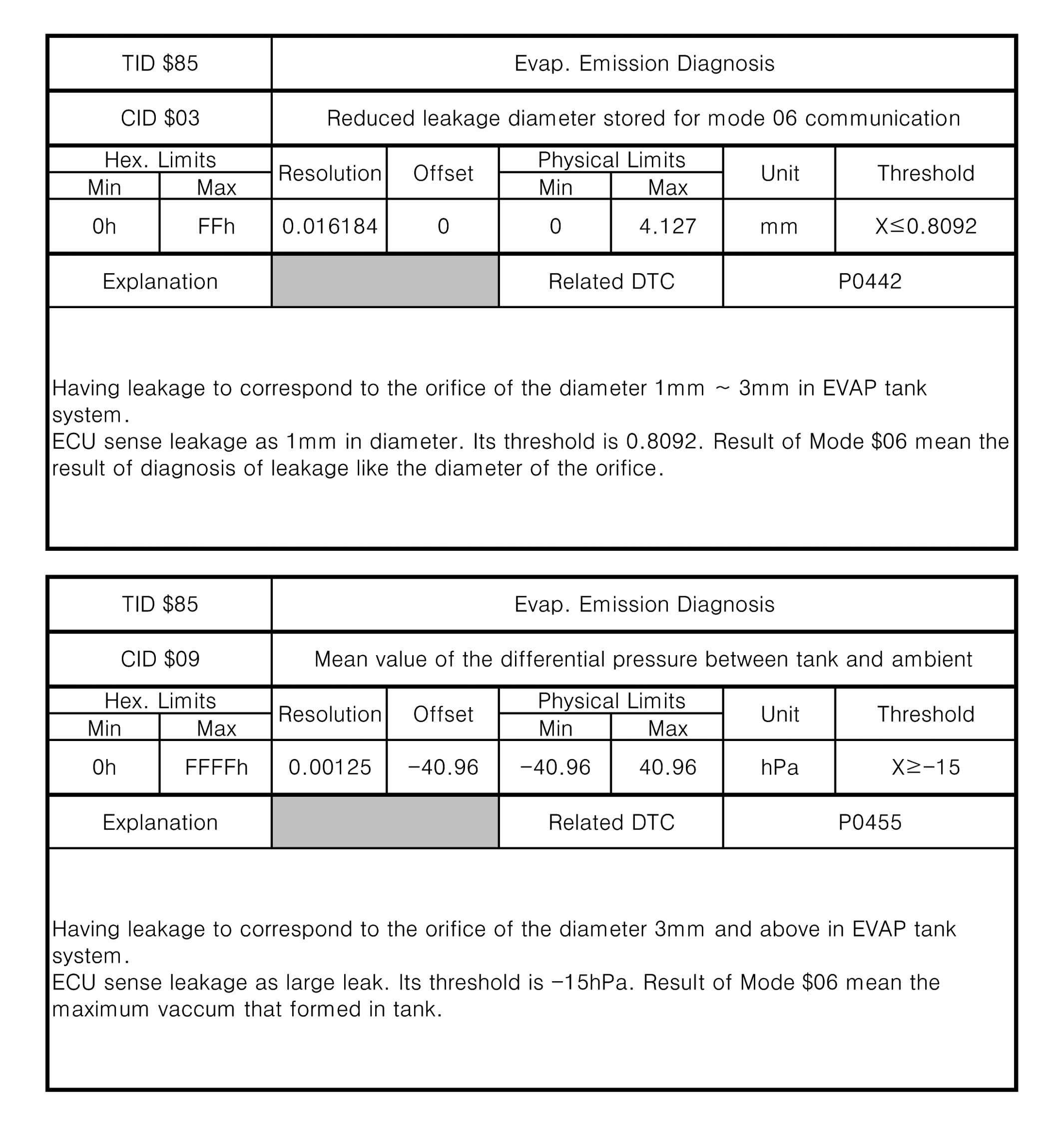

Fig 5: Mode $06 Test Information (4 Of 6)

G00179453

Courtesy of HYUNDAI MOTOR CO.

Fig 6: Mode $06 Test Information (5 Of 6)

G00179454

Courtesy of HYUNDAI MOTOR CO.

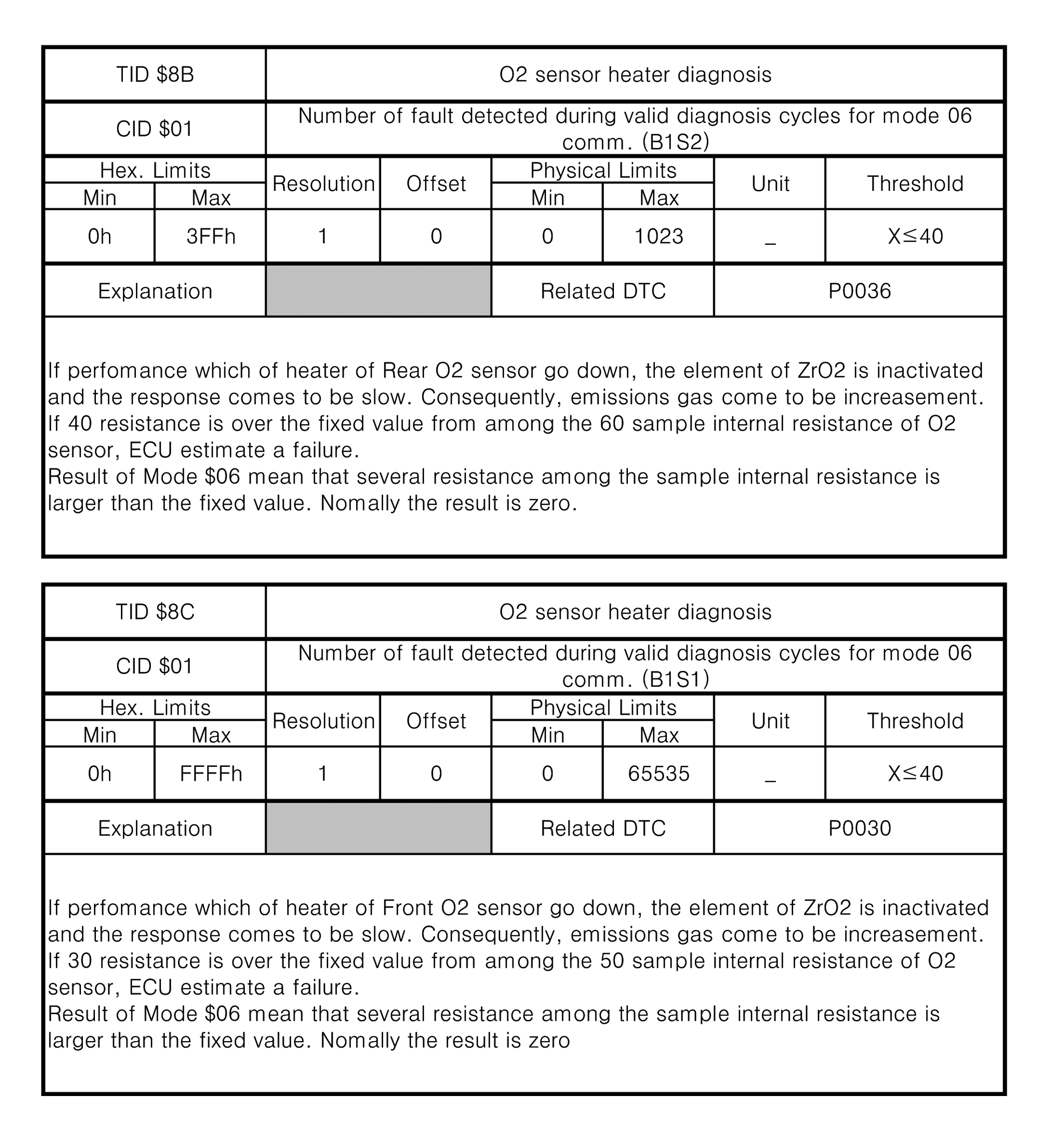

Fig 7: Mode $06 Test Information (6 Of 6)

G00179455

Courtesy of HYUNDAI MOTOR CO.
