Mode $06 Data Without Wide Range O2 Sensor

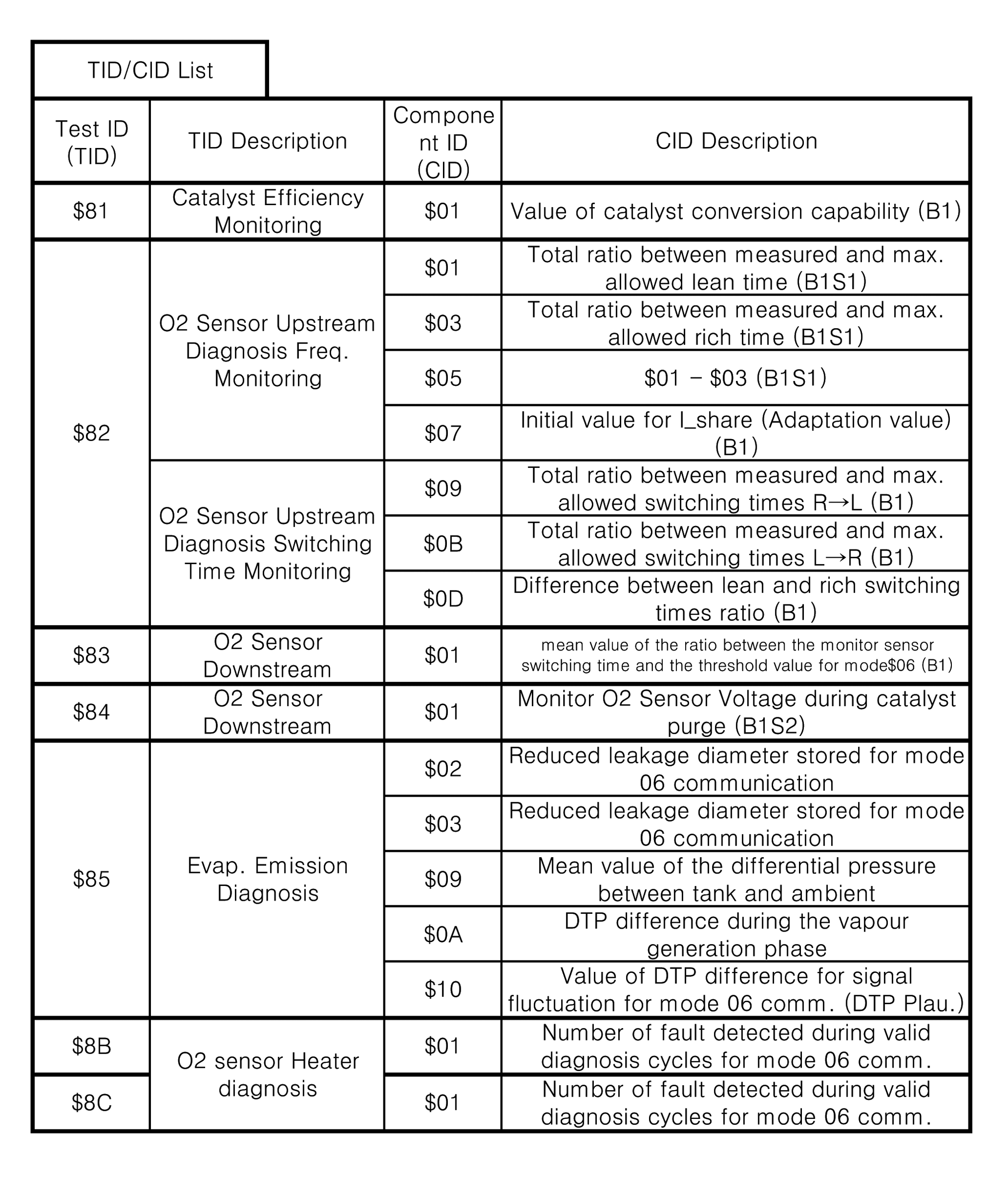

Fig 1: Mode $06 Test Identification

G00179456

Courtesy of HYUNDAI MOTOR CO.

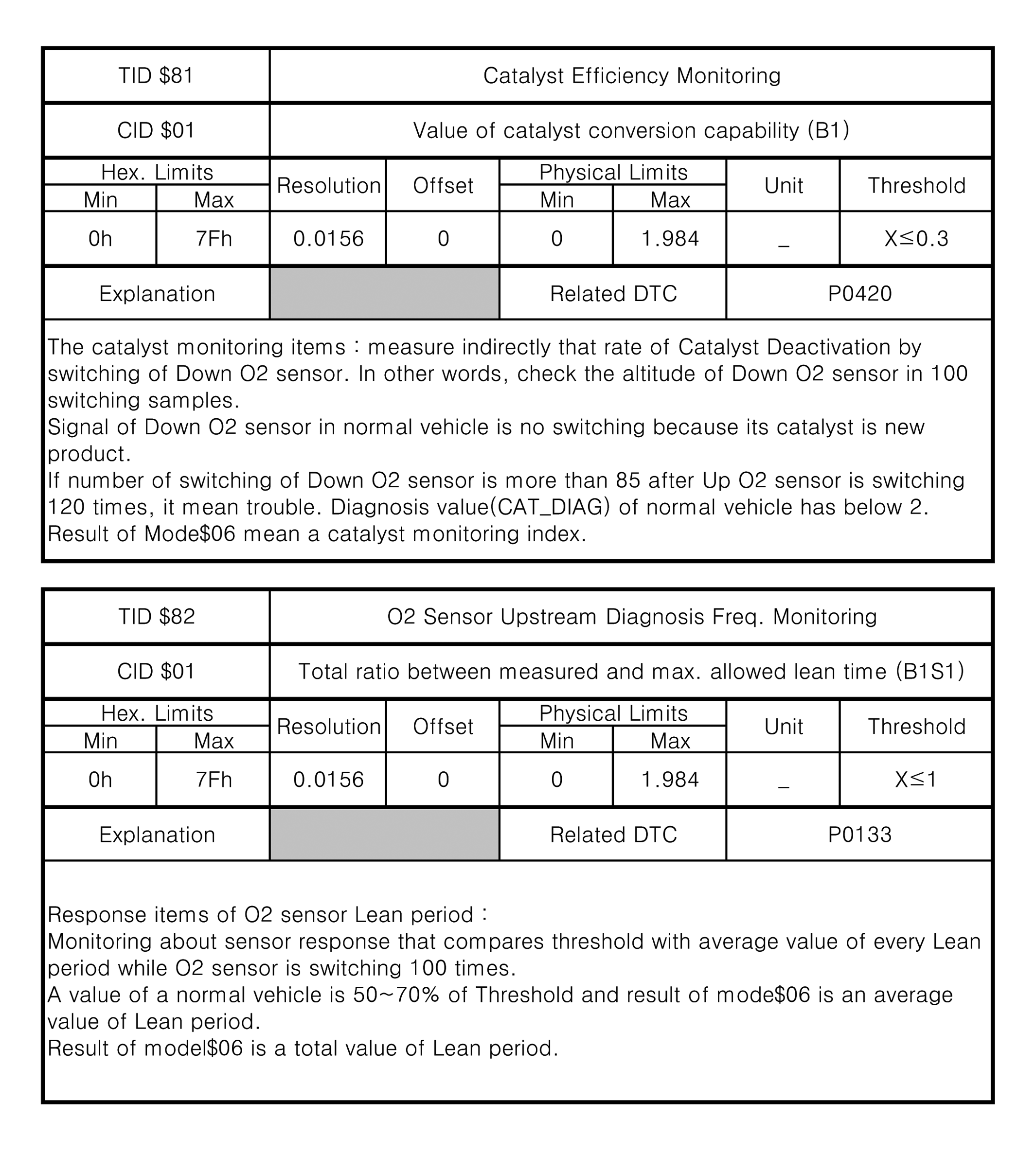

Fig 2: Mode $06 Test Information (1 Of 9)

G00179457

Courtesy of HYUNDAI MOTOR CO.

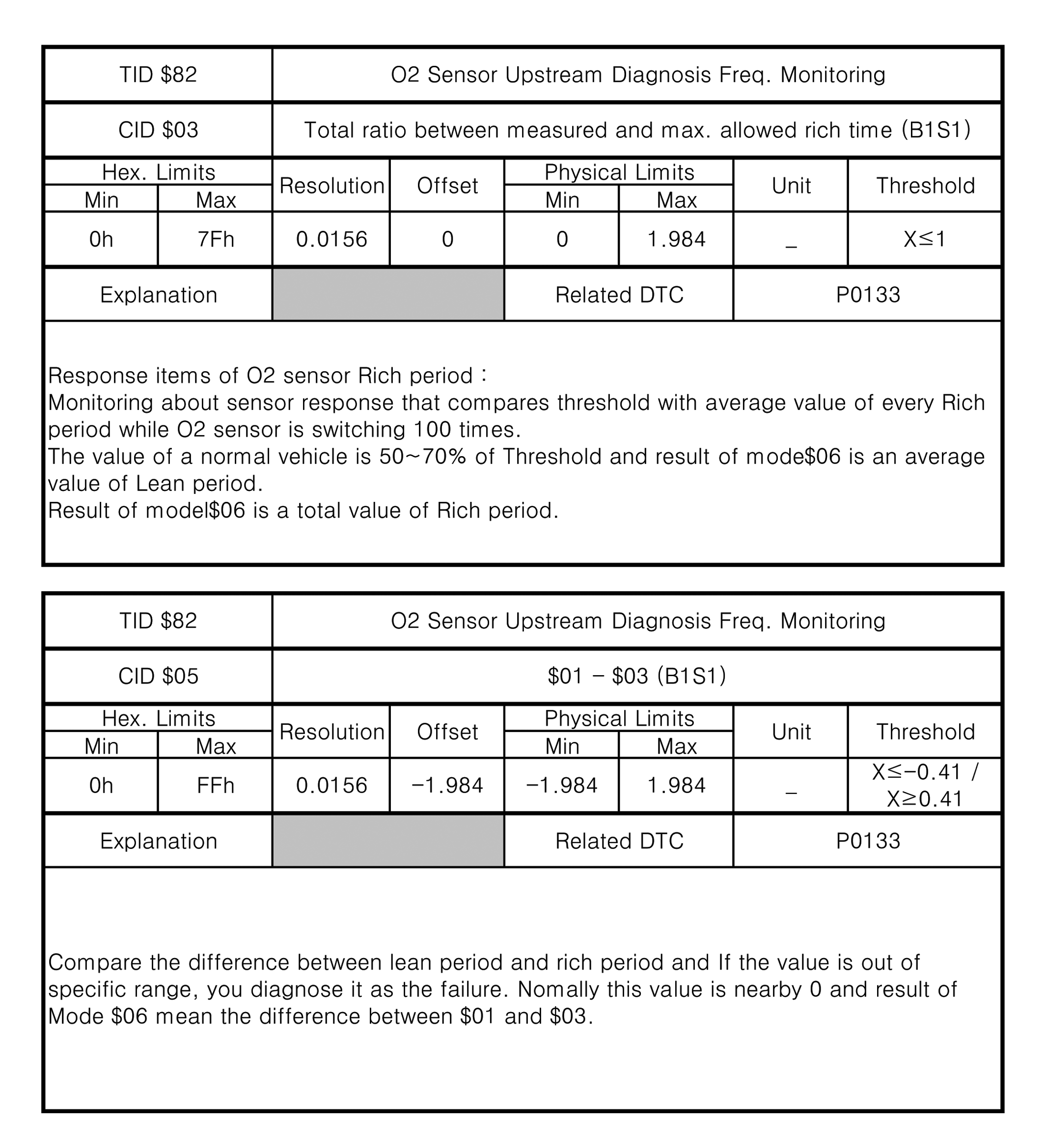

Fig 3: Mode $06 Test Information (2 Of 9)

G00179458

Courtesy of HYUNDAI MOTOR CO.

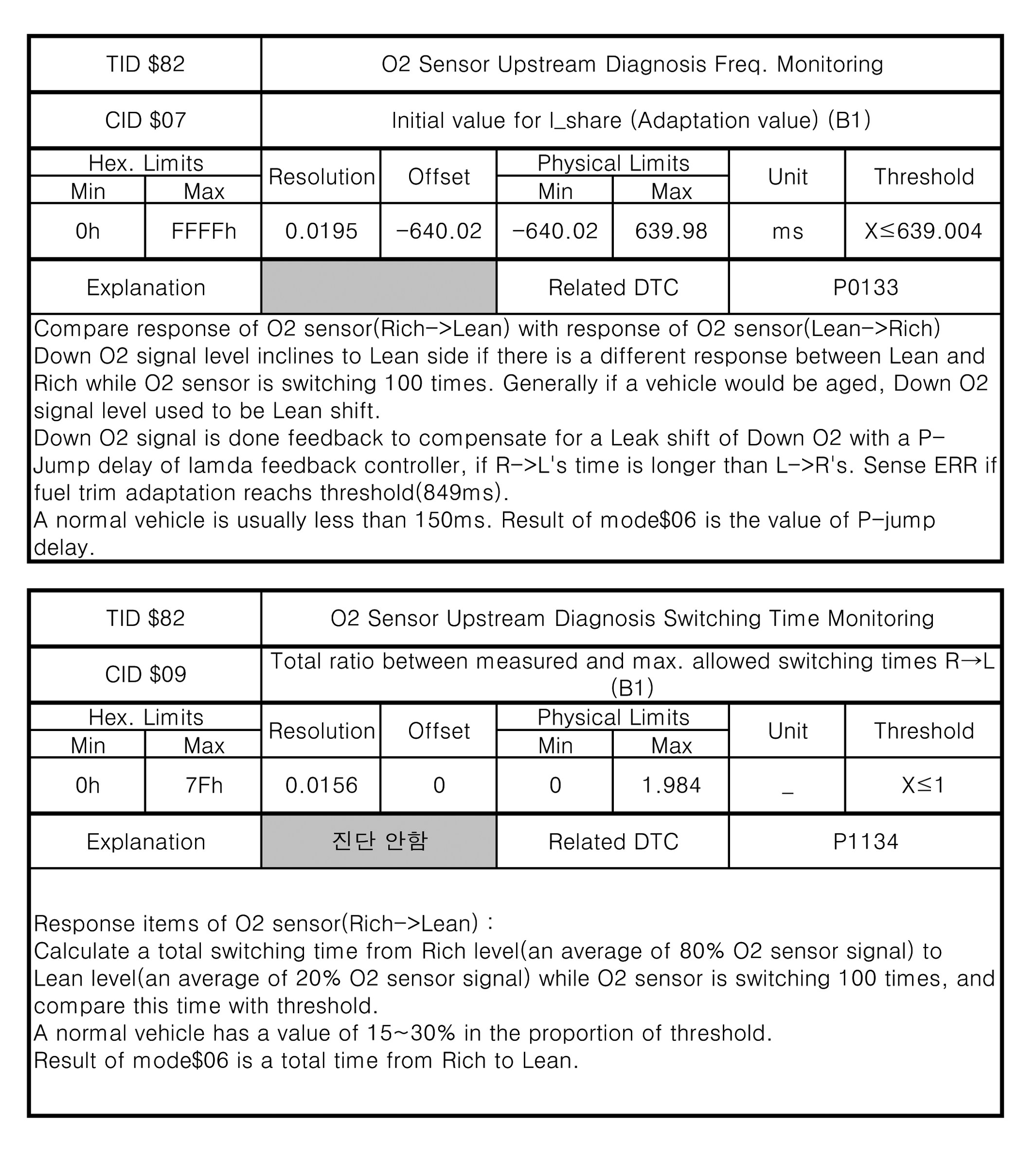

Fig 4: Mode $06 Test Information (3 Of 9)

G00179459

Courtesy of HYUNDAI MOTOR CO.

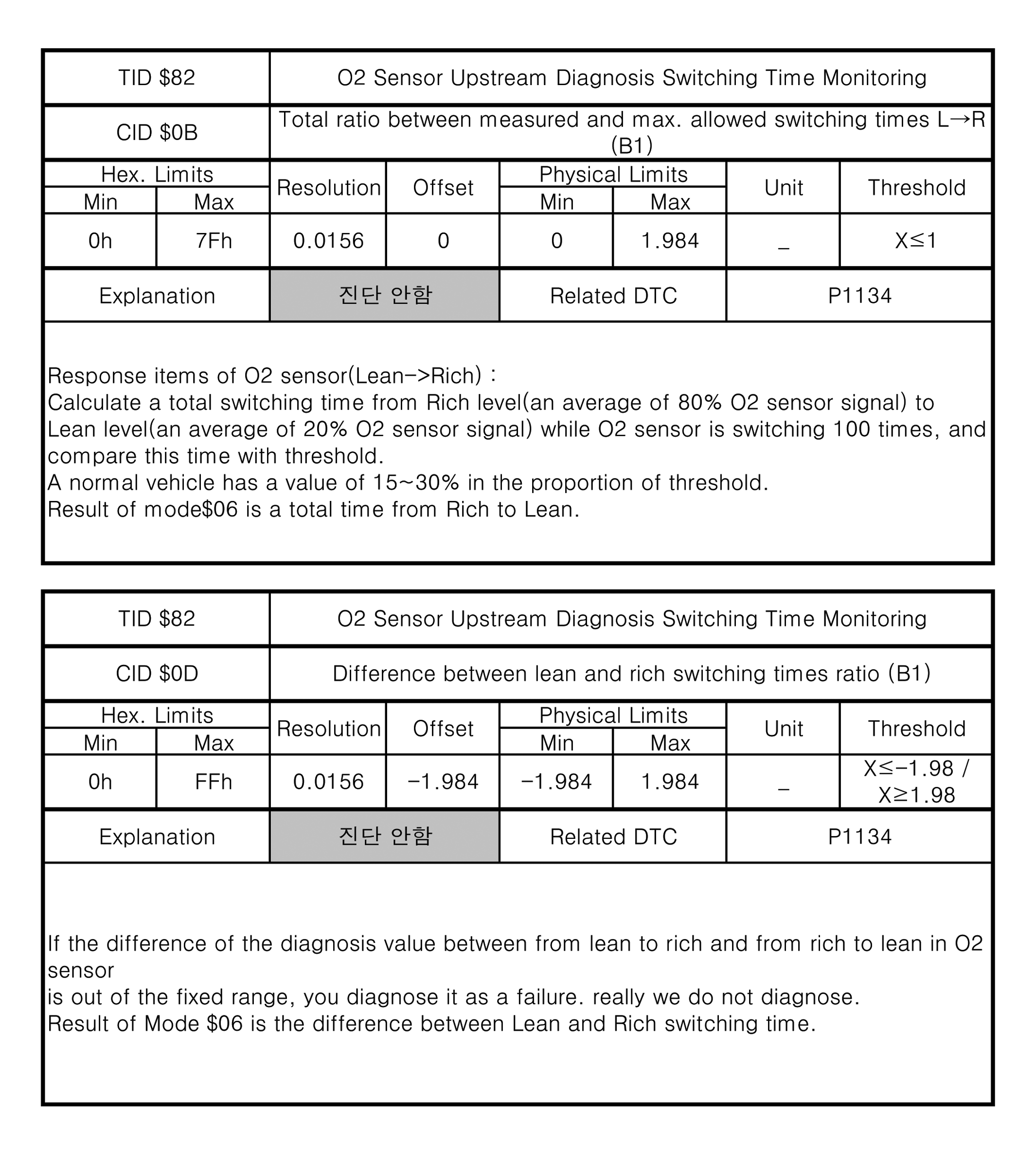

Fig 5: Mode $06 Test Information (4 Of 9)

G00179460

Courtesy of HYUNDAI MOTOR CO.

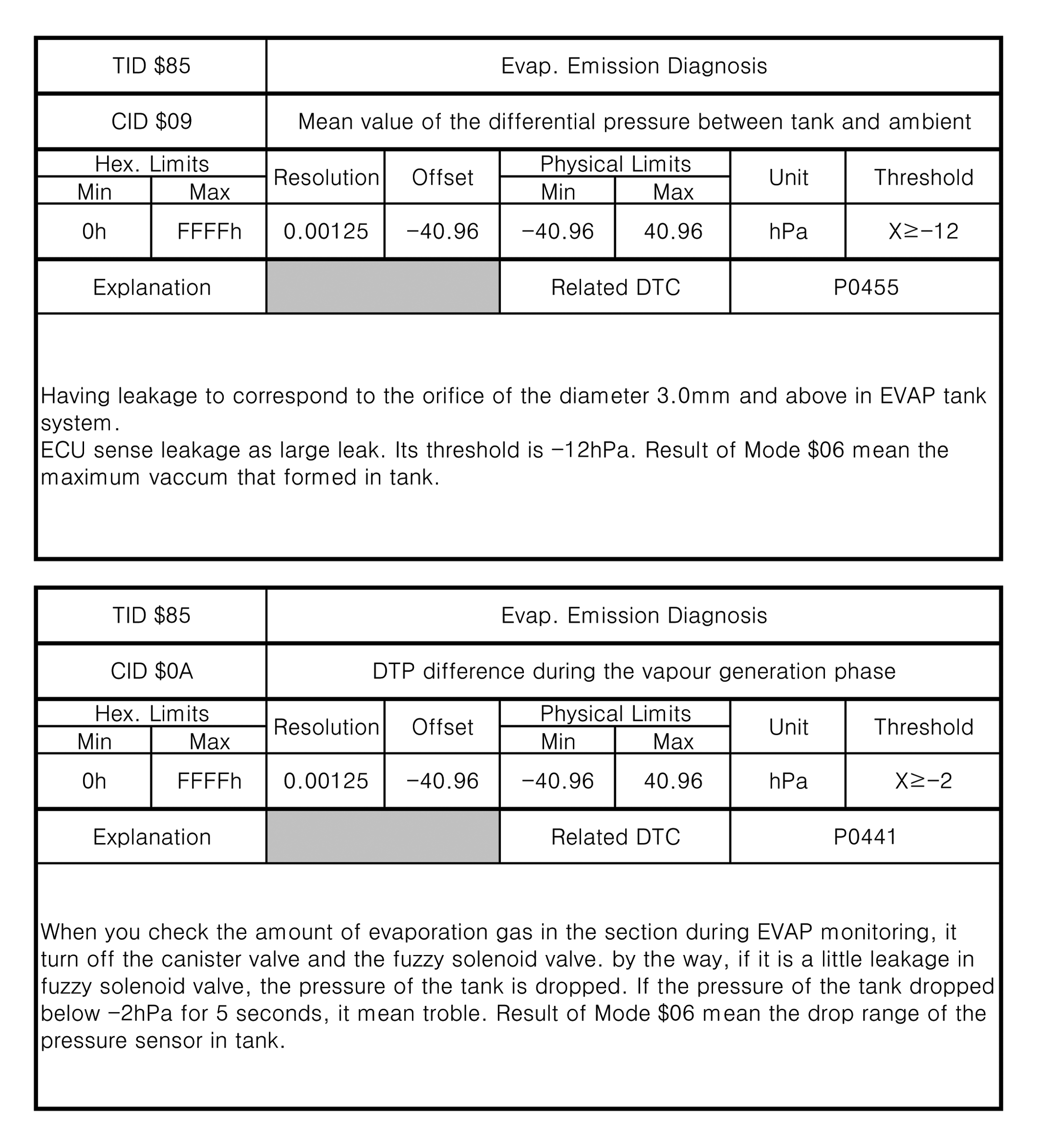

Fig 6: Mode $06 Test Information (5 Of 9)

G00179461

Courtesy of HYUNDAI MOTOR CO.

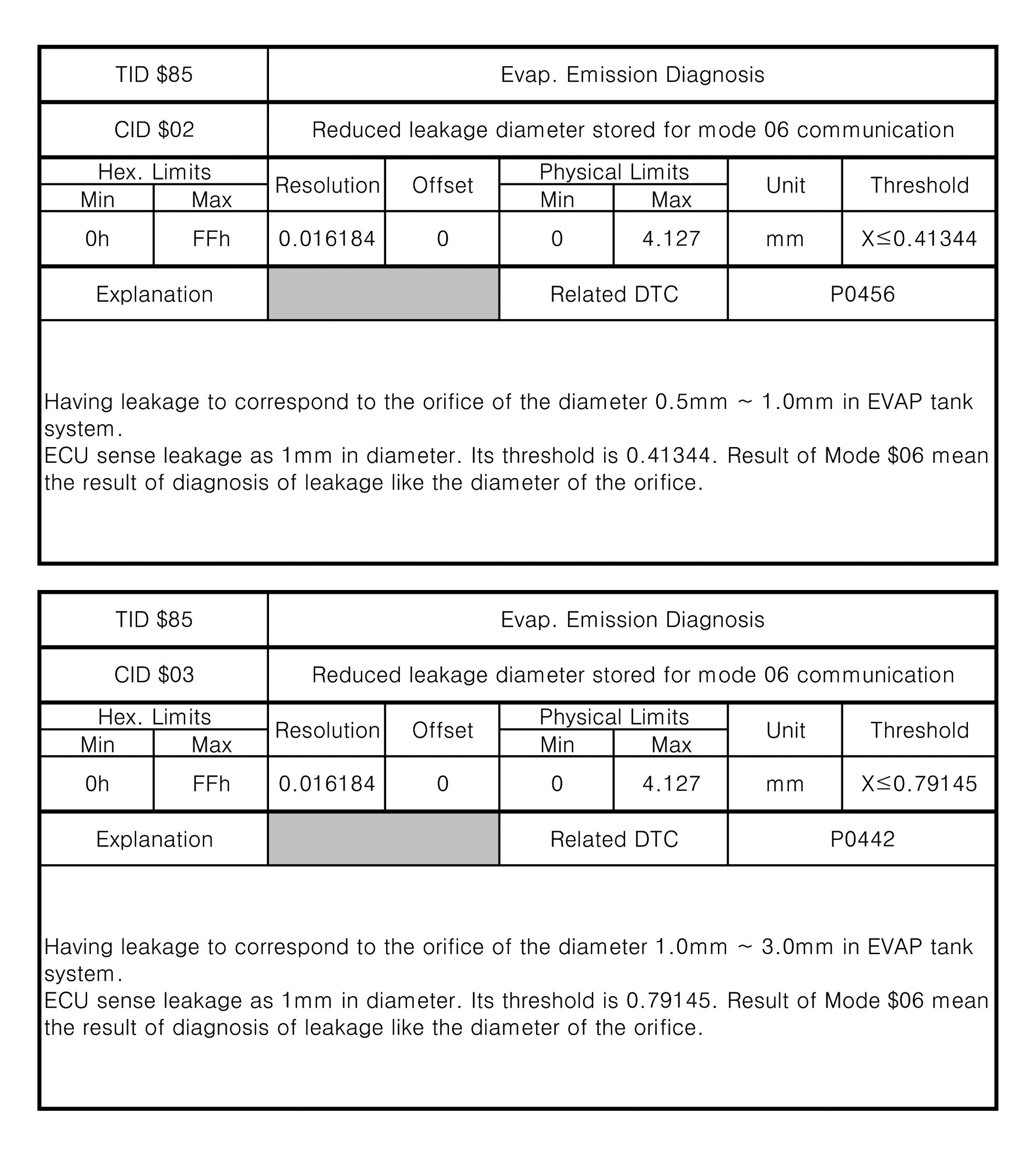

Fig 7: Mode $06 Test Information (6 Of 9)

G00179462

Courtesy of HYUNDAI MOTOR CO.

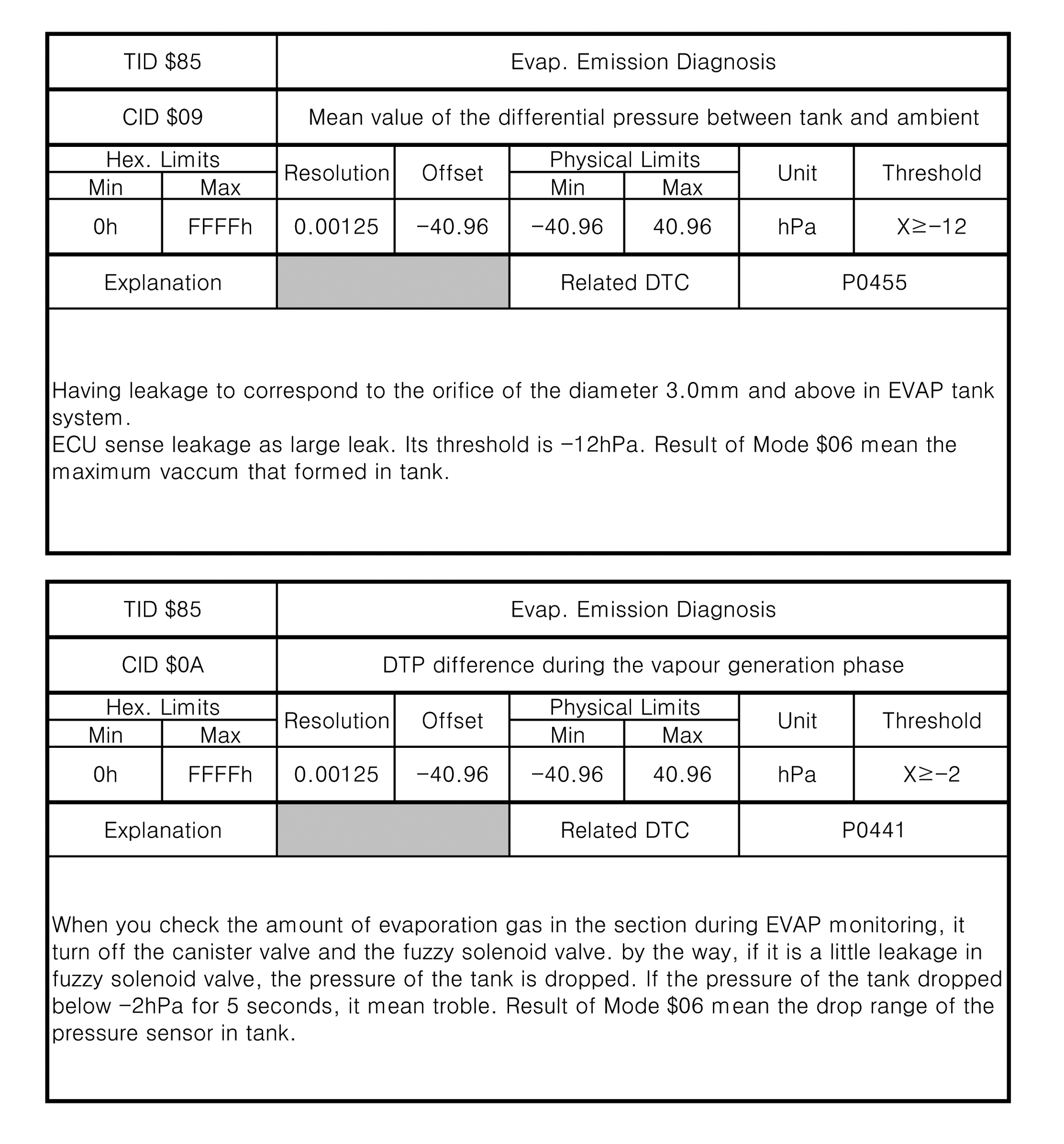

Fig 8: Mode $06 Test Information (7 Of 9)

G00179463

Courtesy of HYUNDAI MOTOR CO.

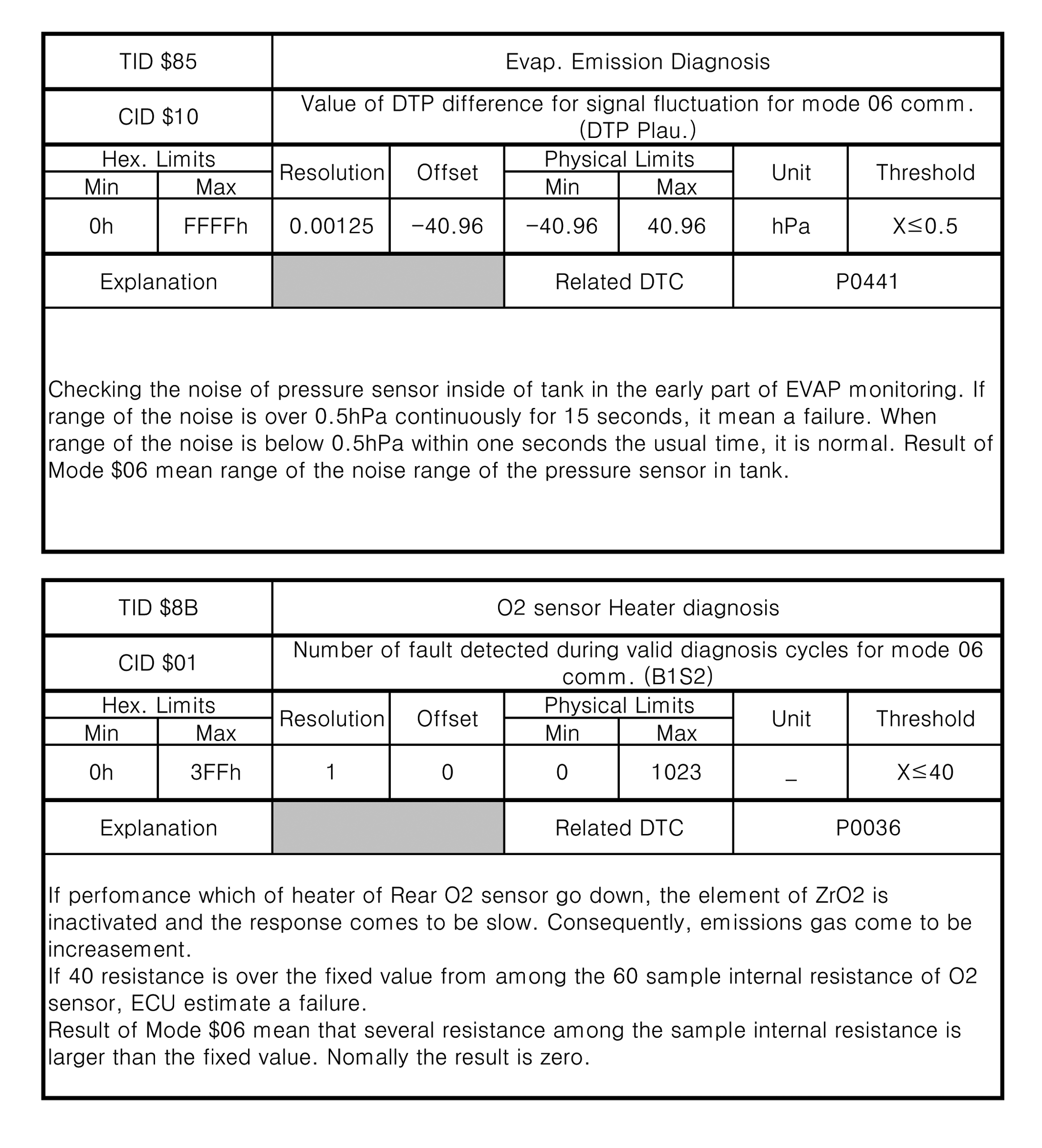

Fig 9: Mode $06 Test Information (8 Of 9)

G00179464

Courtesy of HYUNDAI MOTOR CO.

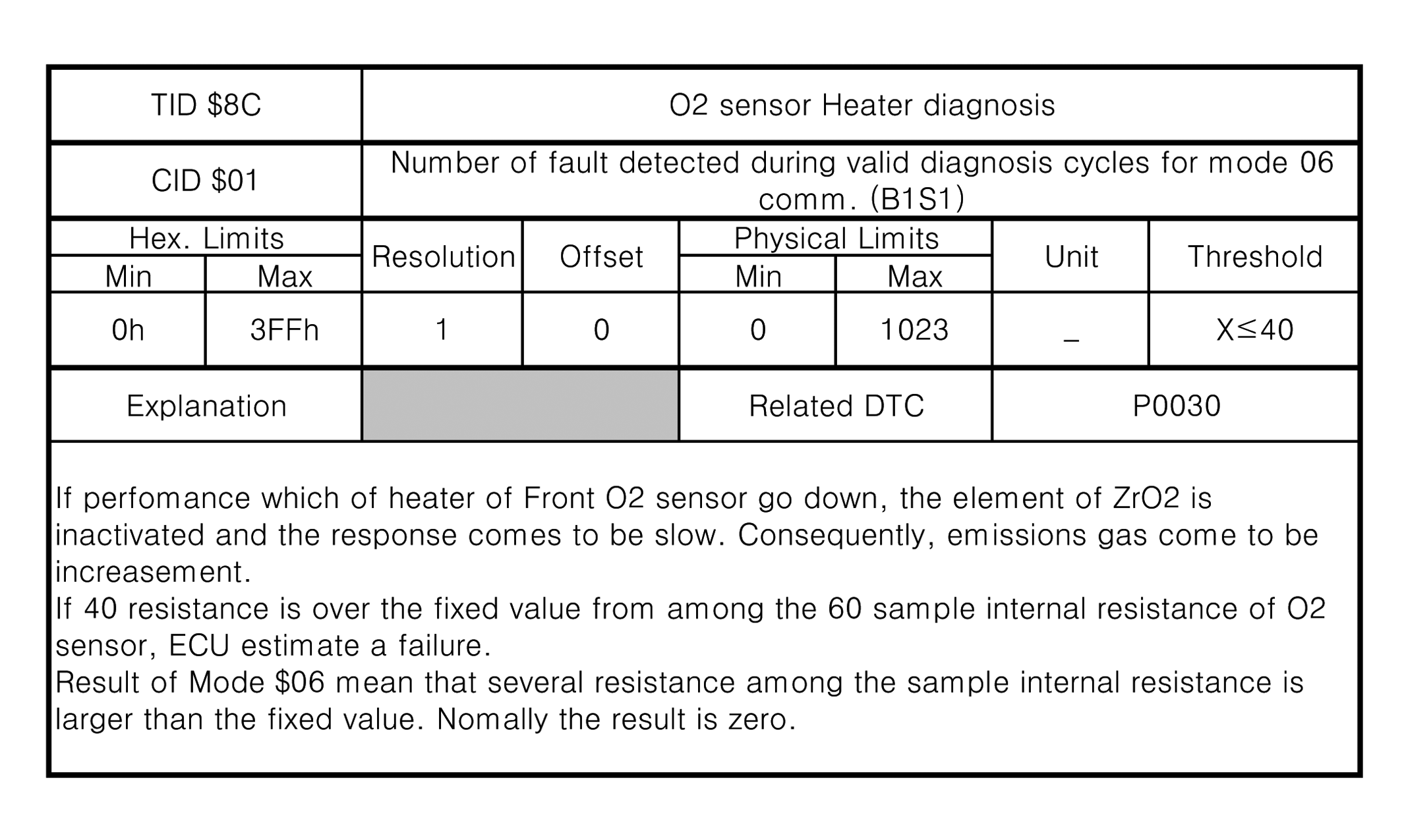

Fig 10: Mode $06 Test Information (9 Of 9)

G00179465

Courtesy of HYUNDAI MOTOR CO.
