Power Window Relay

Remove power window relay from engine compartment relay box. Using ohmmeter, check continuity between indicated relay terminals. See POWER WINDOW RELAY TEST . SeeFig 1 . Replace relay if continuity is not as specified.

POWER WINDOW RELAY TEST

Relay Terminals

Continuity

3 & 5

Yes

1 & 2

⁽¹⁾

⁽¹⁾	Continuity should exist with battery voltage applied between relay terminals No. 3 and 5. Continuity should not exist with no voltage applied.

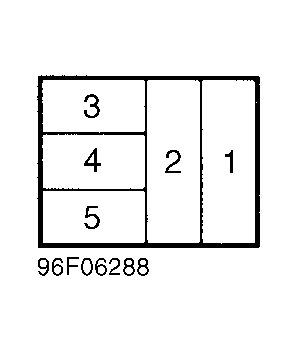

Fig 1: Power Window Relay Terminals

Courtesy of HYUNDAI MOTOR CO.
