Key to Wiring Diagrams and Symbol I.D.

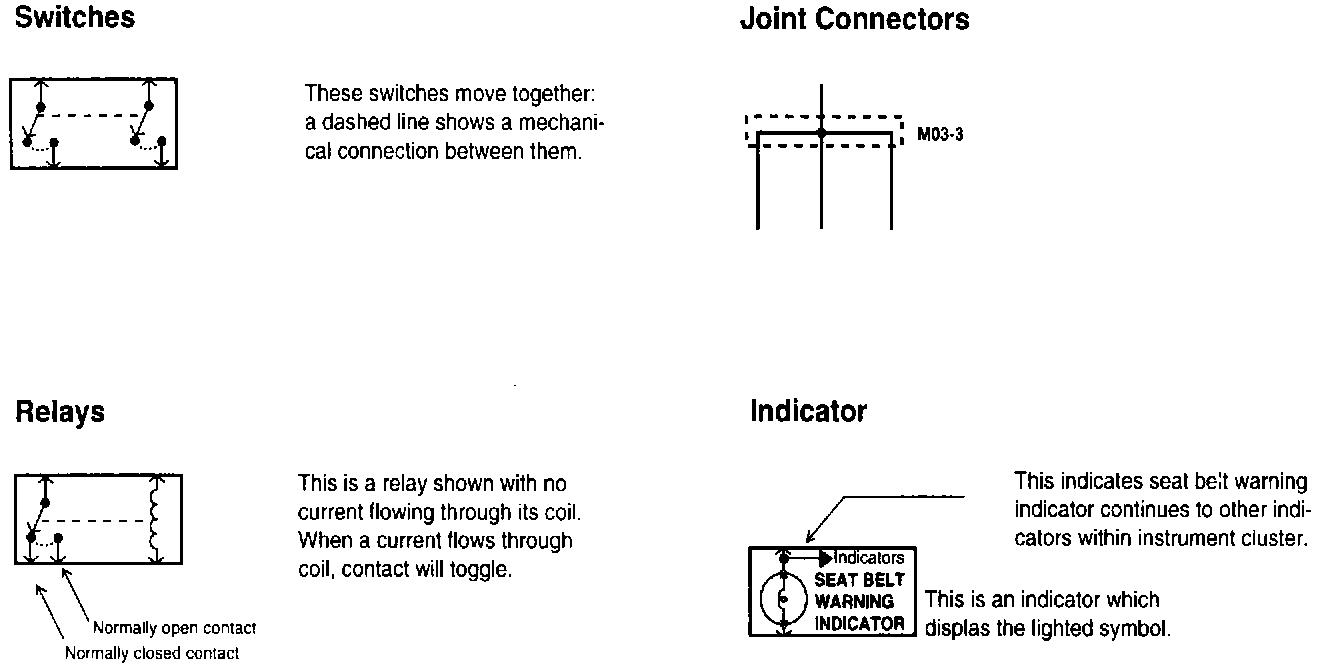

Symbols (Part 1 Of 3):

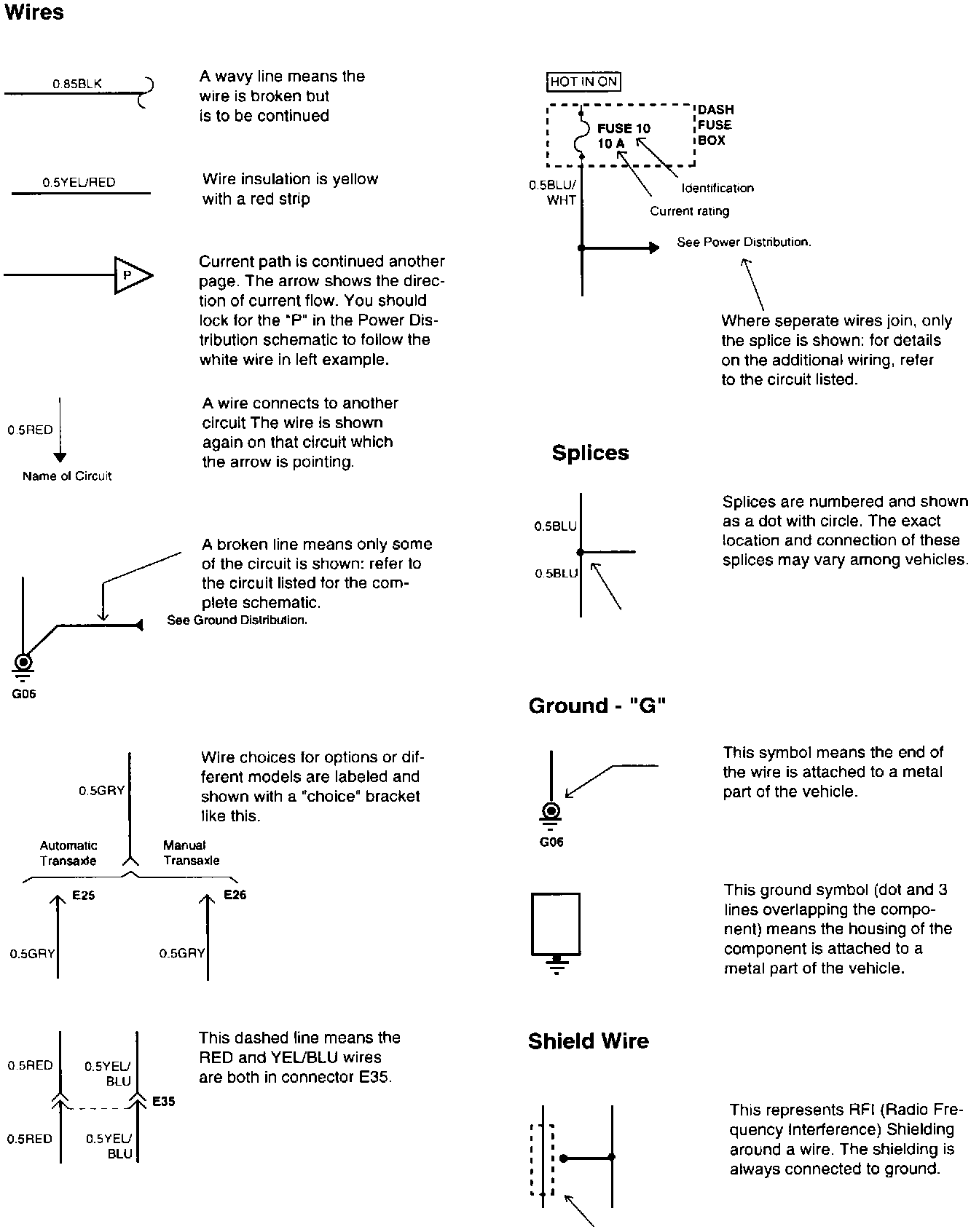

Symbols (Part 2 Of 3):

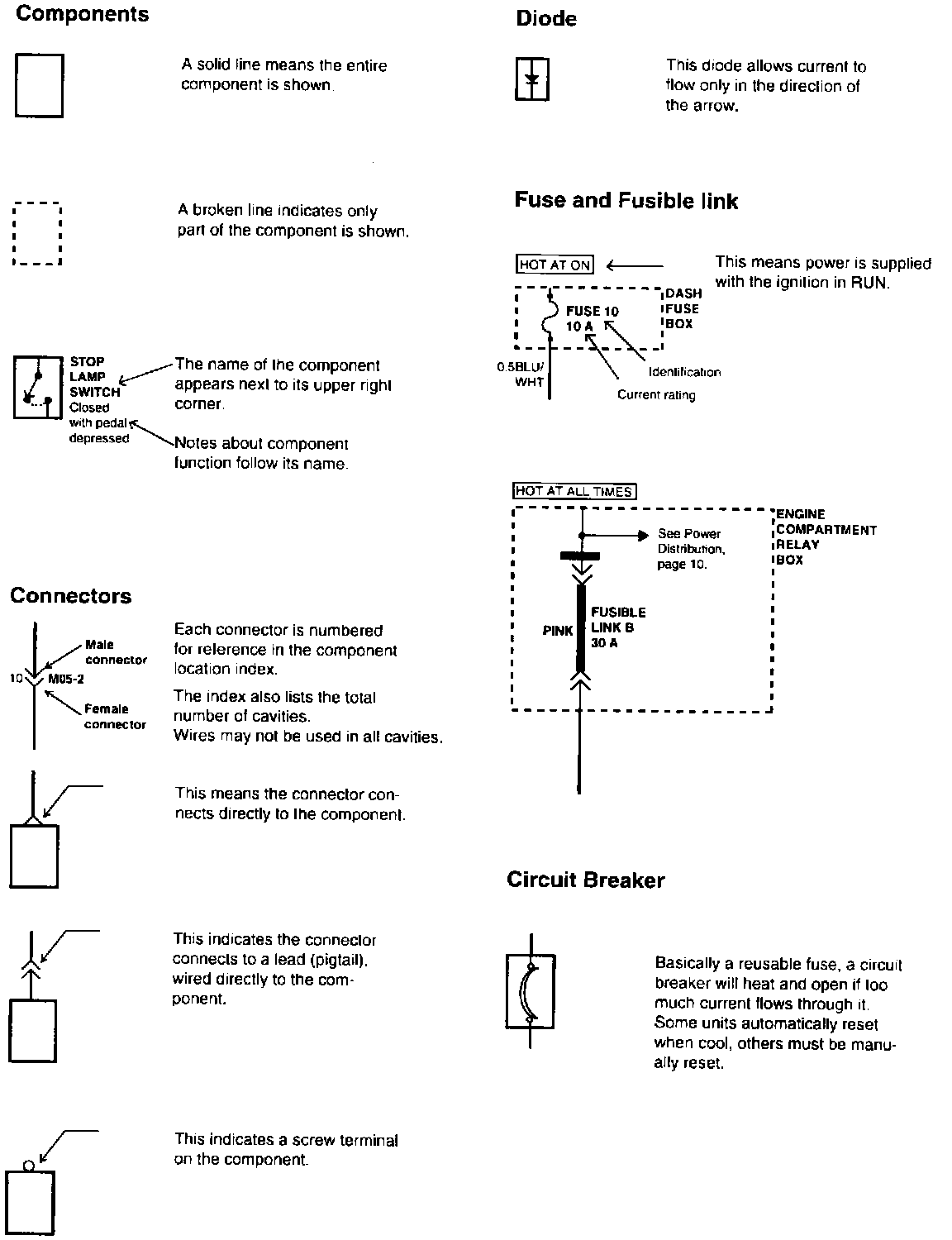

Symbols (Part 3 Of 3):




The symbols and the abbreviations are used throughout the manual.
