Transmission Position Sensor/Switch: Testing and Inspection

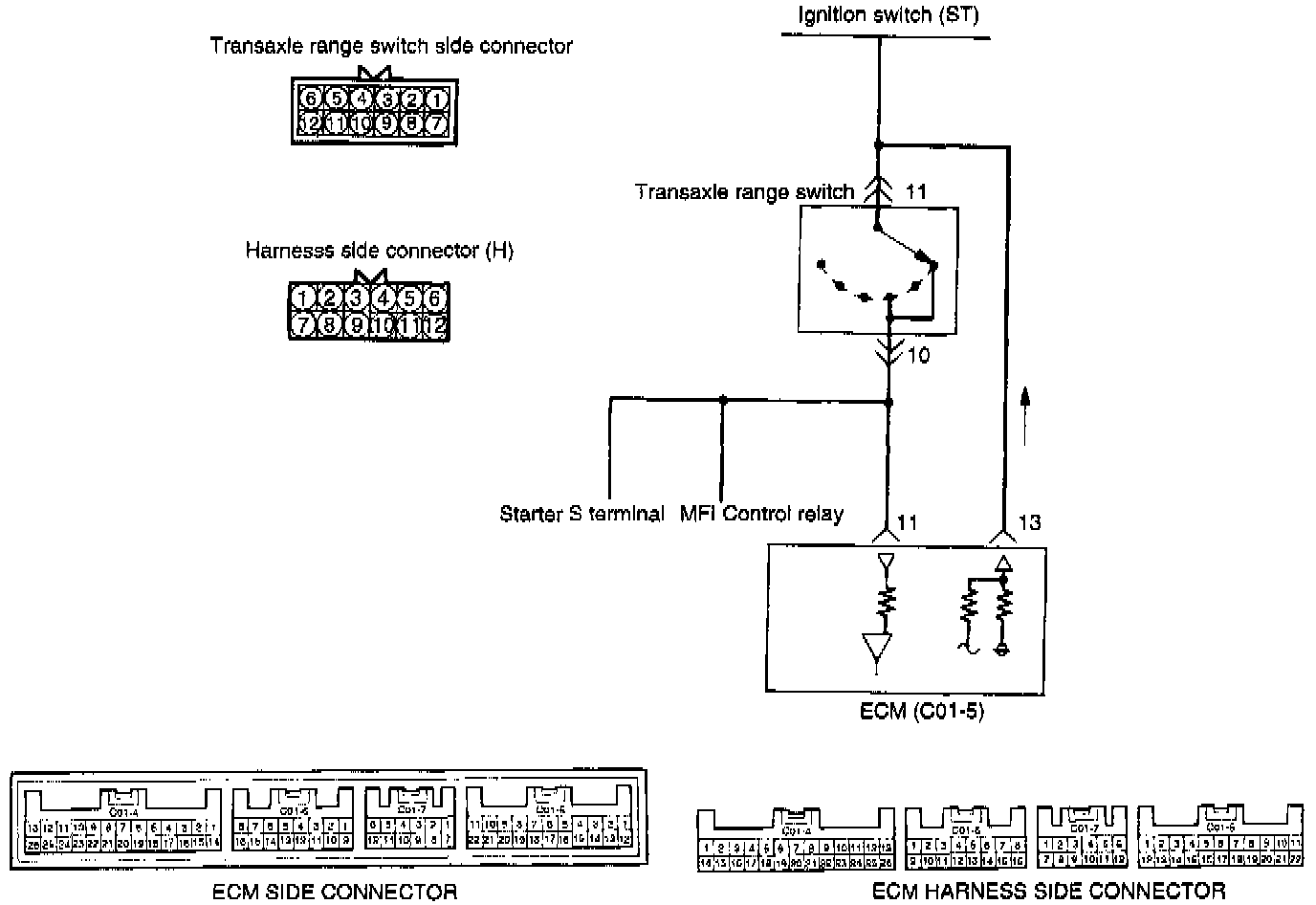

CIRCUIT DIAGRAM

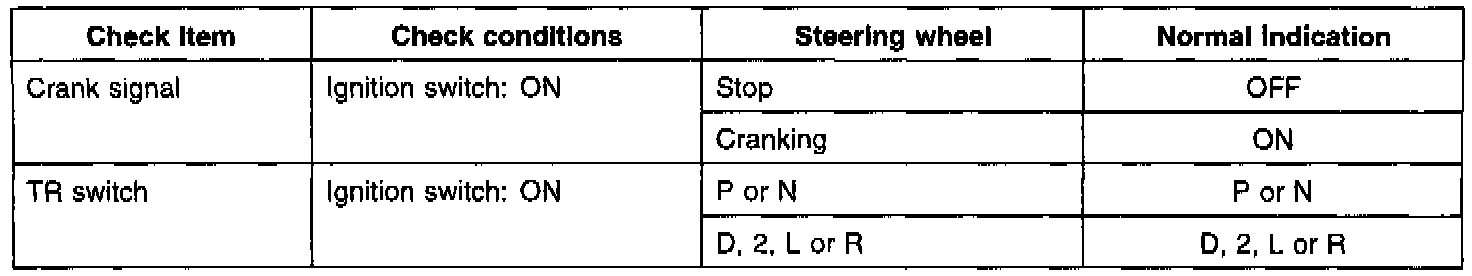

INSPECTION USING SCAN TOOL

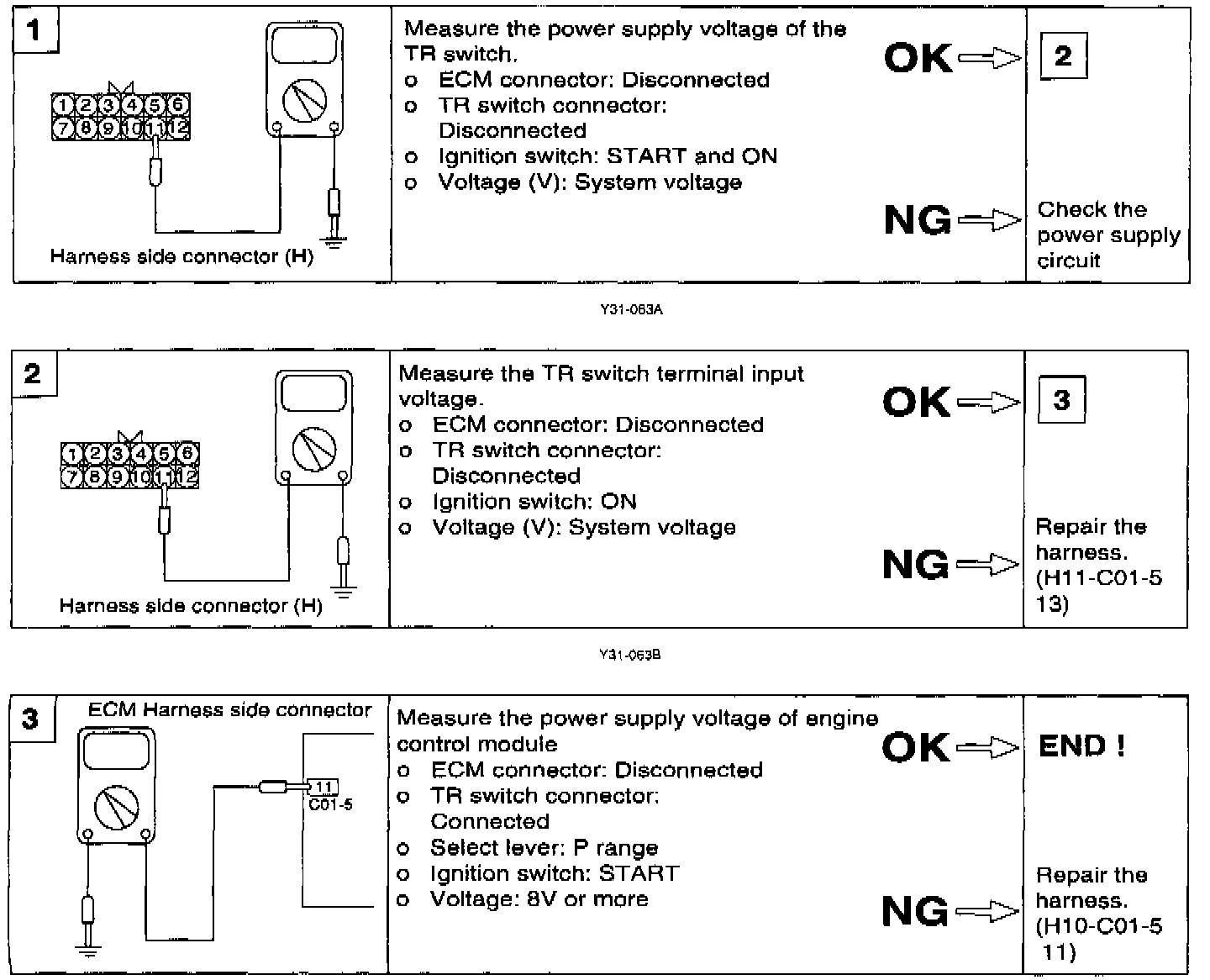

HARNESS INSPECTION PROCEDURE

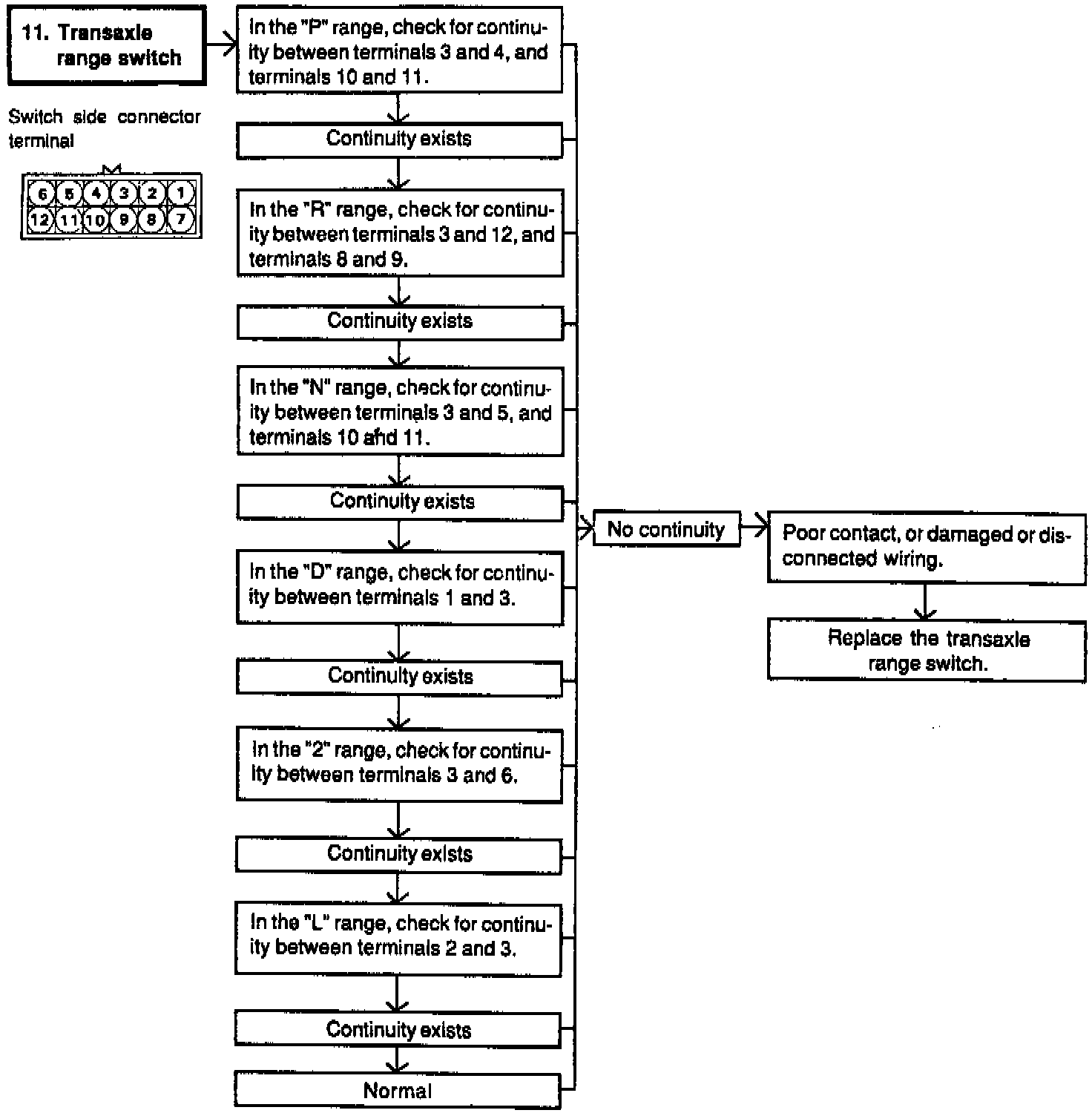

TRANSAXLE TEST CHART

TROUBLESHOOTING HINTS
If the transaxle range switch harness check is normal but the transaxle range switch output is abnormal, check the control cable adjustment.
