Engine Control Module: Testing and Inspection

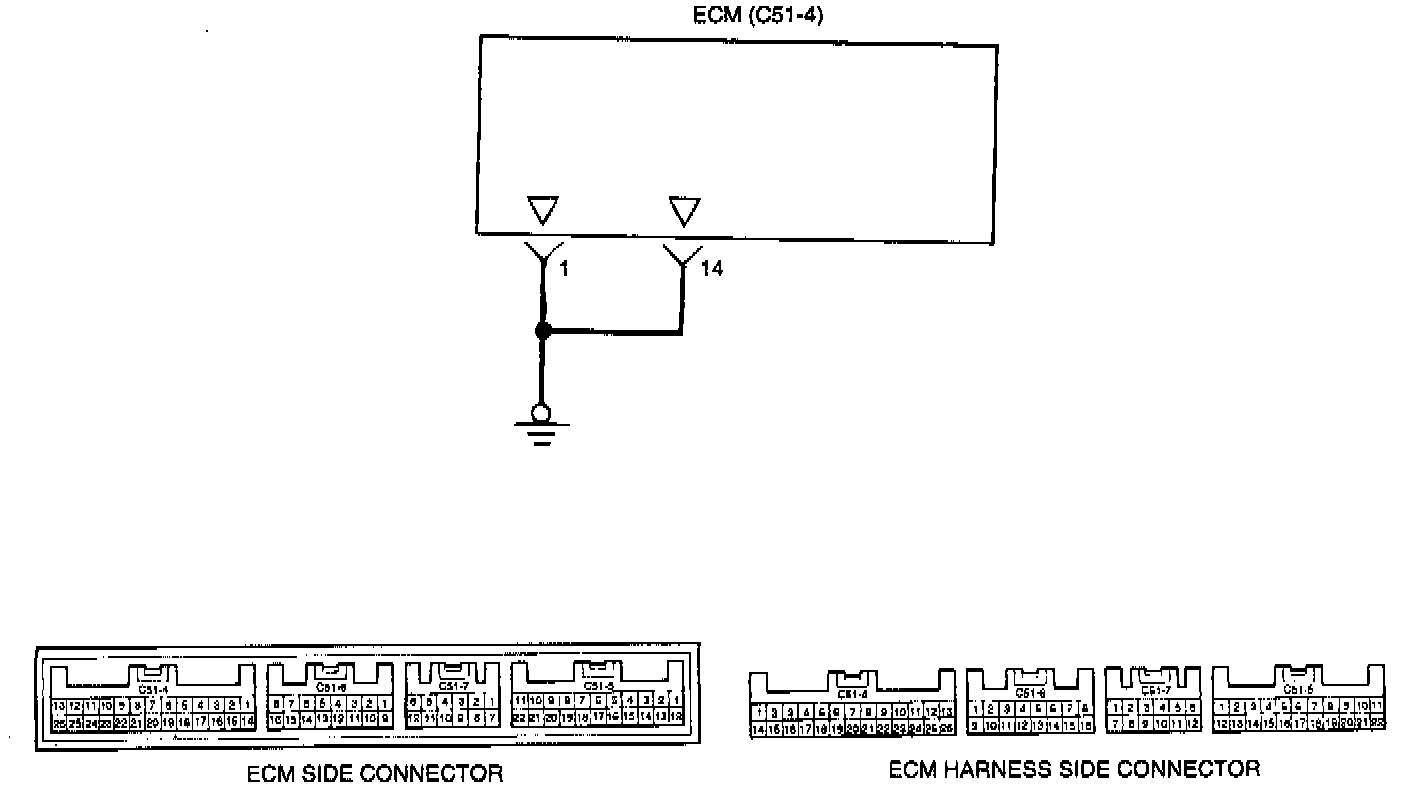

CIRCUIT DIAGRAM

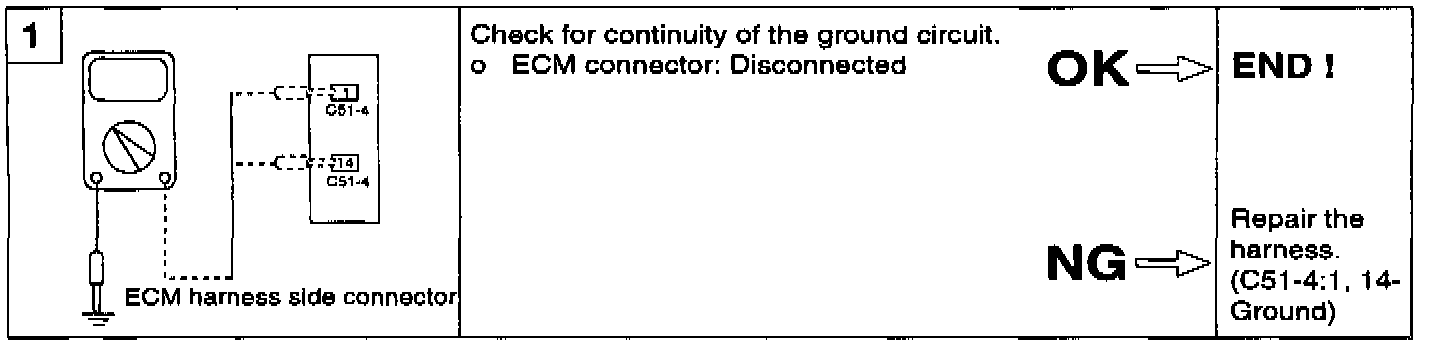

HARNESS INSPECTION

TROUBLESHOOTING HINTS
If the ground wire of the ECM is not connected securely to ground, the unit will not operate correctly.
