Power Window Main Switch

Remove main switch. Check continuity between specified terminals with switch in specified position. See MAIN SWITCH CONTINUITY . SeeFig 1 . If continuity is not as specified, replace main switch.

MAIN SWITCH CONTINUITY

Switch Position

Continuity Between Terminals No.

Left Front ⁽¹⁾

1 & 9; 2 & 8

Off

1, 2 & 9

Down

1 & 8; 2 & 9

Right Front

3 & 9; 4 & 8

Off

3, 4 & 9

Down

3 & 8; 4 & 9

Left Rear

6 & 9; 7 & 8

Off

6, 7 & 9

Down

6 & 8; 7 & 9

Right Rear

8 & 11; 9 & 10

Off

9, 10 & 11

Down

8 & 10; 9 & 11

Lock Switch

Lock

⁽²⁾

Unlock

5 & 8

⁽¹⁾	If equipped with auto down function, continuity should also exist between terminals No. 1, 2 and 9 at all times.

⁽²⁾	Continuity should not exist between terminals No. 5 and 8.

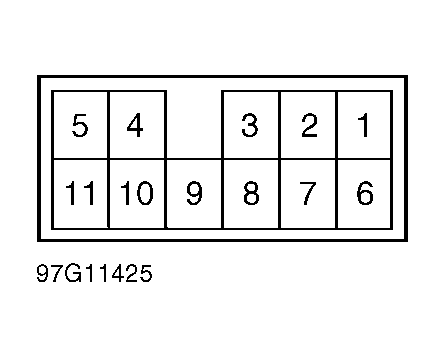

Fig 1: Identifying Main Switch Terminals

Courtesy of HYUNDAI MOTOR CO.
