Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

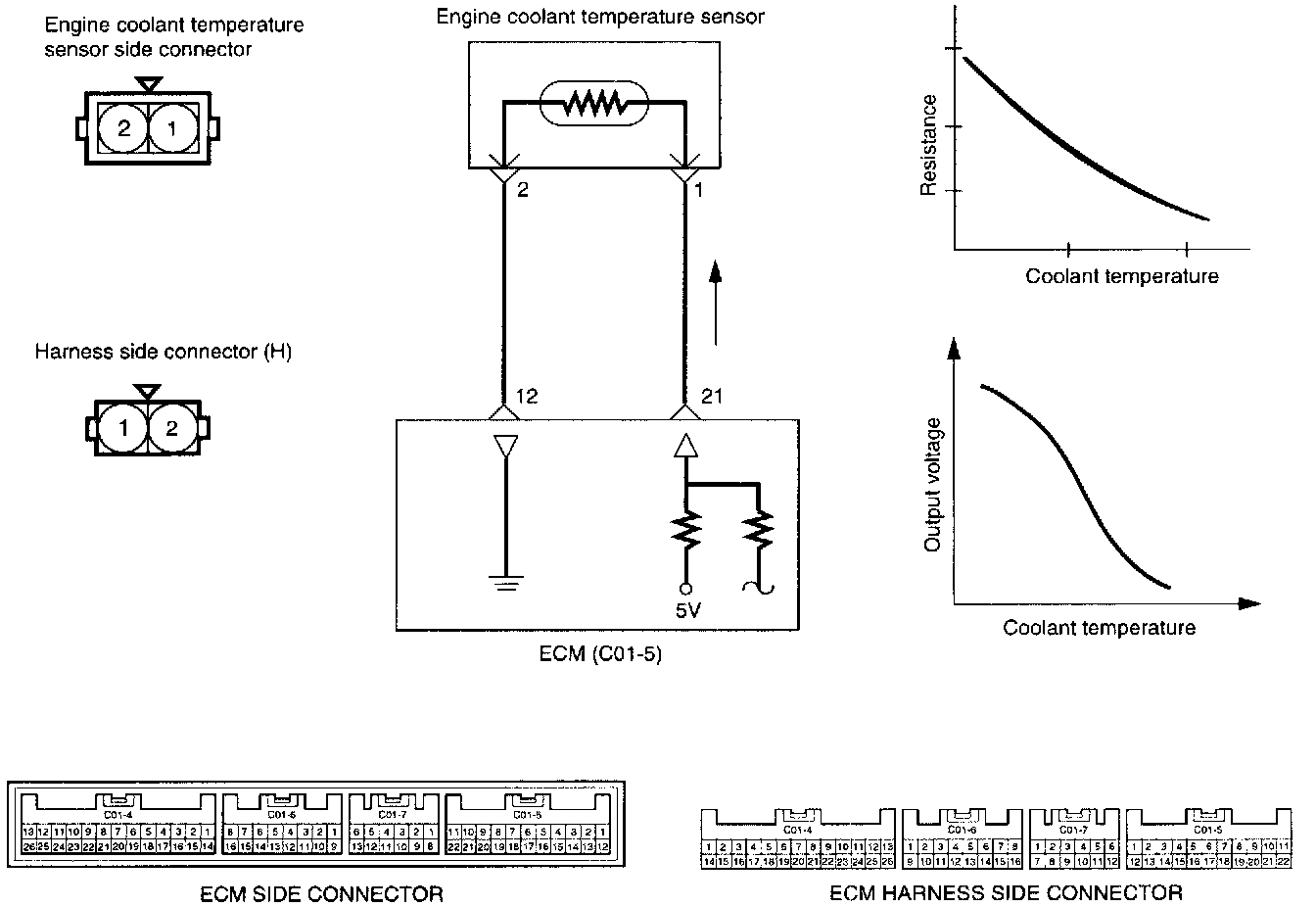

CIRCUIT DIAGRAM

TROUBLESHOOTING HINTS
If the fast idle speed is not enough or the engine gives off dark smoke during the engine warm-up operation, the engine coolant temperature sensor might be the cause.

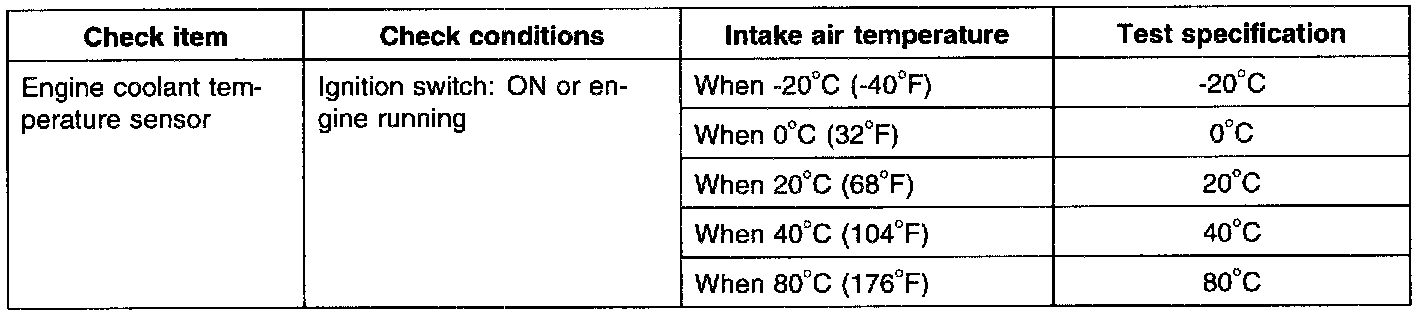

Using GST

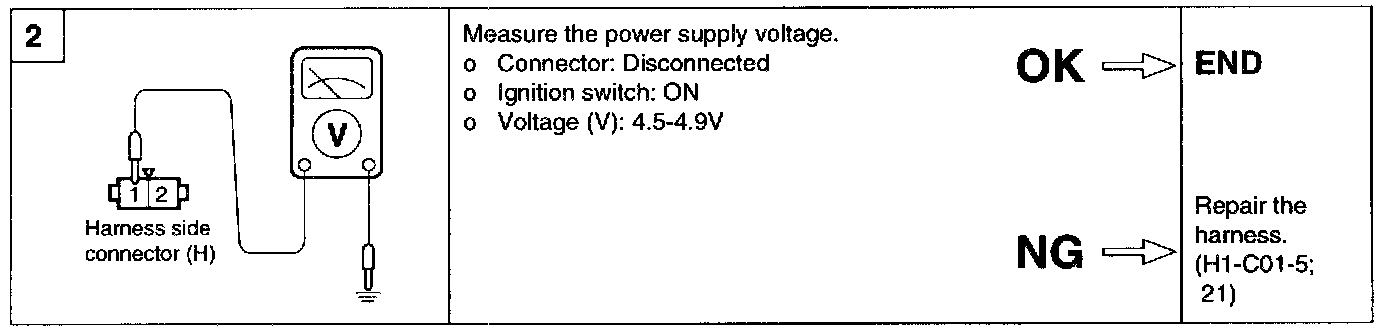

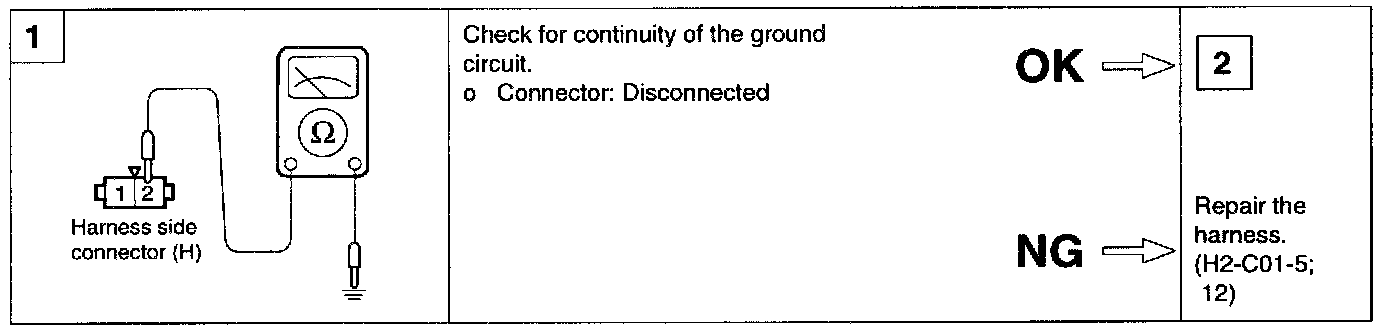

Harness Inspection Procedures








INSPECTION
1. Remove engine coolant temperature sensor from the intake manifold.

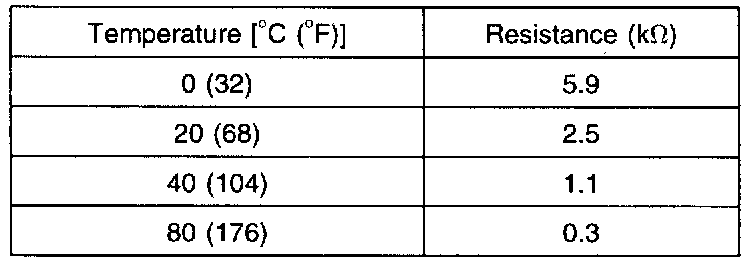

2. With temperature sensing portion of engine coolant temperature sensor immersed in hot water, check resistance.
3. If the resistance deviates greatly from the standard value, replace the sensor.
