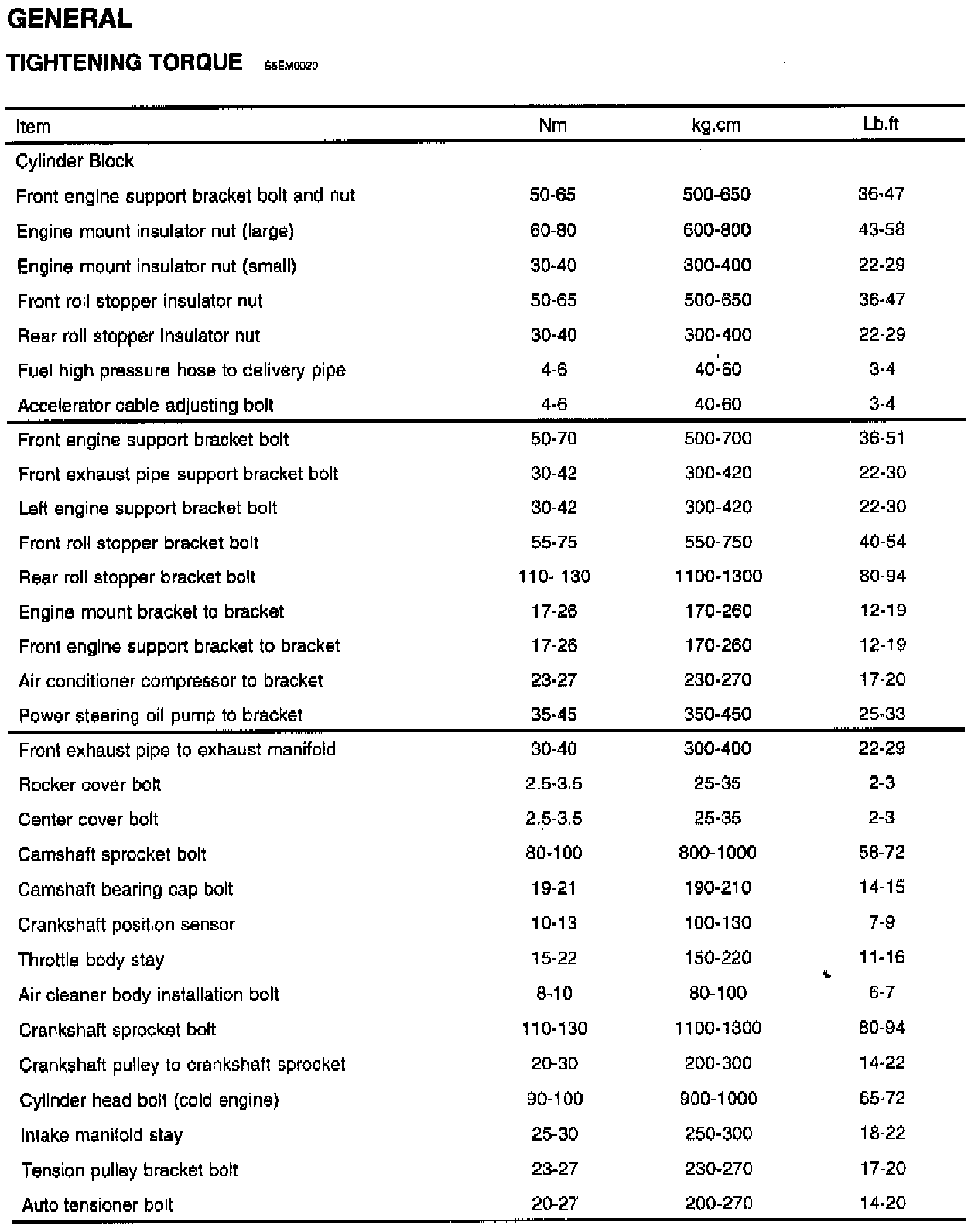

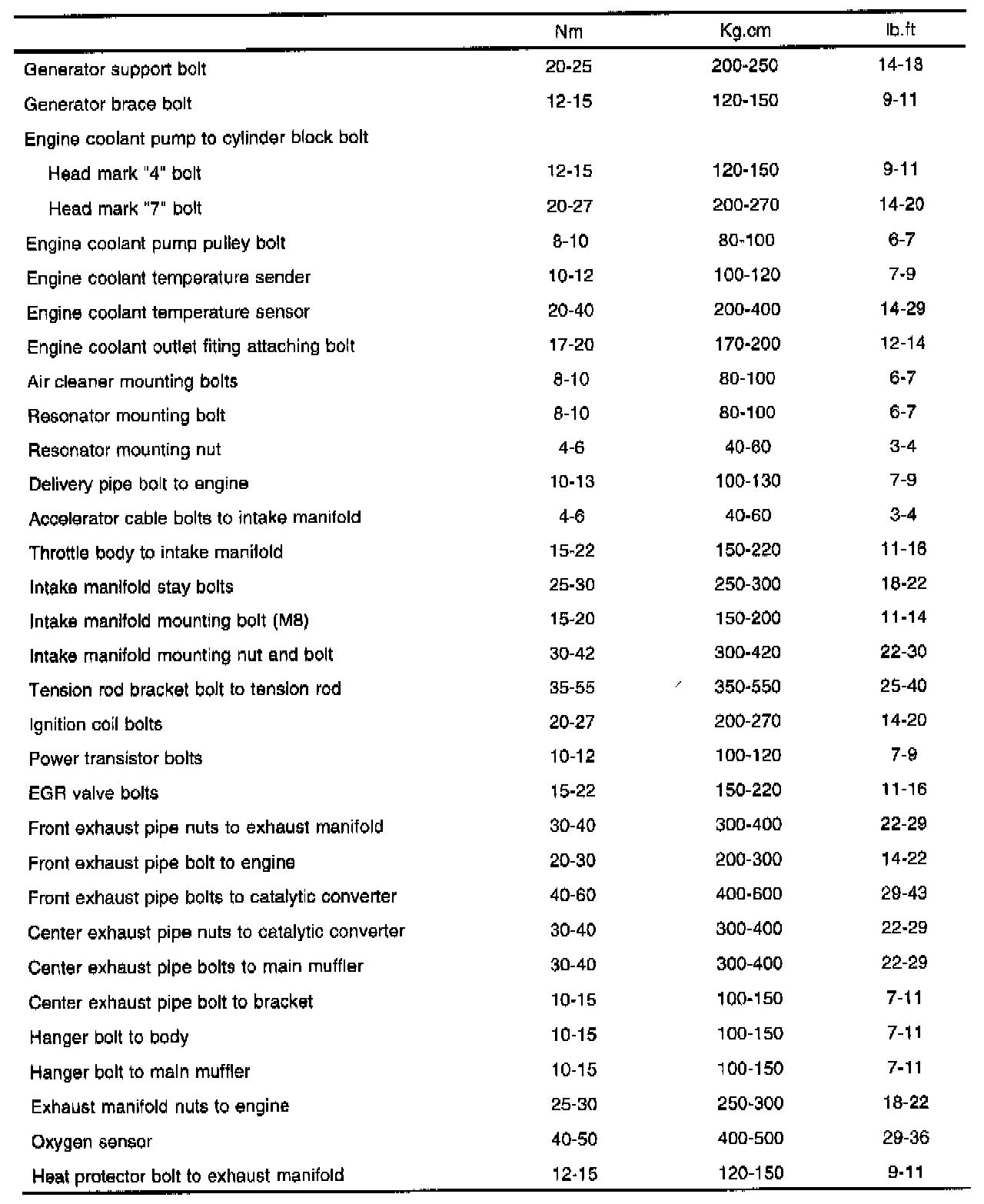

General Specifications

Tightening Sequence:

Bell Housing Bolts

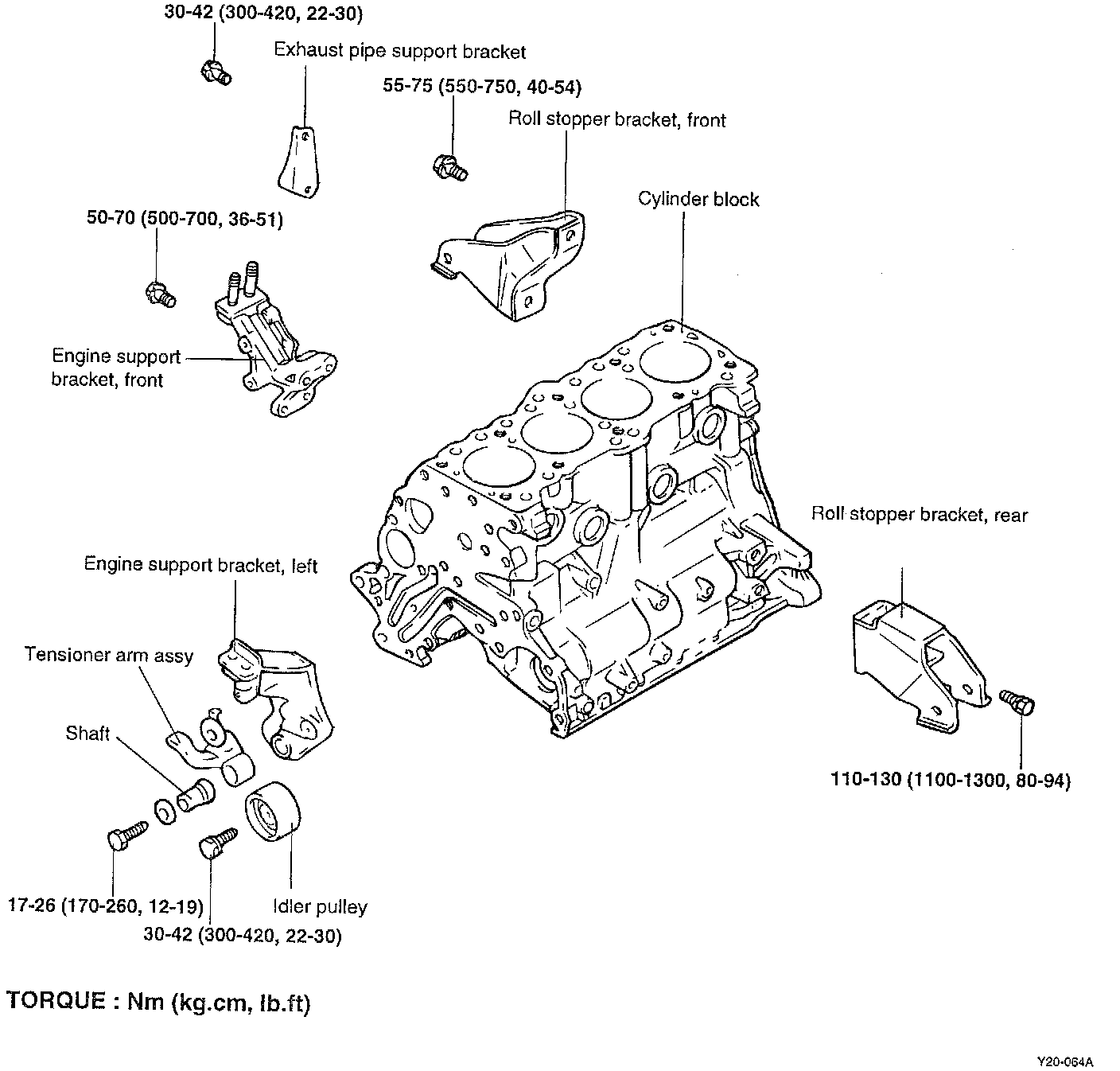

Support Brackets

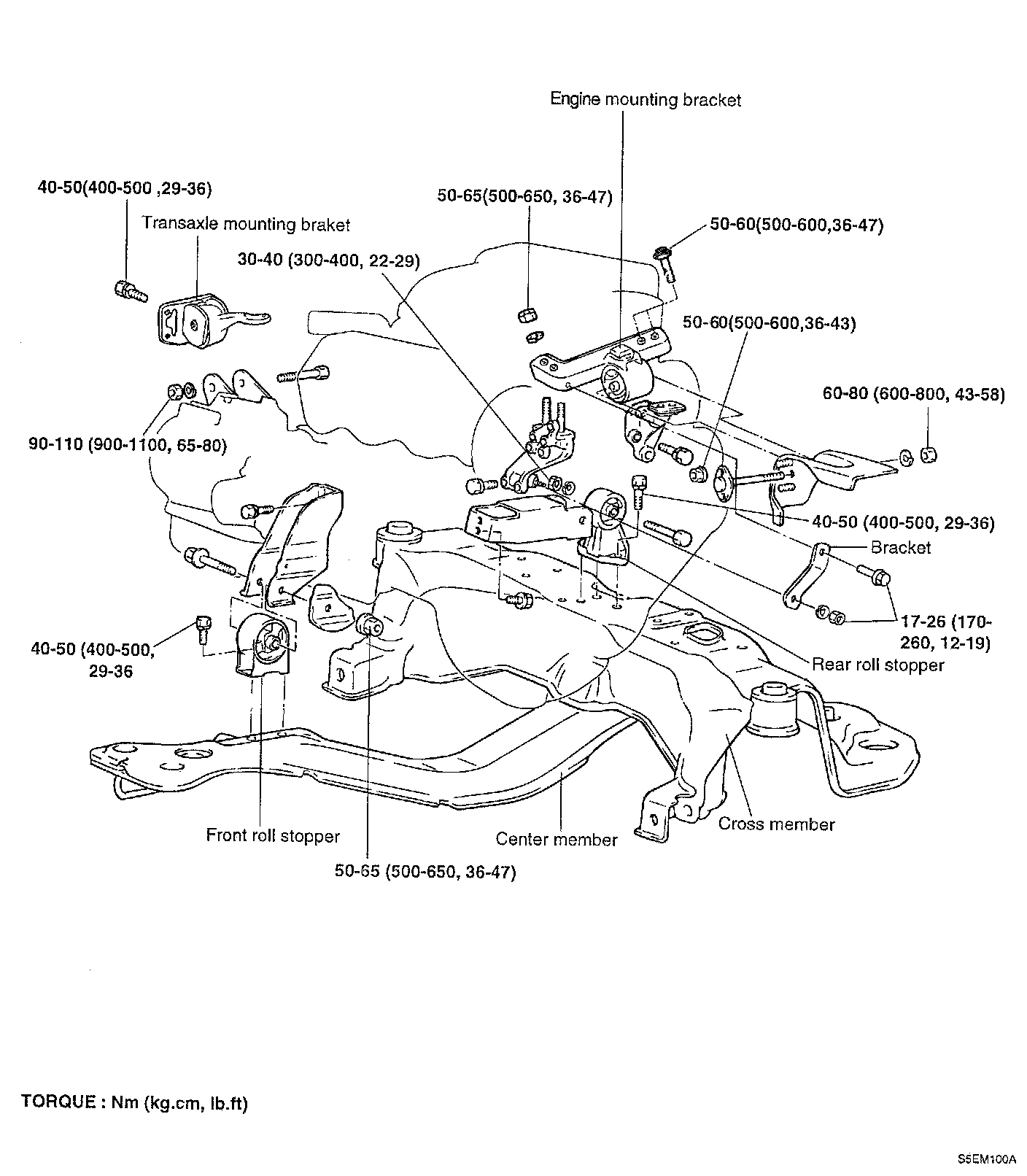

Mounting Brackets

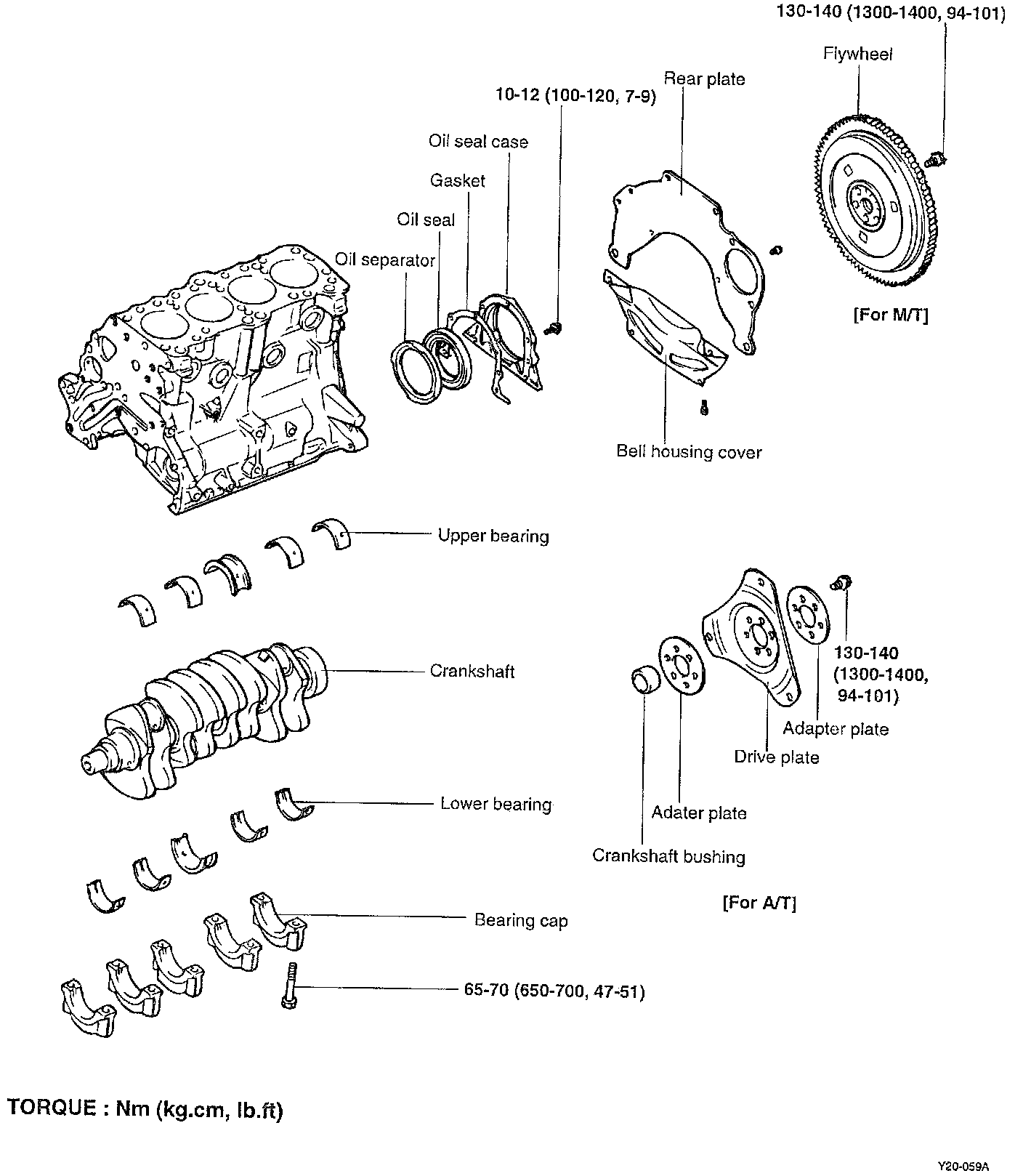

Flywheel/Drive Plate





Drive Plate-To-Converter Tightening Bolt 46-53 Nm (34-38 ft. lbs.)

Fig. 8 Camshaft Bearing Cap Tightening Sequence:

Camshaft Bearing Cap Bolt Tightening Sequence
Torque 19-21 Nm (190 - 210 kg.cm., 14 - 15 lb.ft.)
