Power Window Main Switch

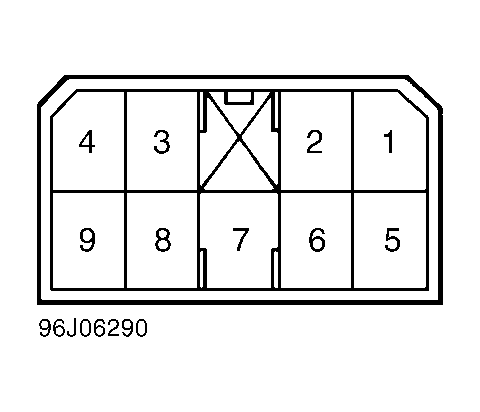

Remove main switch. Check continuity between specified terminals with switch in specified position. See MAIN SWITCH CONTINUITY . SeeFig 1 . If continuity is not as specified, replace main switch.
MAIN SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals | |
|---|---|---|
| Left Window | ||
| Up | 2 & 8; 4 & 9 | |
| Neutral | 2, 8 & 9 | |
| Down | 2 & 9; 4 & 8 | |
| Right Window | ||
| Up | 2 & 6; 4 & 7 | |
| Neutral | 2, 6 & 7 | |
| Down | 2 & 7; 4 & 6 | |
