Cruise Control Servo: Service and Repair

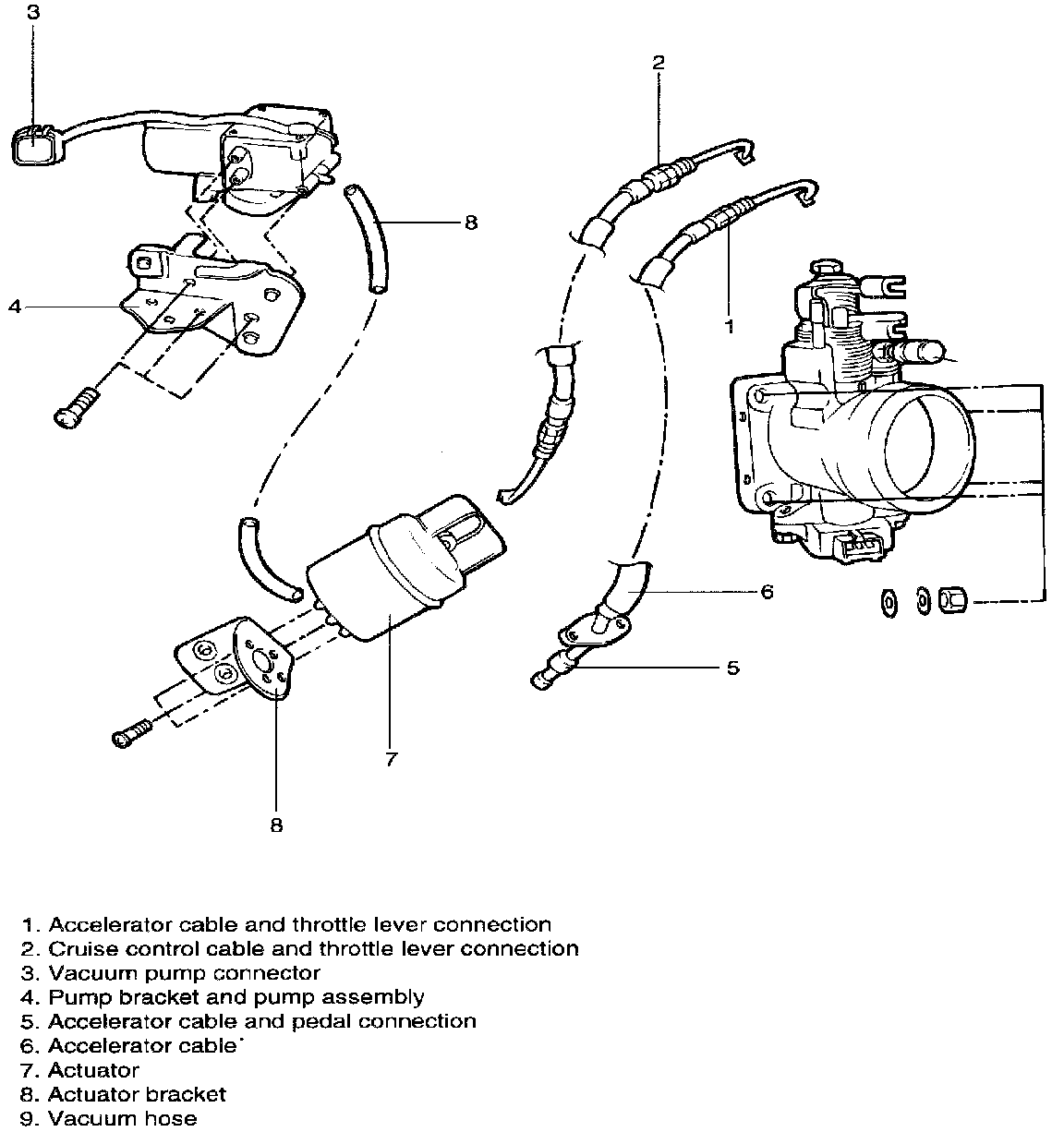

COMPONENTS

ACTUATOR AND VACUUM PUMP REMOVAL AND REPLACEMENT




1. Remove the battery negative terminal.
2. Disconnect the cruise control cable and throttle lever connection while turning throttle lever to the full open position.




3. Disconnect the vacuum pump connector and remove the vacuum pump assembly




4. Remove the actuator bracket and disconnect the vacuum hose.
5. Installation is the reverse order of removal.
