Component Tests

INSPECTION
1. Check the control cable for function and for damage.
2. Check the bushing for wear or damage.
3. Check the spring for damage or deterioration.

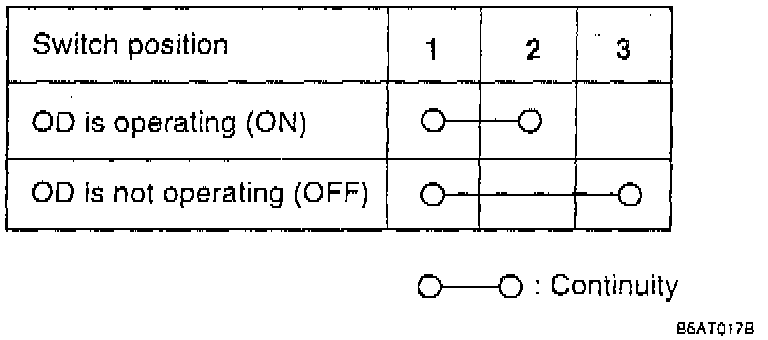

4. Check the overdrive switch for continuity.

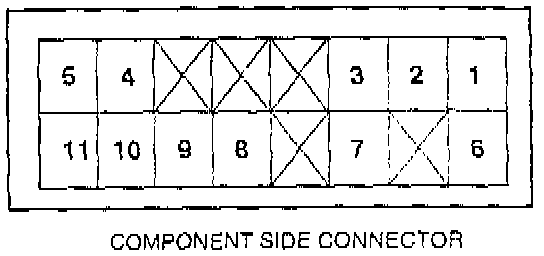

5. Check the movement of shift control solenoid by applying battery voltage at terminal 4 and 5.

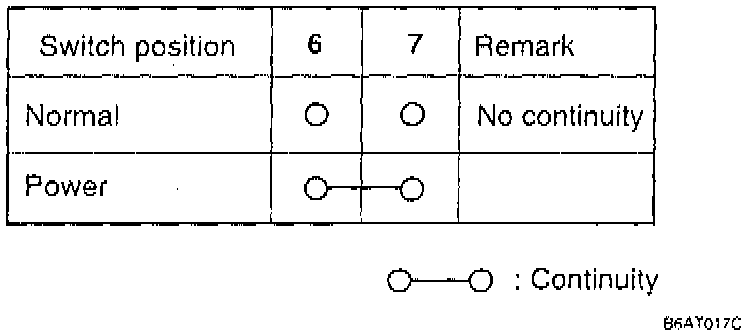

6. Check the PWR/NORM switch for continuity.
7. Check continuity between indicator light terminal 8 and 9.
8. Check continuity between parking position switch terminal 10 and 11 in free road.
9. Check no continuity between parking position switch terminal 10 and 11 while pressing the switch.
