Electronic Brake Control Module

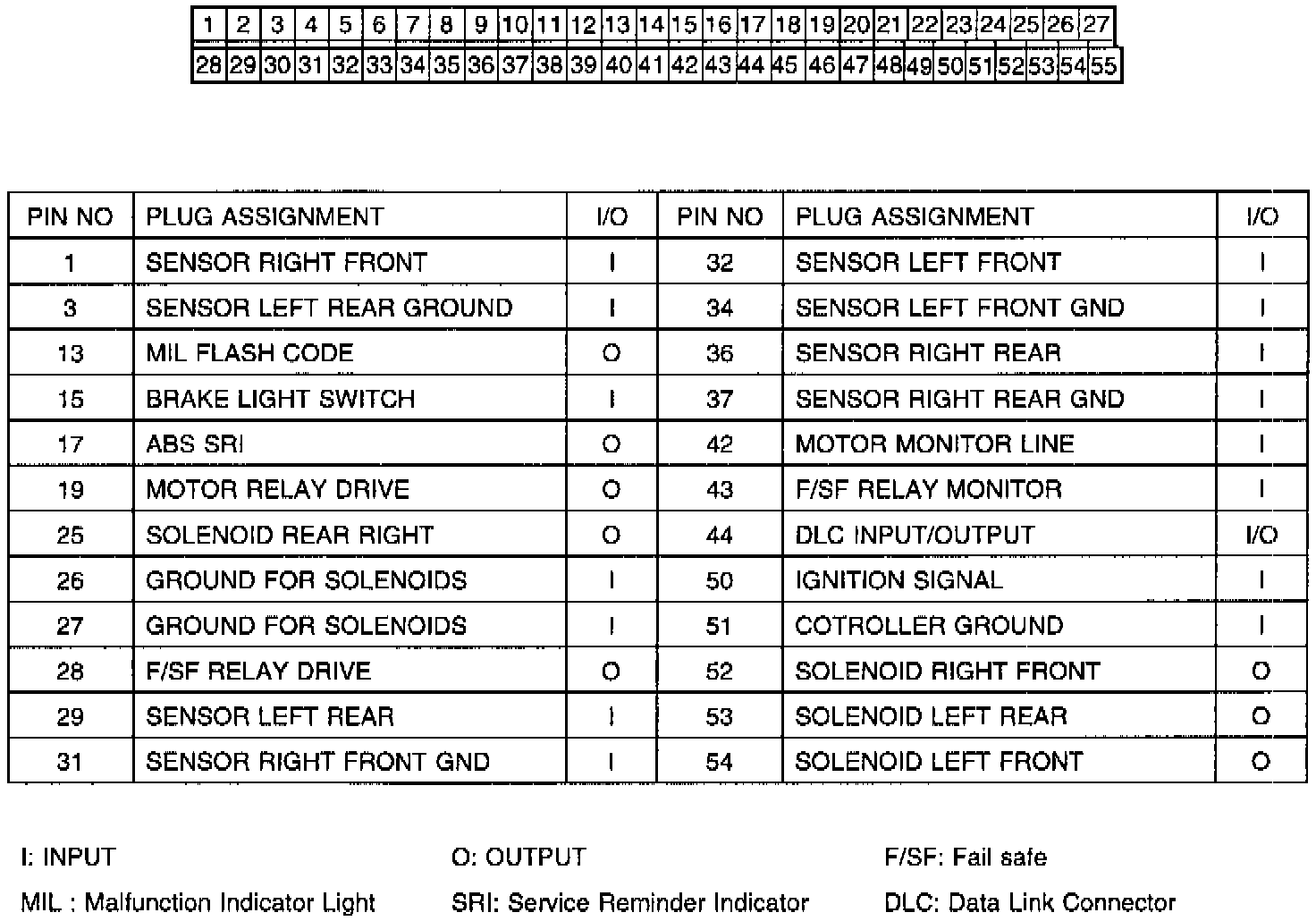

ABSCM Connector (M60, ABSCM Harness Side Connector):

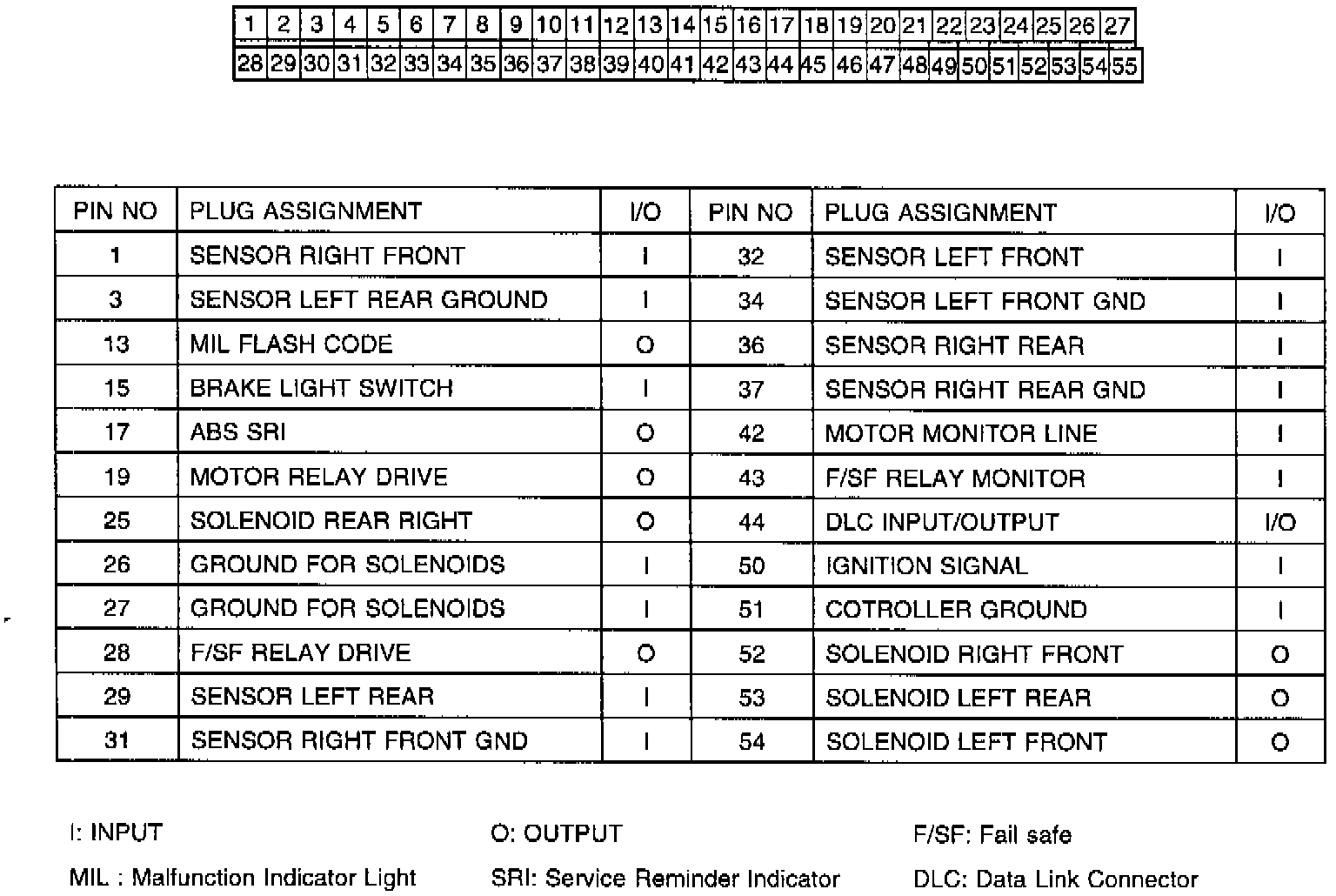

ABSCM Connector (M24, ABSCM Harness Side Connector):
