Control Module HVAC: Service and Repair

1. Remove the console upper cover plate.
2. Remove the console upper cover.
3. Remove the floor console.

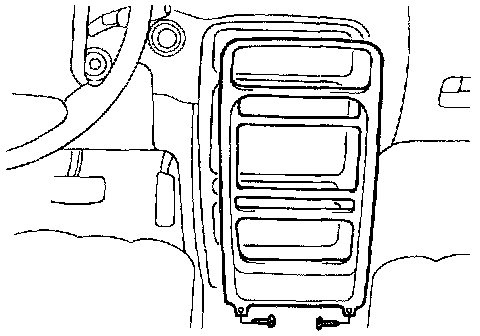

4. Remove the center facia panel.

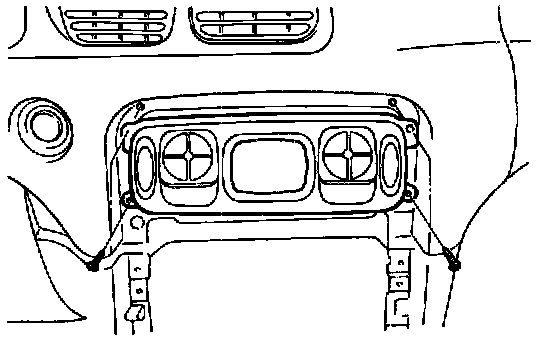

5. Remove the heater control panel.
6. Removal procedures are reverse to the installation.
