Symptom Cross Reference Chart

Before replacing or repairing air conditioning components, first determine if the malfunction is due to the refrigerant charge, air flow or compressor. The following diagnostic charts have been developed as a quick reference for determining the cause of the malfunction. If these charts do not satisfactorily describe the problem, refer to the appropriate component for a more detailed explanation. After correcting the malfunction, check the complete system to assure that performance is satisfactory.

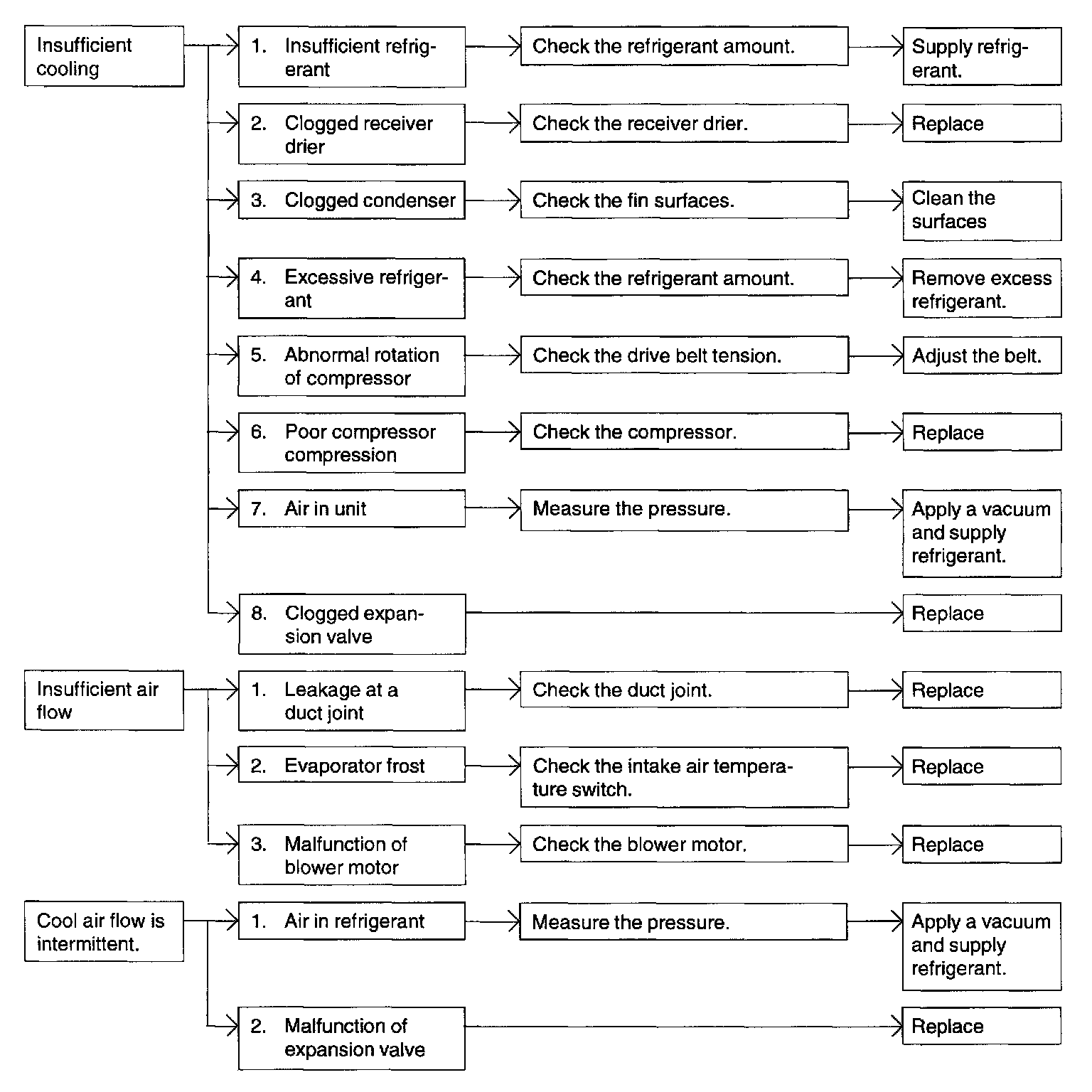

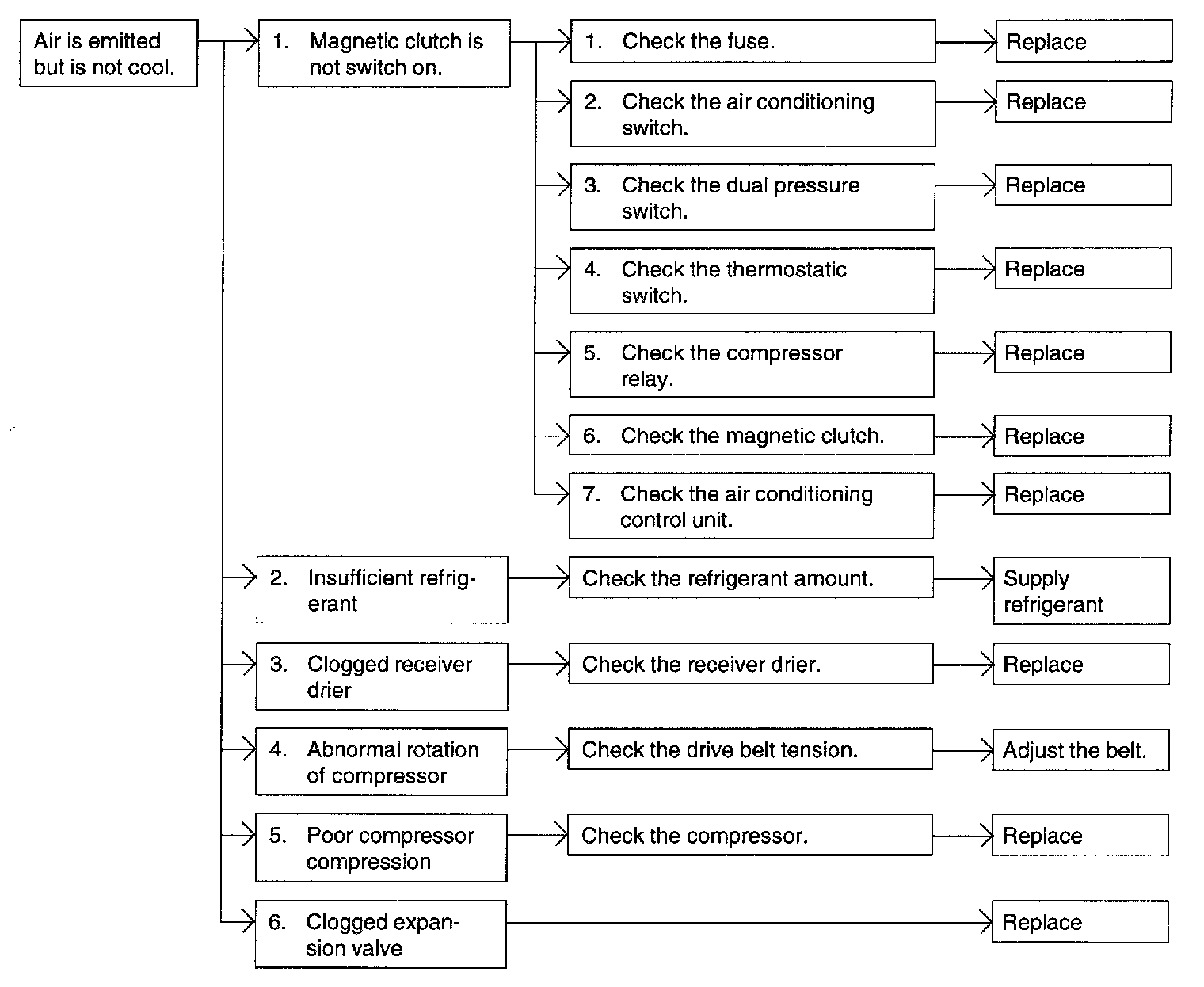

MALFUNCTION CAUSES AND REMEDIES (Numbers Indicate Checking/Inspection Order.)
