Air Flow Meter/Sensor: Locations

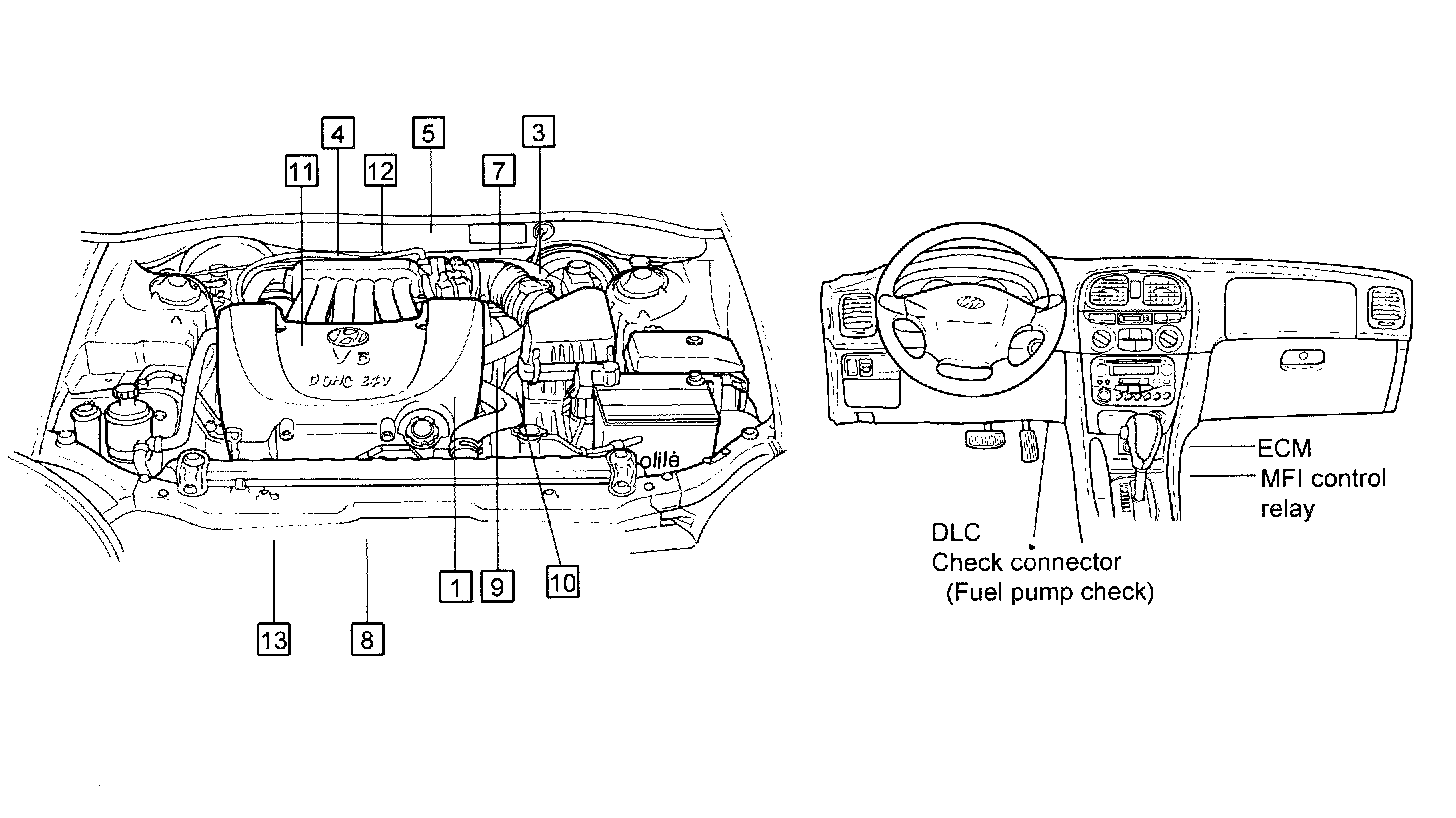

COMPONENTS
1. Engine coolant temperature (ECT) sensor
3. Mass air flow sensor (Hot film sensor)
5. Throttle position sensor (TPS)
7. Idle speed actuator (ISA)
8. Heated oxygen sensor (HO2S)
9. Camshaft position sensor (CMP)
10. Crankshaft position sensor (CKP)
11. Injector
12. EVAP. canister purge control solenoid valve (PCSV)
13. Knock sensor
14. Power steering oil pressure switch
17. Canister close valve
18. Fuel tank pressure sensor
