Cylinder Block Specifications

TIGHTENING TORQUE SPECIFICATIONS

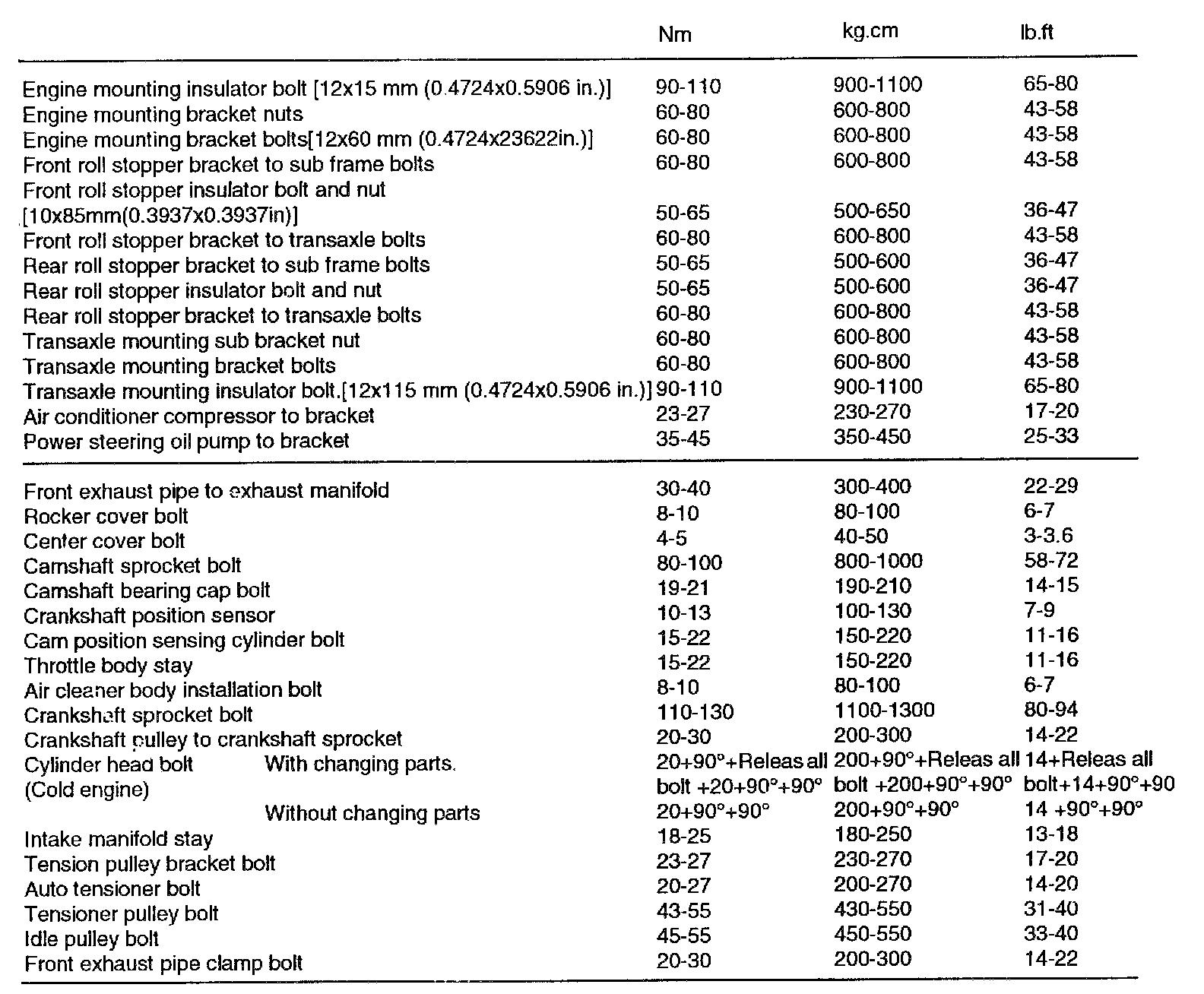

Part 1 Of 3:

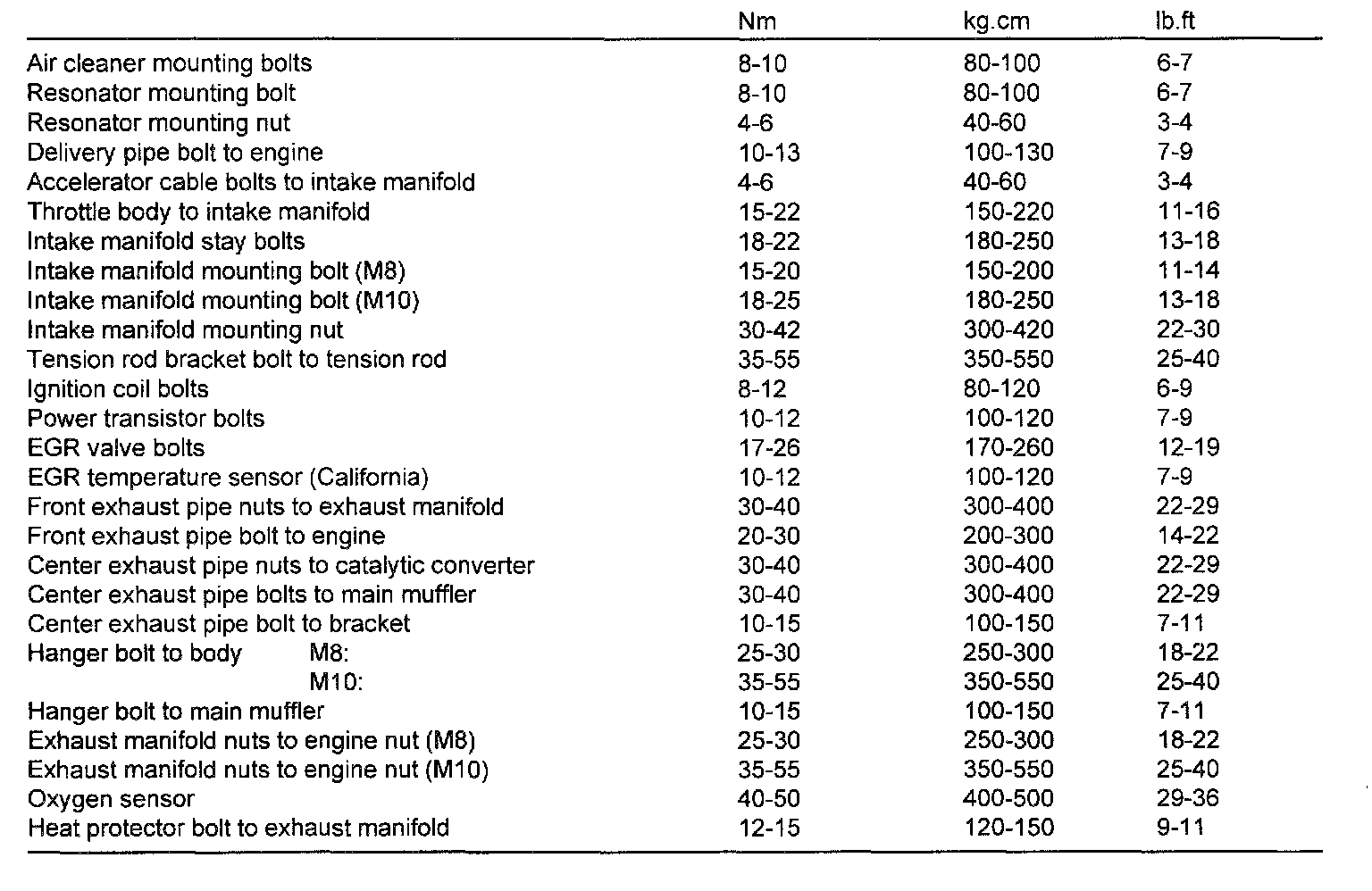

Part 2 Of 3:

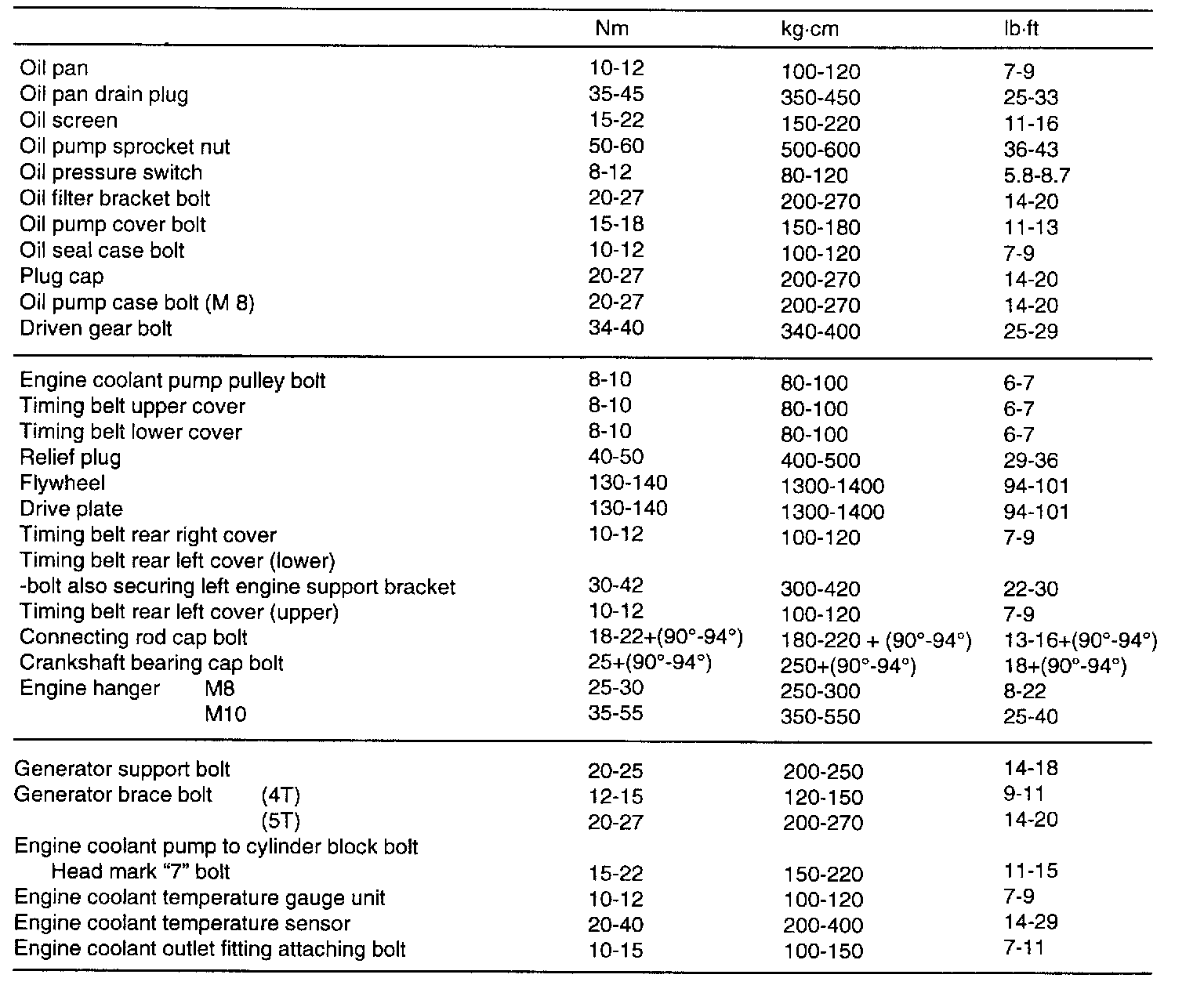

Part 3 Of 3:

MAIN BEARING CAP TIGHTENING SEQUENCE
Caps should be installed with arrow mark directed toward front of engine. Cap number must be correct.
Tightening torque:
Main bearing cap bolts: 25 Nm (250, 18 ft. lbs.) + (90°-94°)
