Power Window Sub-Switch
NOTE:
Accent does not have sub-switches.

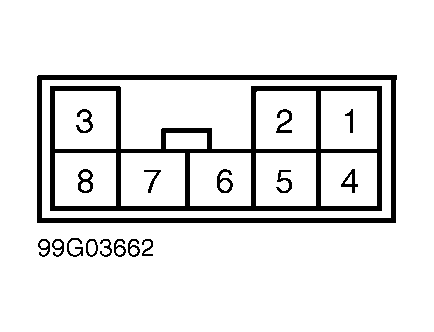

Remove sub-switch to be tested. Check continuity between specified terminals with switch in specified position. See SUB-SWITCH CONTINUITY table. See Fig 1 or Fig 2 . If continuity is not as specified, replace sub-switch.
SUB-SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Elantra | ||
| Up | 4 & 6; 2 & 7 | |
| Off | 4 & 6; 5 & 7 | |
| Down | 2 & 6; 5 & 7 | |
| Sonata | ||
| Up | 1 & 3; 4 & 8 | |
| Off | 1 & 3; 6 & 8 | |
| Down | 3 & 4; 6 & 8 | |
| Tiburon | ||
| Up | 3 & 7; 1 & 2 | |
| Off | 1, 3 & 7 | |
| Down | 2 & 3; 1 & 7 | |
