Power Door Lock Control Module: Testing and Inspection

1. Remove the door lock control module.

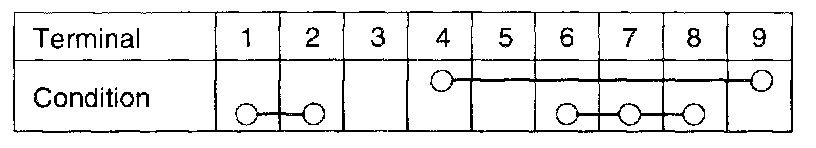

2. Check for continuity between the terminals. If continuity is not as specified, replace the door lock control module.
