Multi-Function Switch

With the multifunction switch in each position, make sure that continuity exists between terminals below. If continuity is not as specified, replace the multifunction switch.

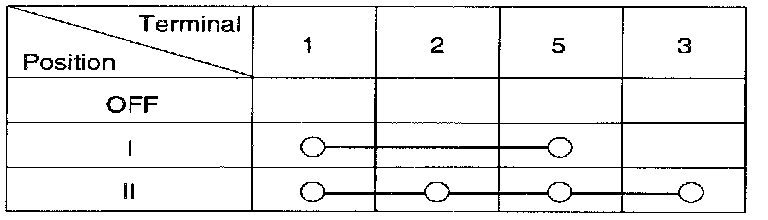

Lighting switch (Connector No.: M26-3)

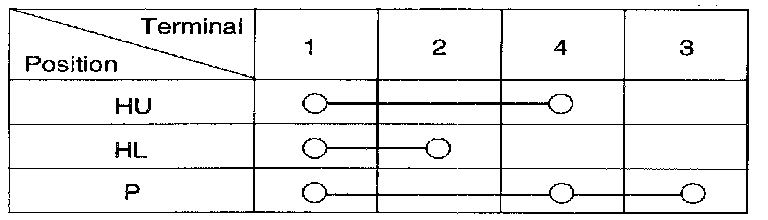

Dimmer and passing switch (Connector No.: M26-2)
HU : Head lamp upper beam
HL : Head lamp lower beam
P : Head lamp switch passing

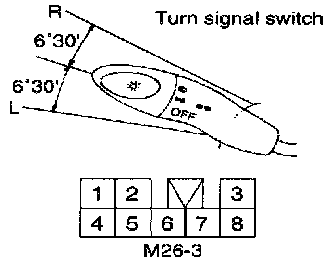

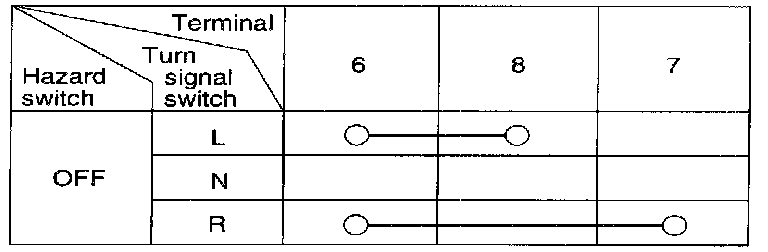

Turn signal switch (Connector No.: M26-3)
HU : Head lamp upper beam
HL : Head lamp lower beam
P : Head lamp switch passing

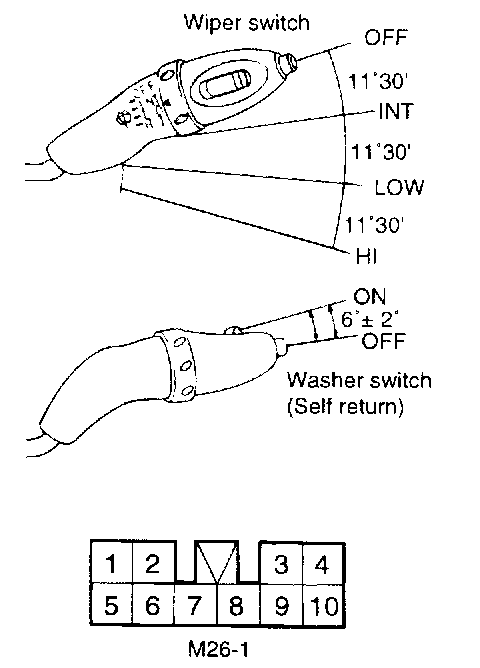

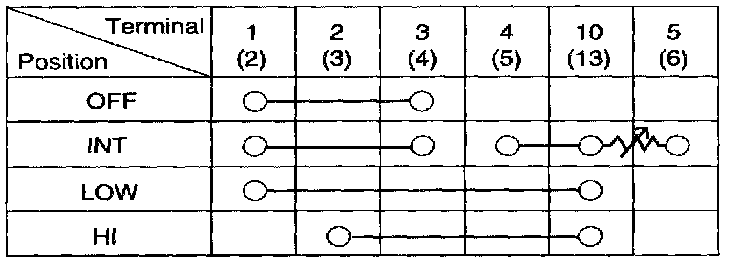

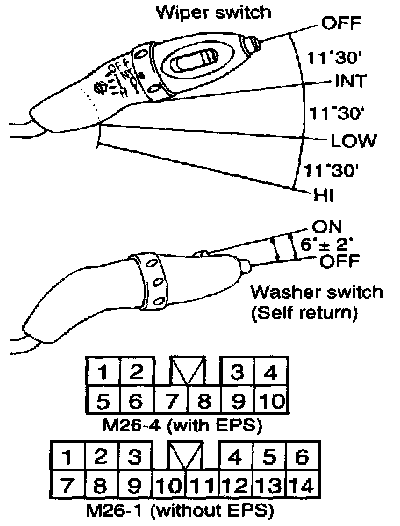

Wiper switch(Connector No.:M26-1-without EPS)(M26-4-with EPS)

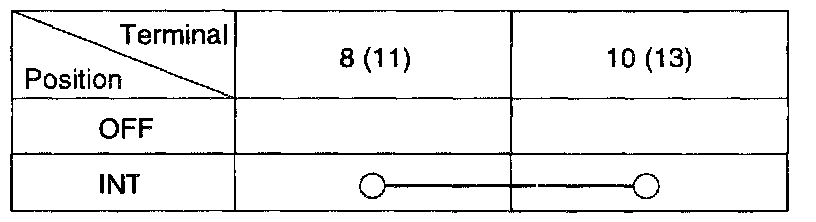

Washer switch (Connector No.: M26-1(M26-4))

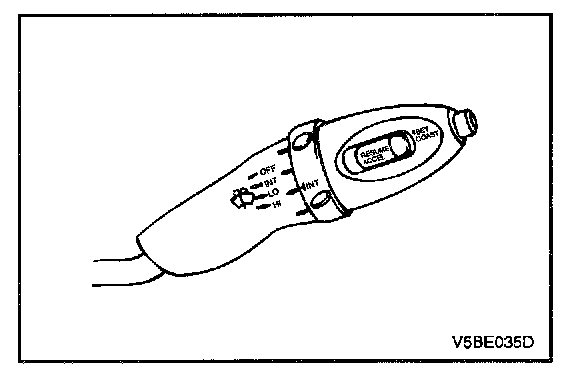

Cruise Control Switch:

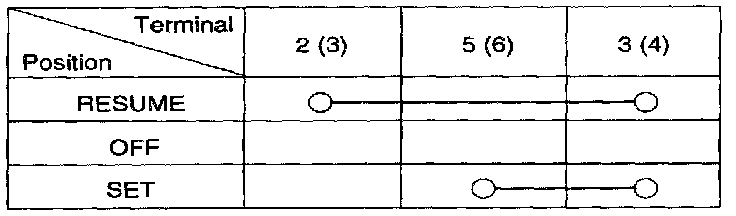

Cruise control switch (Connector No.: M26-1(M26-4))
