Key to Wiring Diagrams and Symbol I.D.

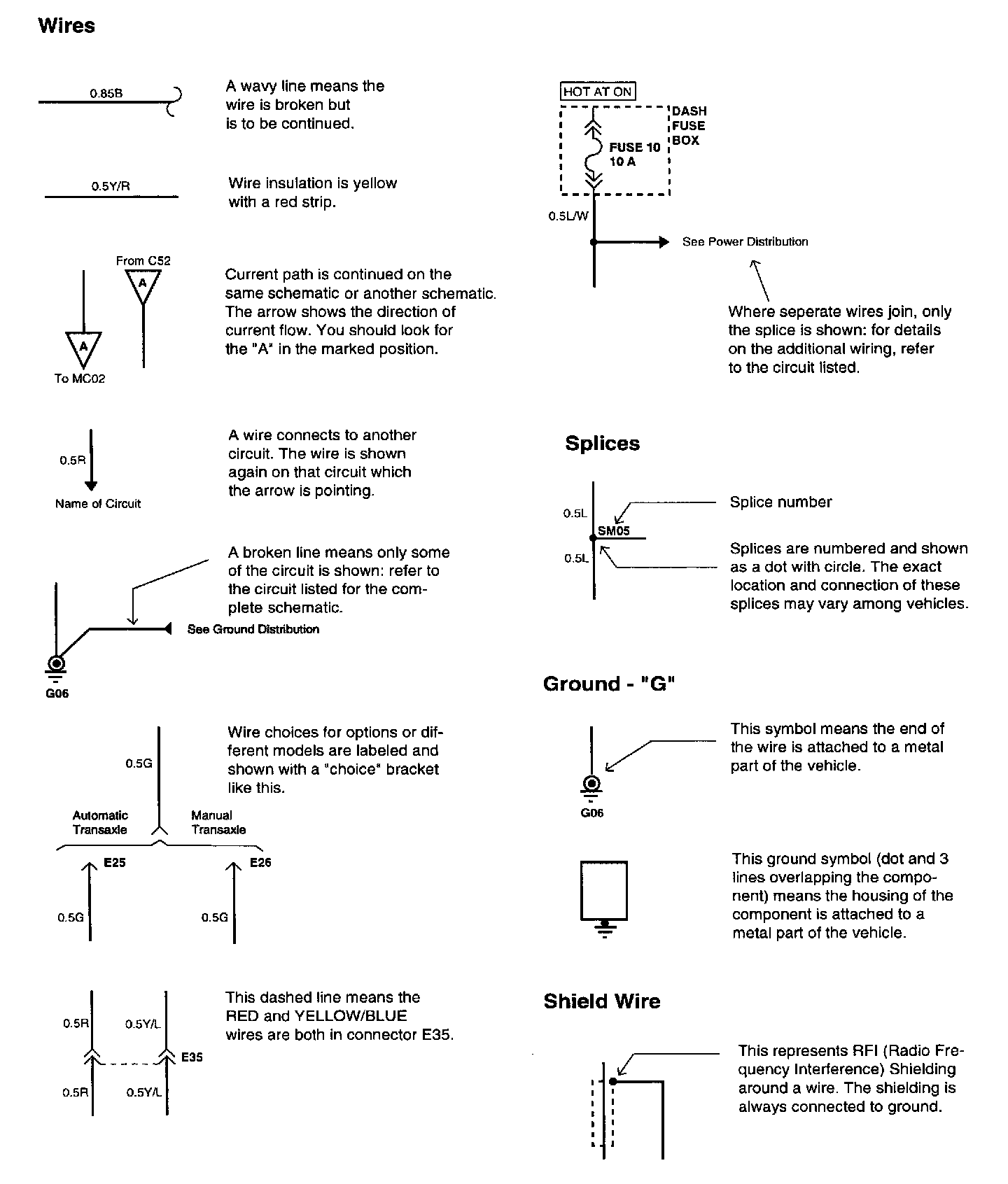

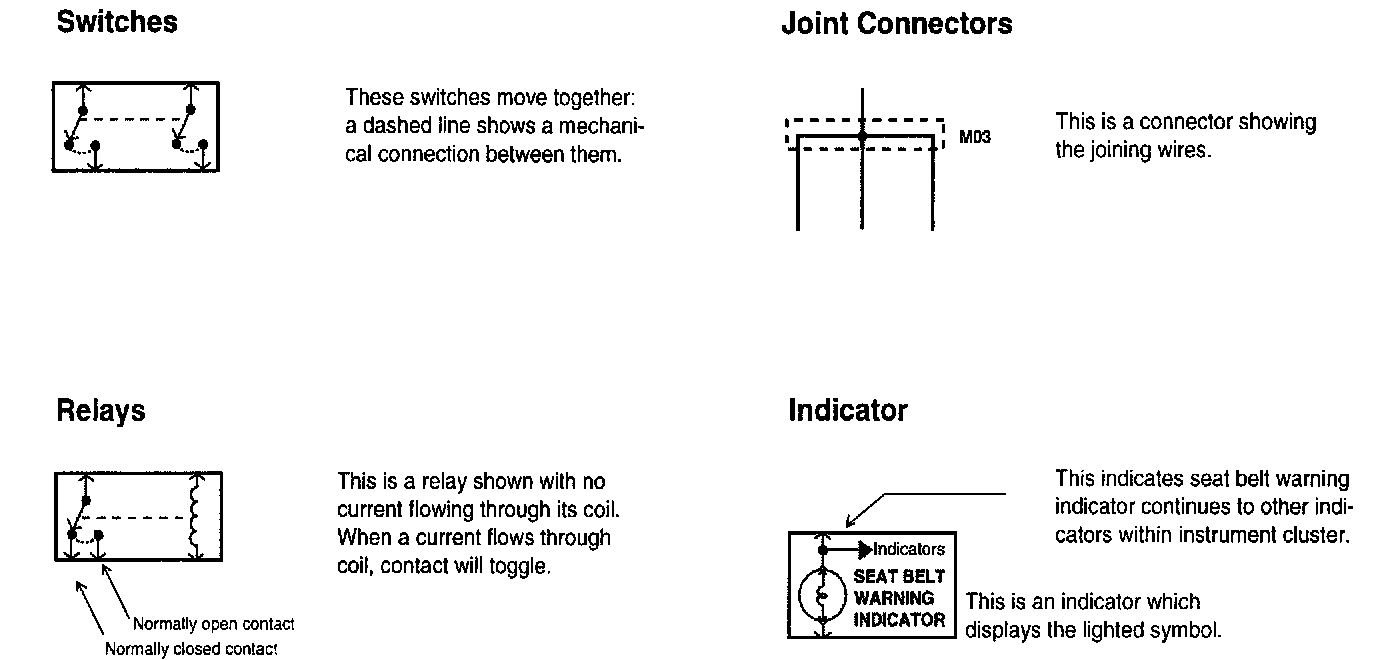

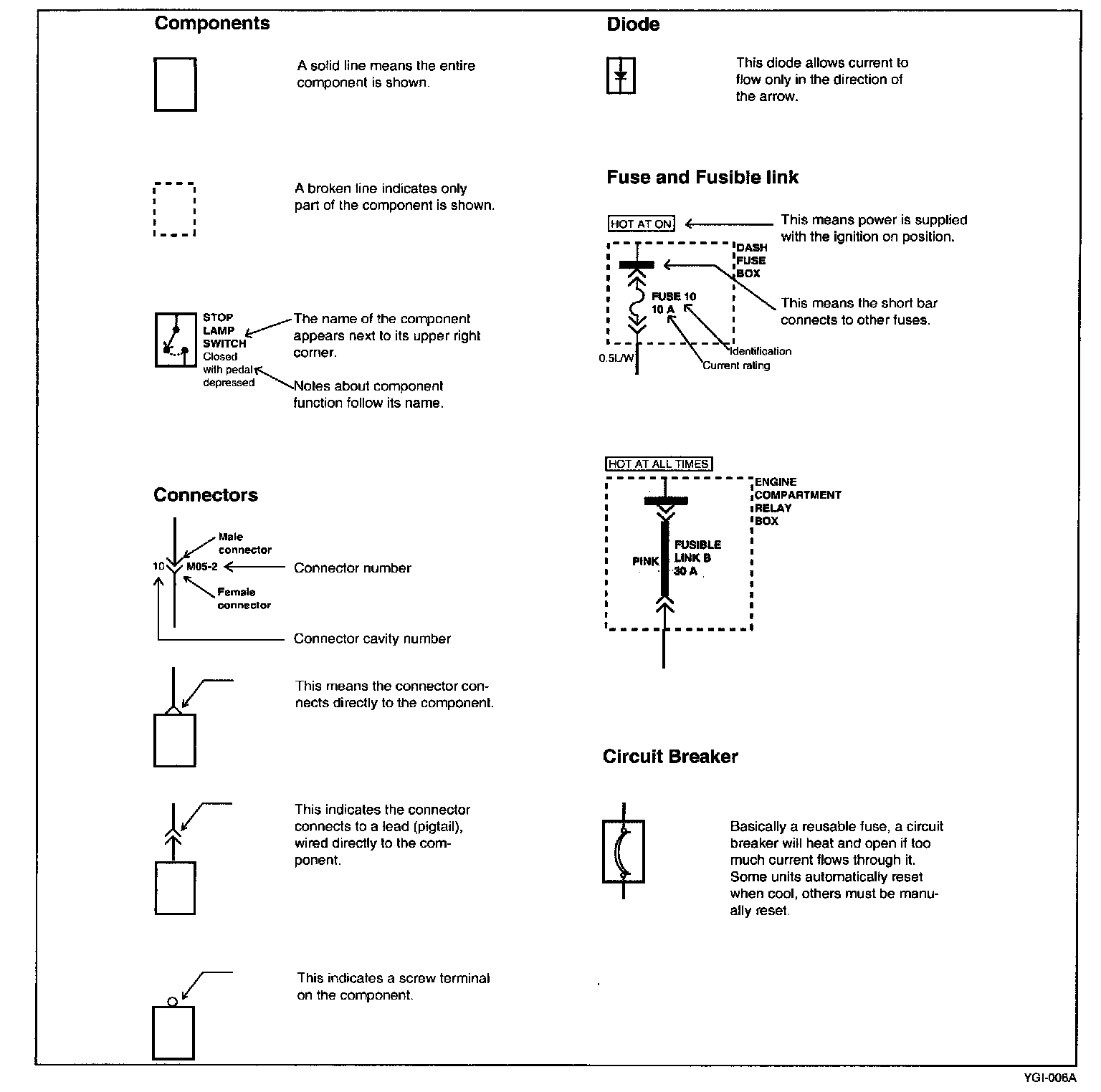

Symbols (Part 1 Of 3):














The symbols and the abbreviations explained here are used throughout the database.
