Main Relay (Computer/Fuel System): Testing and Inspection

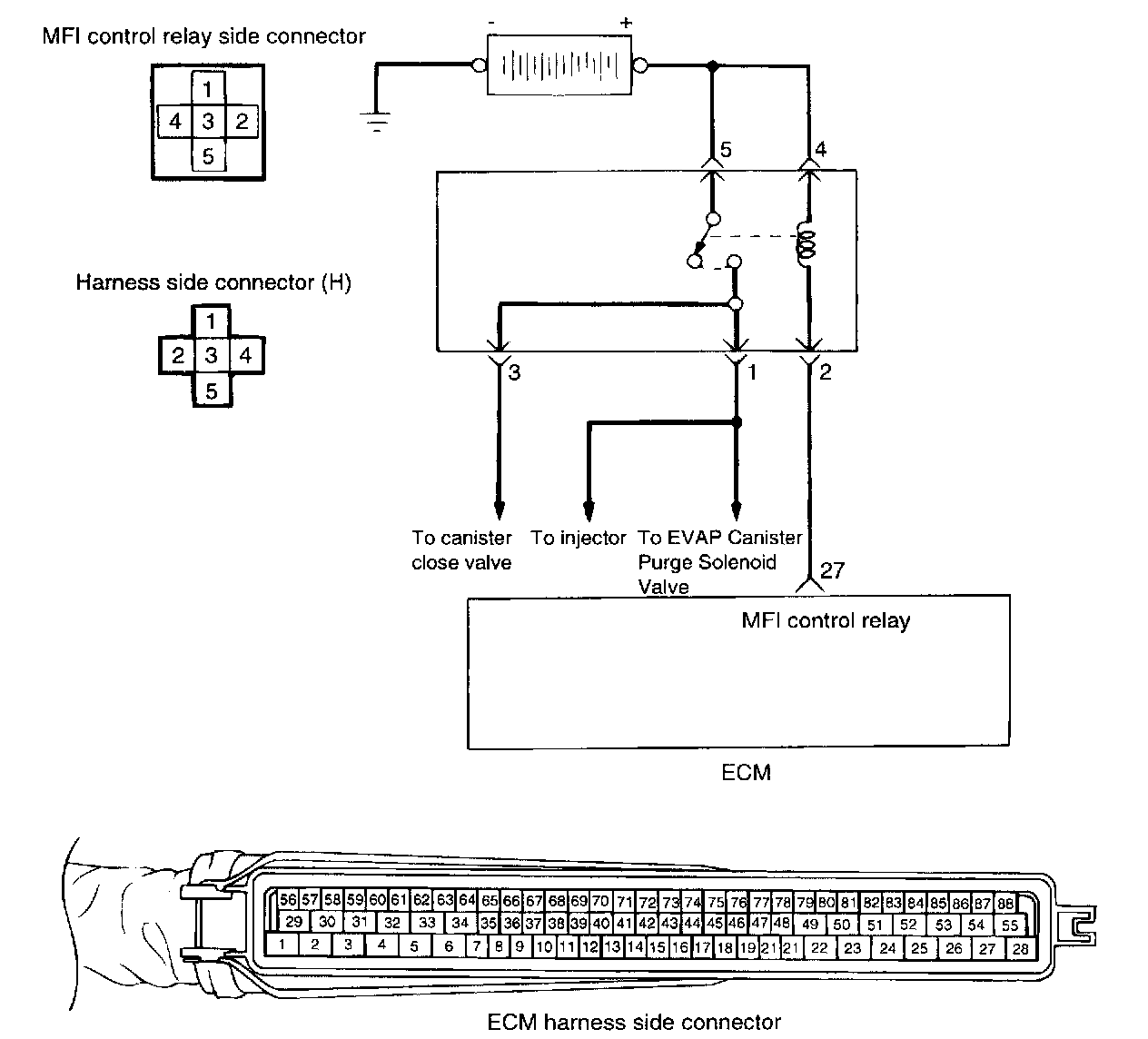

CIRCUIT DIAGRAM

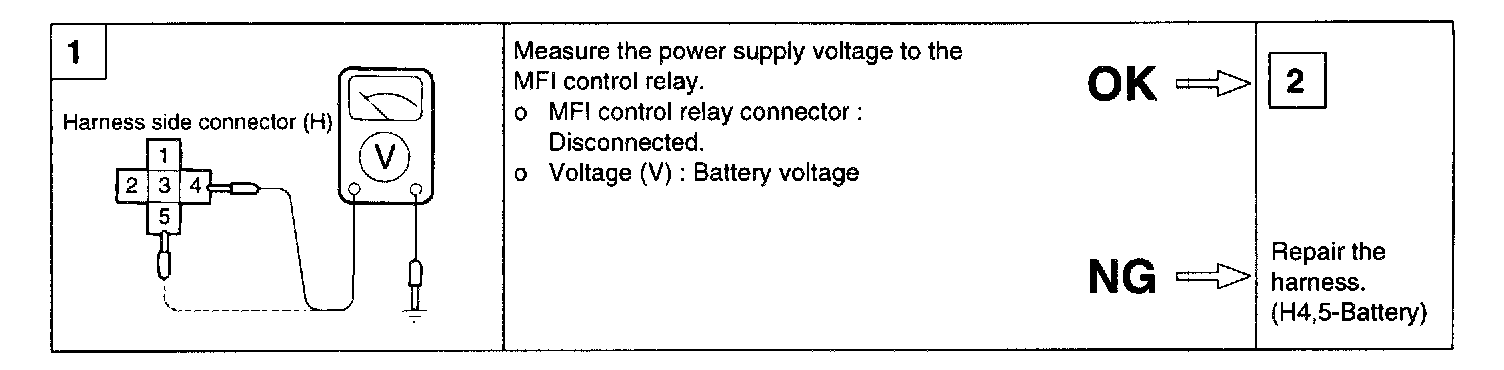

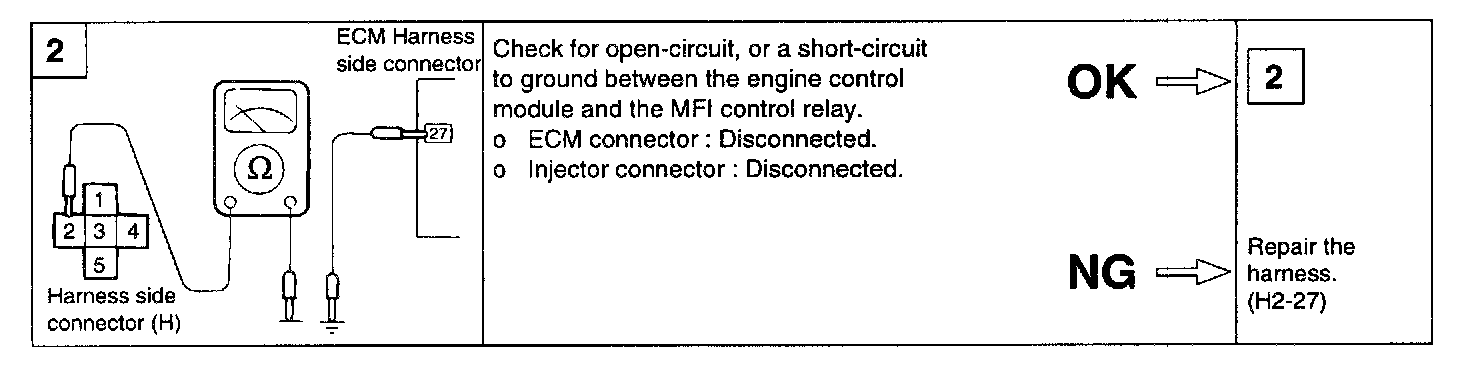

HARNESS INSPECTION PROCESSOR

MFI CONTROL RELAY INSPECTION

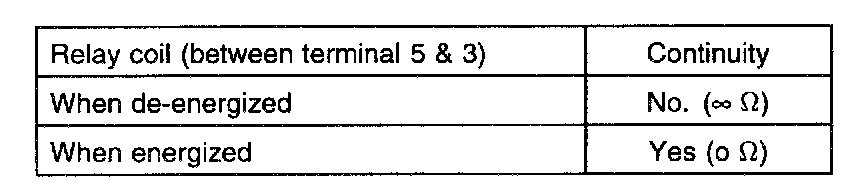

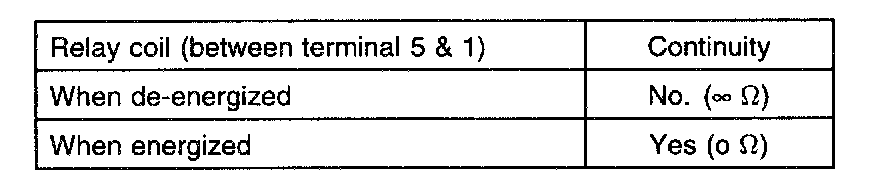

1. Check continuity of relay contacts between terminal 4 (+) and 2 (-).
2. If faulty, replace the MFI control relay.
Tightening Torque
MFI control relay 7 - 11 Nm (7 - 110 kg.cm, 5.2 - 8.1 lb.ft)
