Control System Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

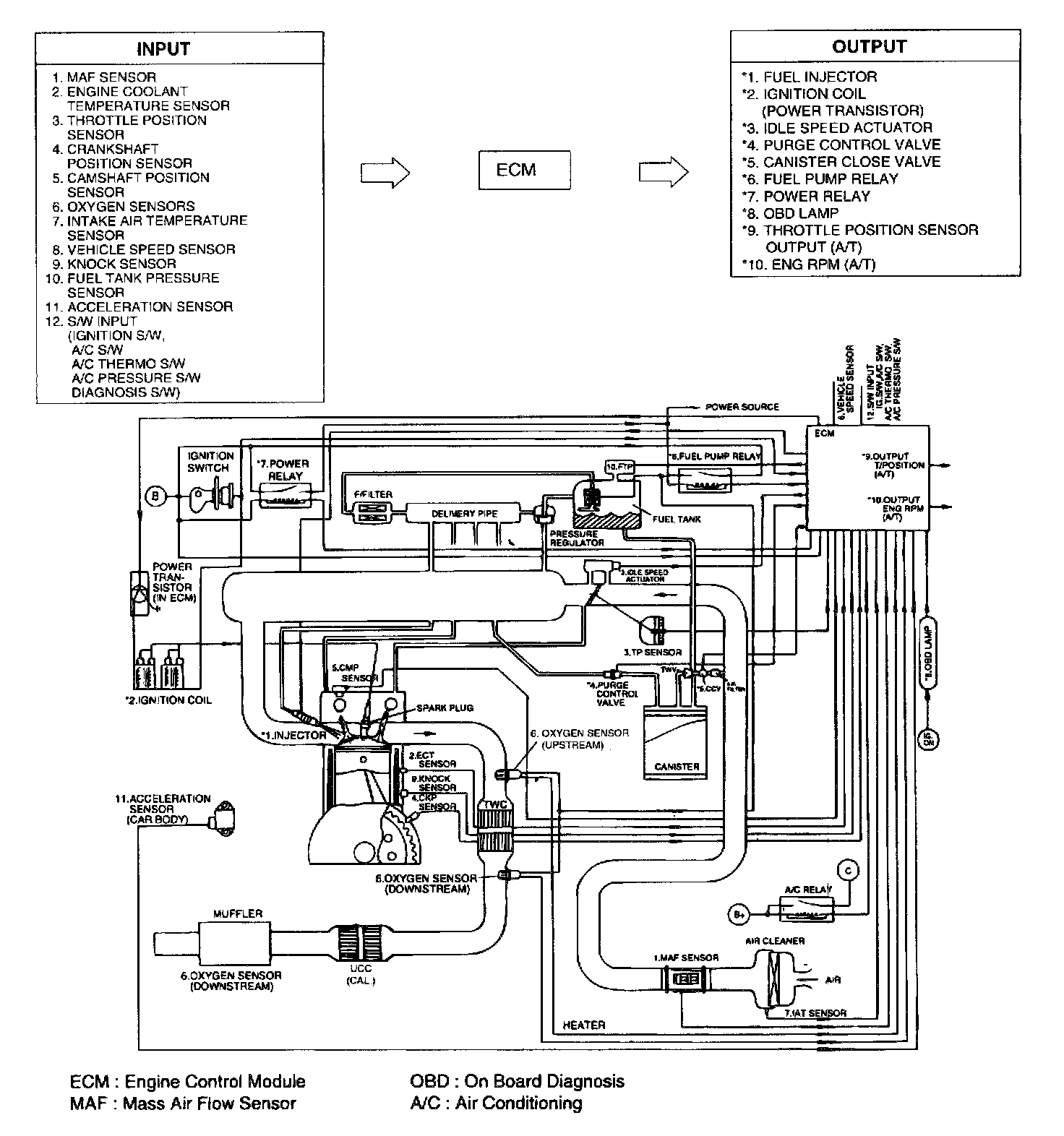

Control System Schematic
